System Specifications

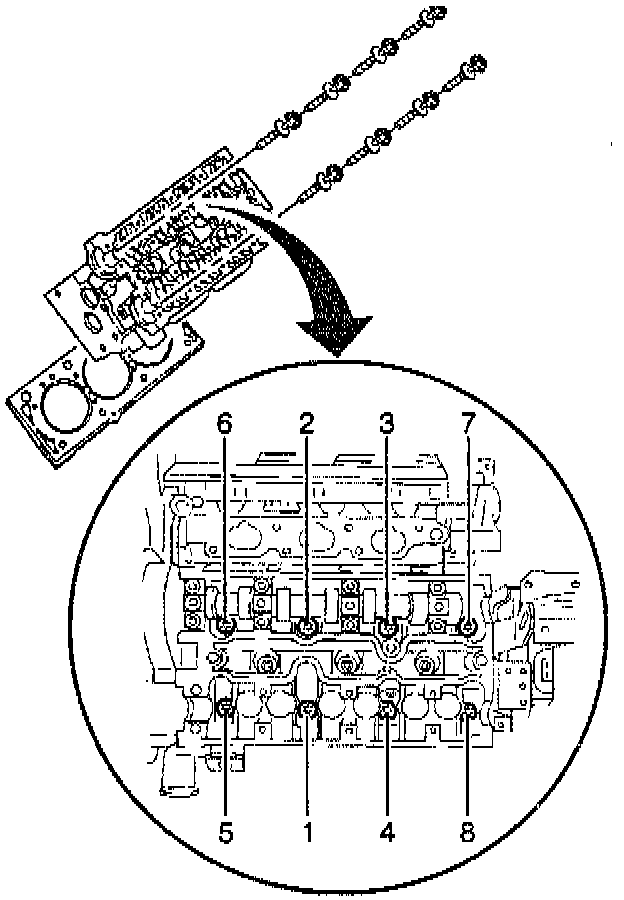

Cylinder Head Bolt Torque and SequenceImportant: Use new
cylinder head bolts. The required tightening method stretches the bolts, therefore the cylinder head bolts are not reusable.
Tighten the
cylinder head bolts in the proper tightening sequence and in five passes.
Pass 1
25 N.m ( 18 lb. ft. )Pass 2
90°Pass 3
90°Pass 4
90°Pass 5
15°
