System Specifications

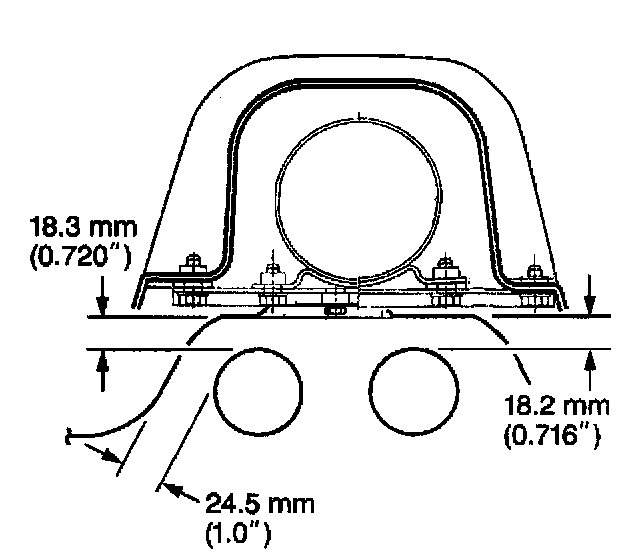

Exhaust Pipe Clearances
Exhaust pipe clearances are measured at the points and with the tolerances shown.

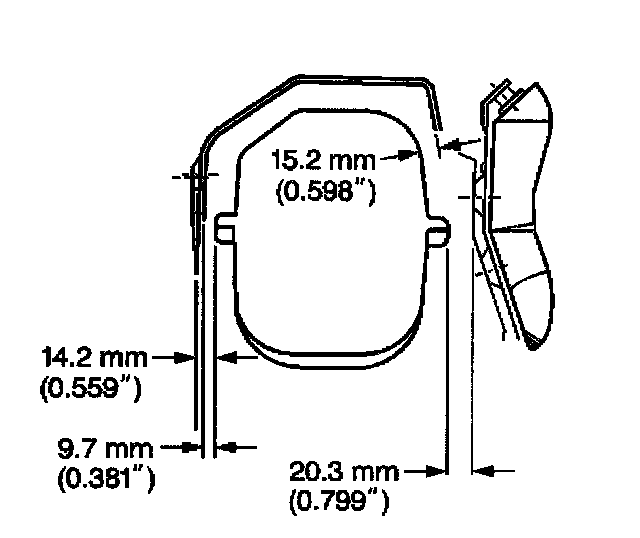

Exhaust Resonator Clearances
Exhaust resonator clearances are measured at the points and with the tolerances shown.

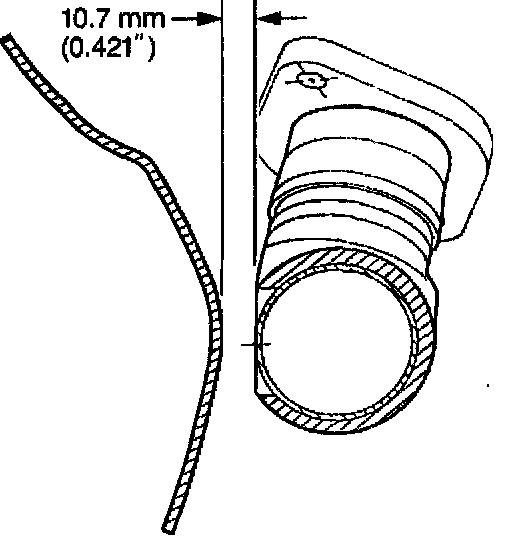

Catalytic Converter Clearances
Catalytic converter clearances are measured at the points and with the tolerances shown.

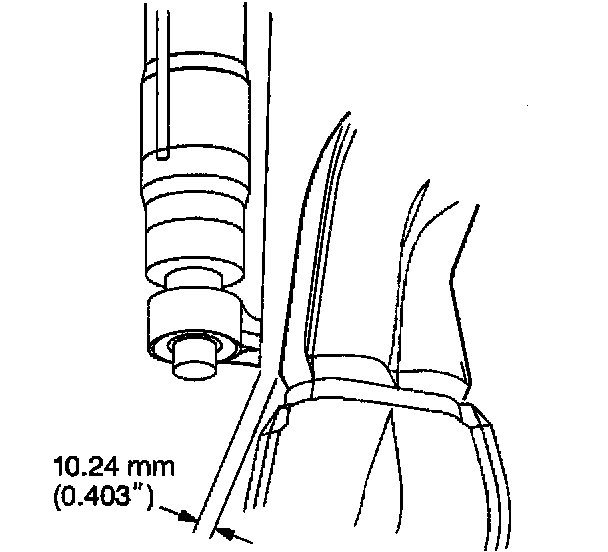

Catalytic Converter to Pitman Arm Clearance
The catalytic converter to the pitman arm clearance is measured at the point and the tolerance shown.
