Power Window Switch: Service and Repair

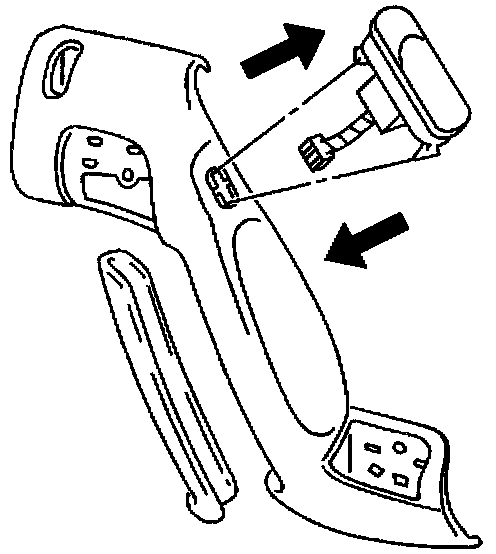

REMOVAL PROCEDURERear Door Power Window Switch Replacement: Removal Procedure:
1.
Remove the assist handle and cover.
2.
Disconnect the
power window switch connector.
3.
Snap out the switch.

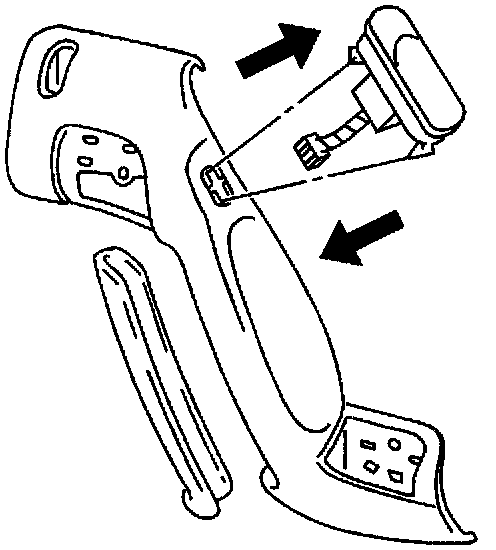

INSTALLATION PROCEDURERear Door Power Window Switch Replacement: Installation Procedure:
1.
Snap on the switch.
2.
Connect the switch connector.
3.
Install the assist handle and cover.
