Cruise Release Switch Replacement




REMOVAL PROCEDURE
1. Remove the left insulator panel.

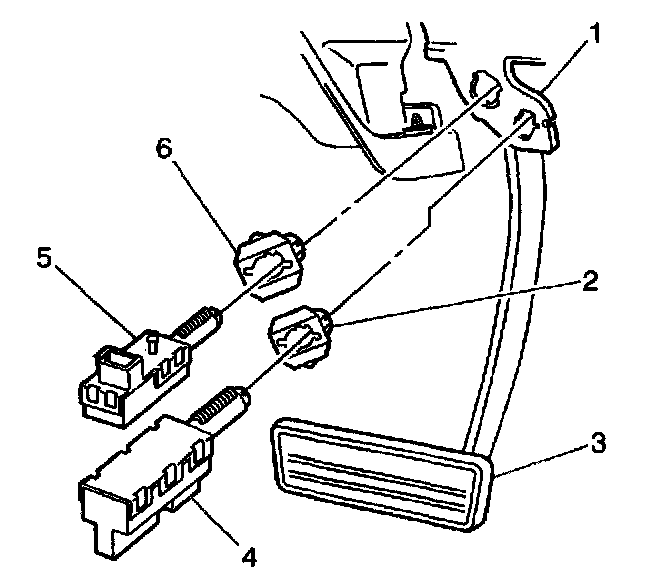

2. Twist the upper switch (5) counter-clockwise and remove.
3. Disconnect the upper switch electrical connector.

INSTALLATION PROCEDURE

NOTE: Proper stoplamp switch adjustment is essential. Improper stoplamp switch adjustment could cause brake drag and excessive brake lining wear.

1. Connect the upper switch (5) electrical connector.
2. Install the upper switch (5) into the upper retainer. Face the switch connector to the 6 o'clock position.
3. Adjust the switch. Refer to Cruise Release Switch Adjustment. Adjustments
4. Install the left insulator panel.
