Control Module HVAC: Service and Repair

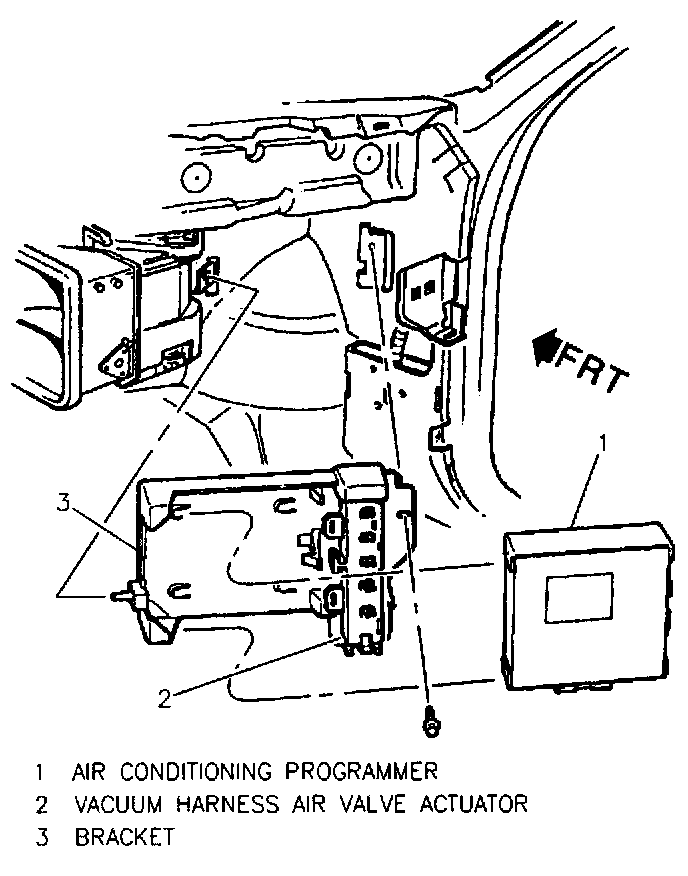

Heater And A/C Programmer And Vacuum Harness:

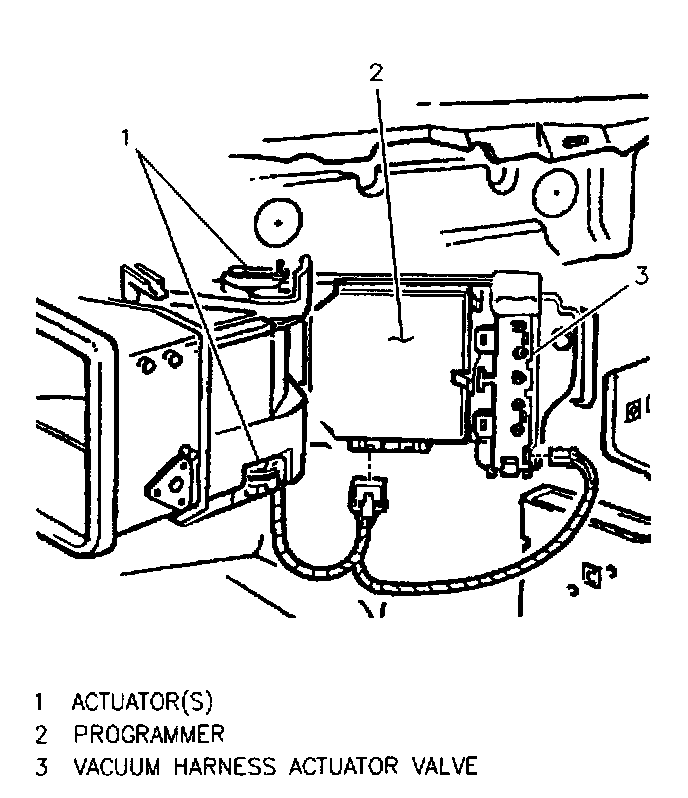

Heater And A/C Programmer And Actuators:






Remove or Disconnect

1. Negative battery cable.
2. Right sound insulator.
3. Instrument panel compartment.
4. Vacuum and electrical connectors from programmer.
5. Programmer from vehicle.

Install or Connect

1. Programmer to vehicle.
2. Vacuum and electrical connectors to programmer.
3. Right sound insulator.
4. Instrument panel compartment.
5. Negative battery cable.
