Lumbar Component Replacement - Power (Module Replacement (AL2))

REMOVAL PROCEDURE

Lumbar Component Replacement - Power (Module Replacement (AL2)): Removal Procedure:




1. Remove the seat back trim cover.
2. Disconnect electrical connection from the module.

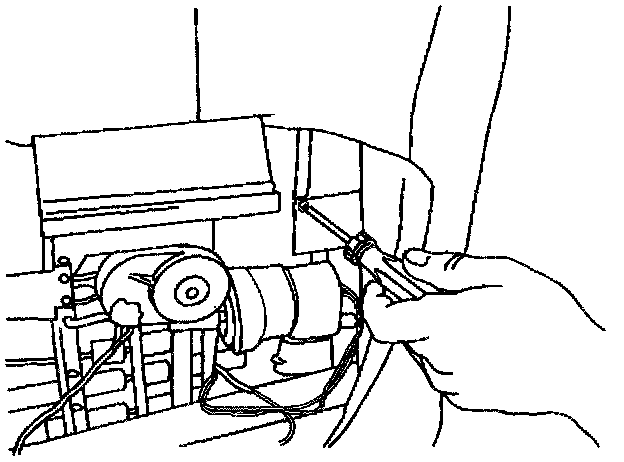

3. Drill out the rivets retaining module to the bracket.

INSTALLATION PROCEDURE

Lumbar Component Replacement - Power (Module Replacement (AL2)): Installation Procedure:

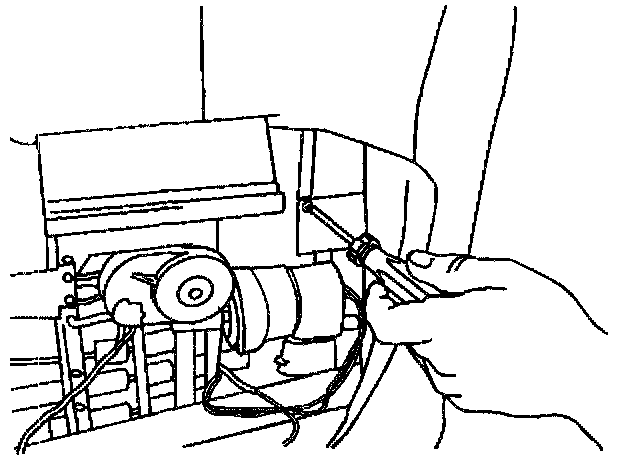

1. Install module to the bracket with self-tapping fasteners or rivets.
2. Connect the electrical connector.
3. Install the seat back trim cover.
