Sun Load Sensor

REMOVAL PROCEDURE

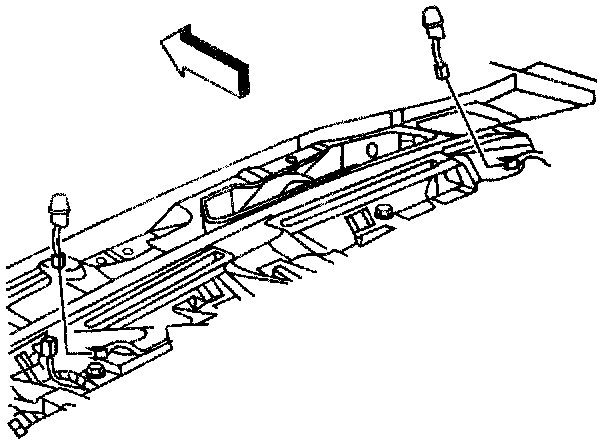

Sunload and Twilight Sentinel Sensor Replacement (LHD): Removal Procedure:




1. Disable the Supplemental Inflatable Restraint (SIR) system. Refer to Disabling the SIR System in SIR.
2. Remove the defroster grill.
3. Remove the sensors from defroster grill by twisting 1/4 turn.
4. Disconnect the electrical connector from the twilight sensor or solar sensor.

INSTALLATION PROCEDURE

Sunload and Twilight Sentinel Sensor Replacement (LHD): Installation Procedure:




1. Connect the electrical connector to the twilight sensor or solar sensor
2. Install the sensors to the defroster grill by twisting 1/4 turn.
3. Install the defroster grill.
4. Enable the SIR. Refer to Enabling the SIR System in SIR.
