Body Control Module Replacement (Dash Integration Module DIM)

REMOVAL PROCEDURE

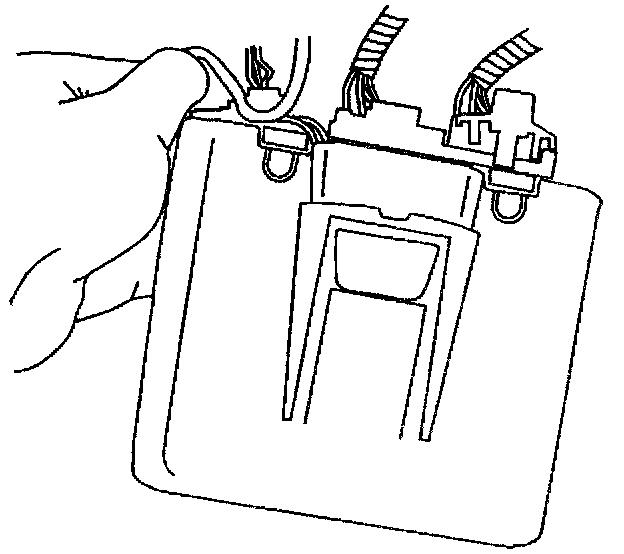

Body Control Module Replacement (Dash Integration Module DIM): Removal Procedure:

1. Remove right sound insulator.
2. Slide the Dash Integration Module (DIM) from bracket on cowl next to ACM.

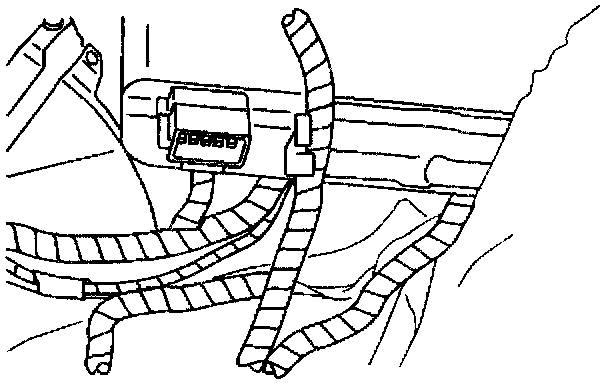

Body Control Module Replacement (Dash Integration Module DIM): Removal Procedure:

3. Remove the electrical connectors as necessary.

INSTALLATION PROCEDURE

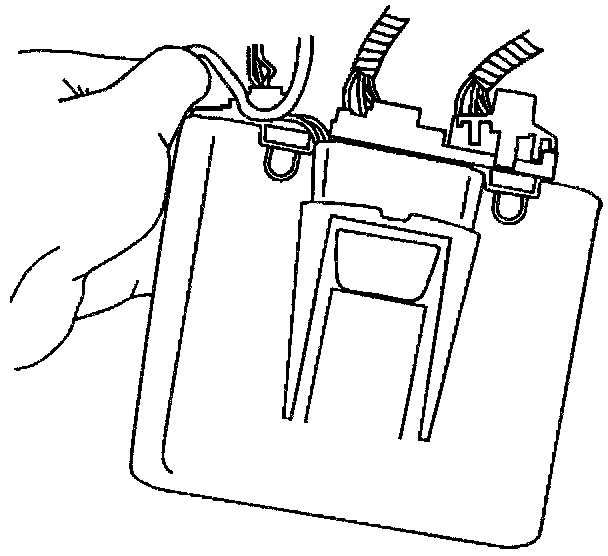

Body Control Module Replacement (Dash Integration Module DIM): Installation Procedure:

1. Install electrical connectors.
2. Slide DIM into bracket until secure.

Body Control Module Replacement (Dash Integration Module DIM): Installation Procedure:

3. Install right sound insulator.
