Typical Scan Data Values

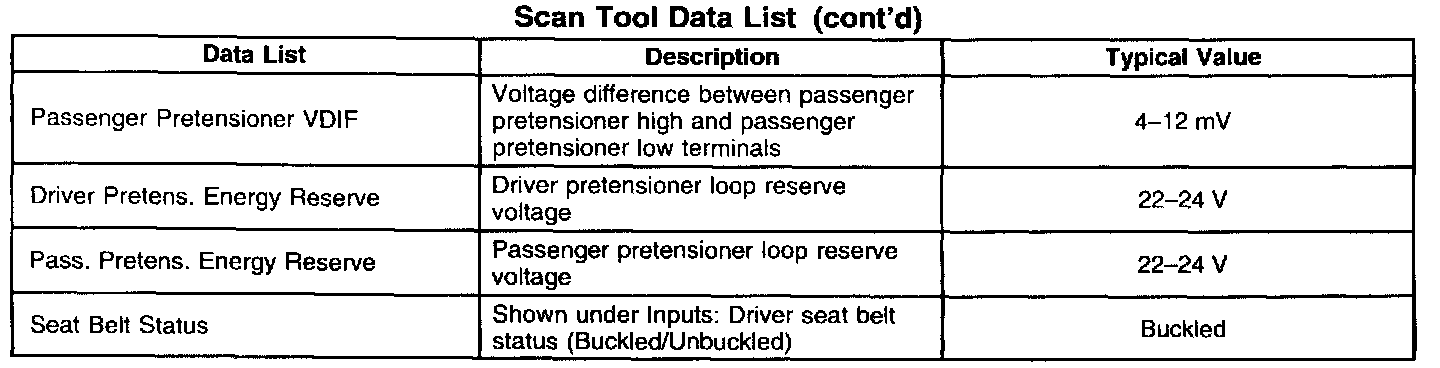

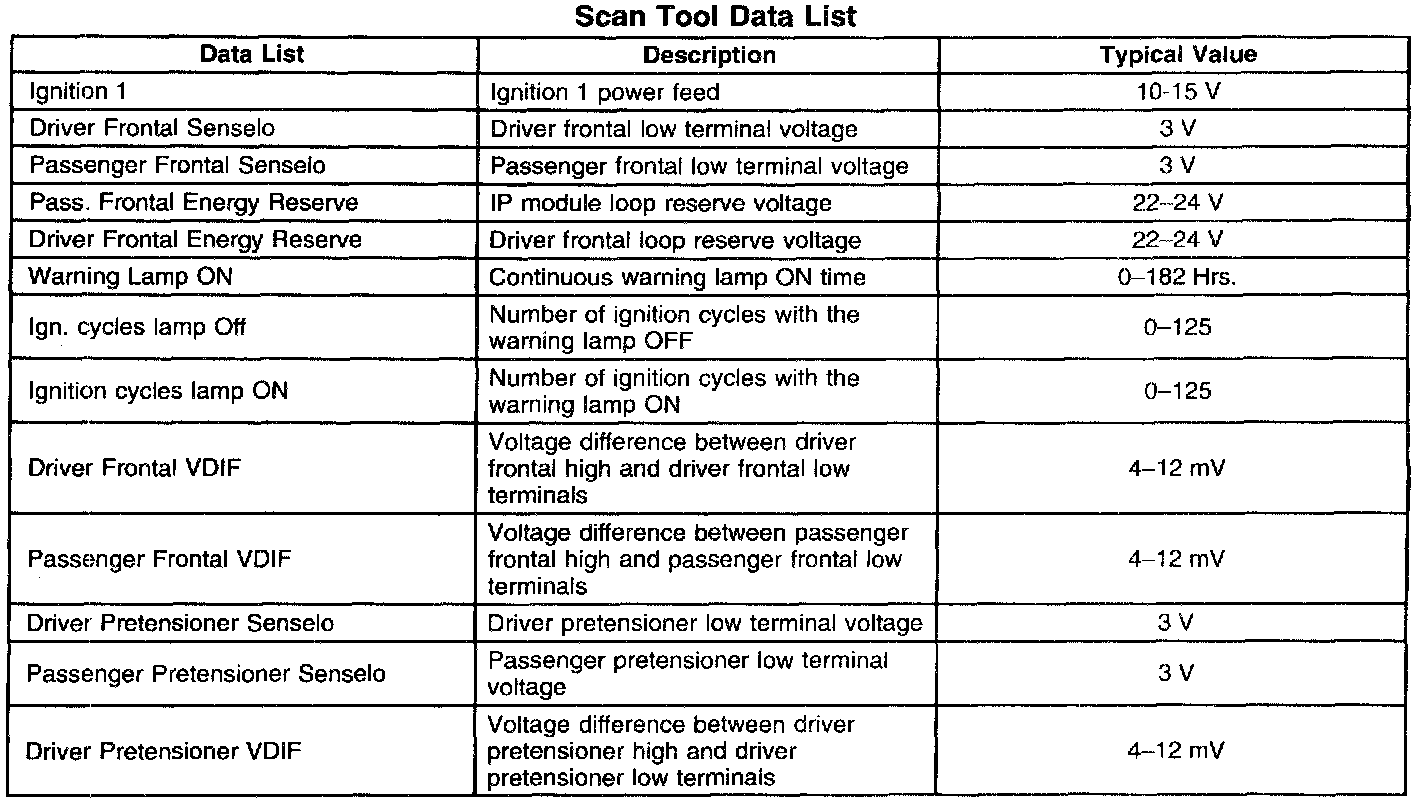

The tables show the typical values of the data displays under the following conditions:
^ Ignition switch in RUN.
^ Engine OFF.
^ Driver seat belt buckled.
