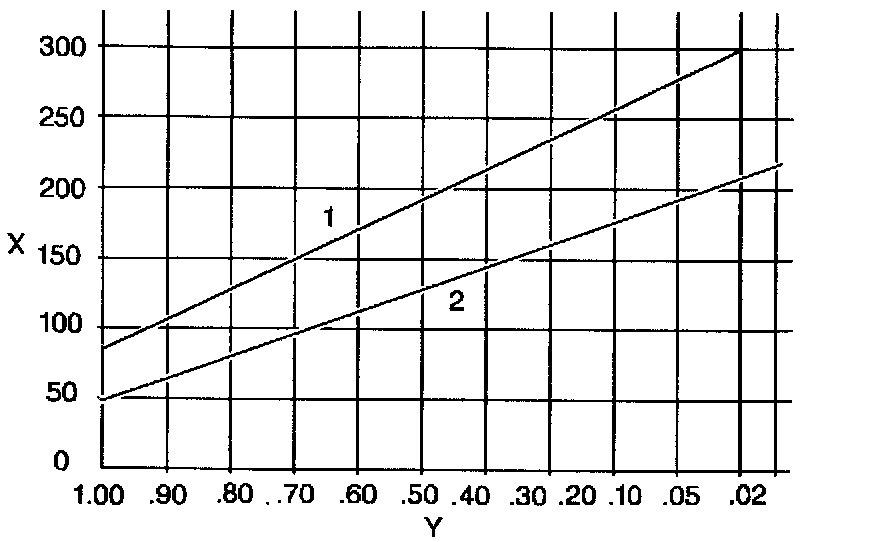

Line Pressure

The vertical axis represents line pressure PSI.
Line # 1 represents Reverse gear
Line # 2 represents Park, Neutral, and Drive gear
Cooler Flow Rates: 1500 + RPM = 7-9 Liters per minute at Min Line, 12-14 Liters per minute at Max Line.
