Door Lock Switch Plate

DOOR LOCK SWITCH PLATE

Front Door Switch Replacement: Removal Procedure:






REMOVAL PROCEDURE

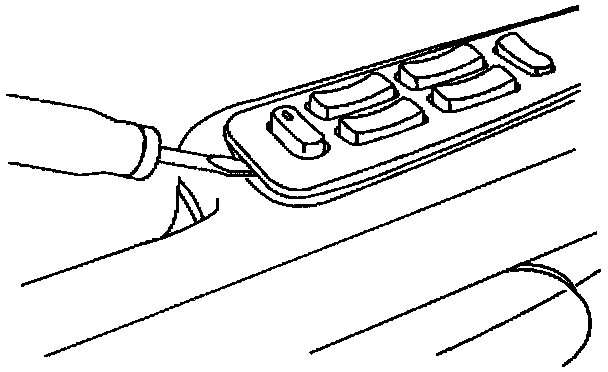

1. Insert a flat bladed tool under to rear edge of the mirror and window switch pack.
2. Push the tool firmly towards the switch plate to disengage the retention clip.

IMPORTANT: Before lifting the switch plate from the door trim panel, ensure that the flat bladed tool has fully disengaged the retainer clip. Otherwise damage to the switch plate or the retainer clip may occur.

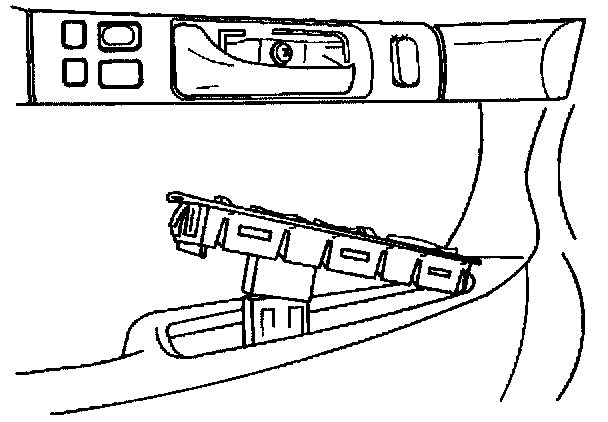

3. Lift up on the rear of the switch pack and remove it from the door trim panel.
4. Disconnect electrical connectors.
5. Remove the switch pack.

Front Door Switch Replacement: Installation Procedure:






INSTALLATION PROCEDURE
1. Install the electrical connectors.
2. Install the switch plate into the door trim panel.
3. Press down on the switch plate evenly to engage the retainer clips.
