Window Regulator Motor

WINDOW REGULATOR MOTOR

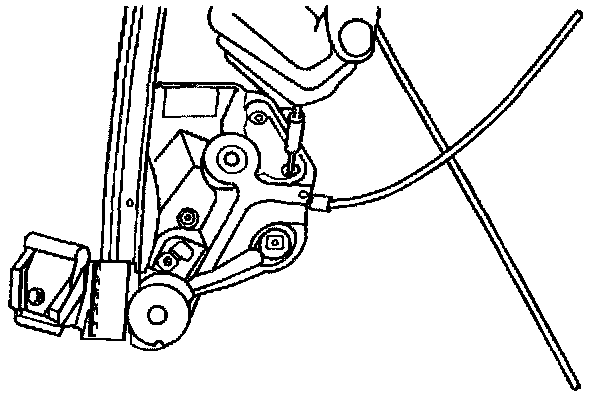

Motor Replacement - Power Window: Removal Procedure:






REMOVAL PROCEDURE
1. Remove the window regulator. Refer to "Window Regulator".
2. Disconnect the electrical connector.
3. Remove the three bolts for gear case to window regulator.

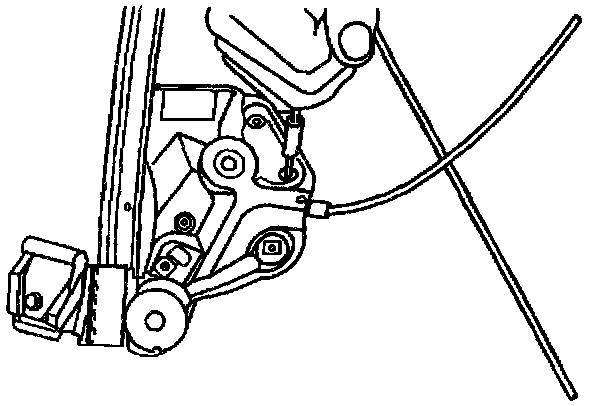

Motor Replacement - Power Window: Removal Procedure:




4. Remove the motor/gear case assembly.

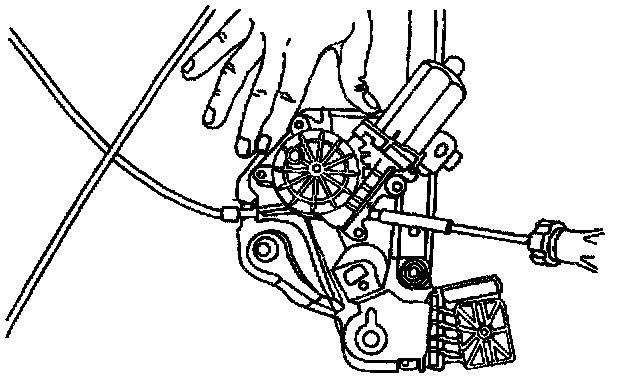

Motor Replacement - Power Window: Installation Procedure:






INSTALLATION PROCEDURE
1. Make sure window regulator is in the mid-travel position.
2. Install the motor/gear case assembly.
3. Install the three bolts for gear case to window regulator.

Tighten
Tighten the window motor bolts to 7 N.m (62 lb in).

4. Install the window regulator into the door.
