Map Light: Service and Repair

REMOVAL PROCEDURE

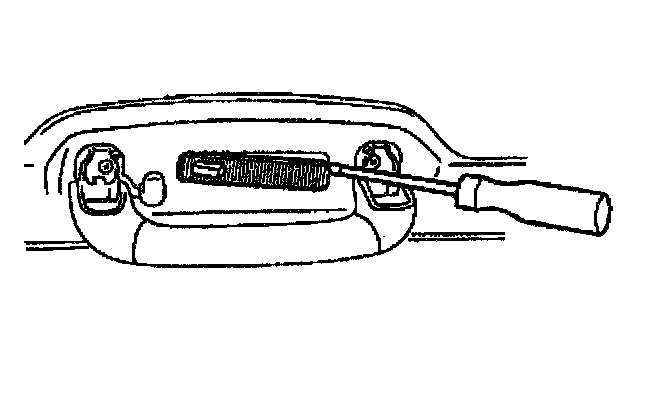

1. Remove the roof rail courtesy reading lamp.
1.1. Insert a flat-bladed screwdriver to the side edge.
1.2. Push downward to release.

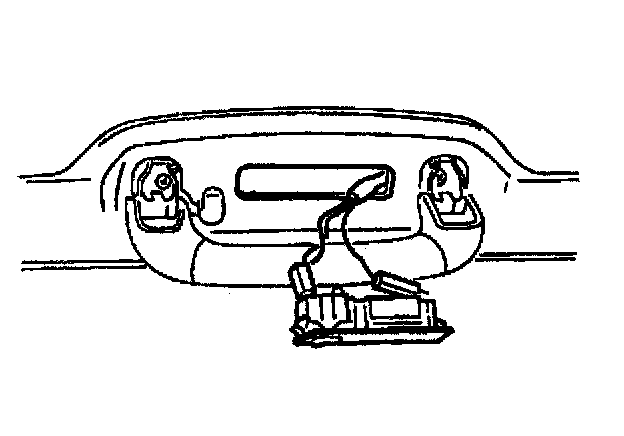

2. Disconnect the electrical connectors from the roof rail courtesy reading lamp.

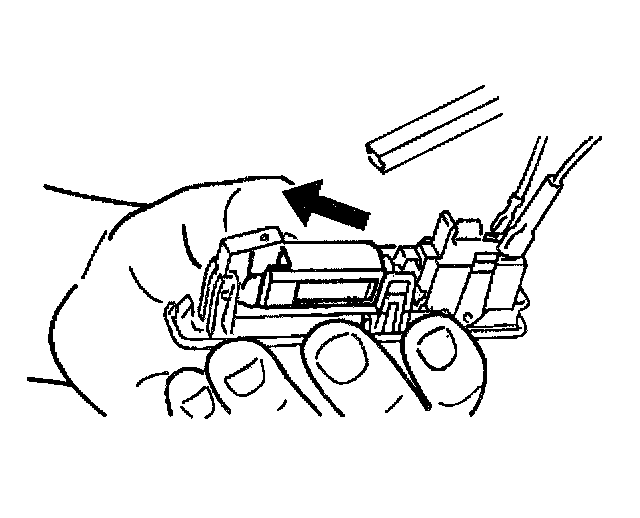

3. Remove the protective cover from the bulb.
4. Remove the bulb.

INSTALLATION PROCEDURE



1. Install the bulb.
2. Install the protective cover over the bulb.
3. Install the electrical connectors to the roof rail courtesy reading lamp.




4. Install the root rail courtesy reading lamp.
