Rear Wheel Alignment

The alignment equipment varies in design and capabilities, therefore, consult with the equipment manufacturer's guidelines prior to setting this angle.

Important: The steps outlined in this procedure are general requirements for properly setting the rear toe.

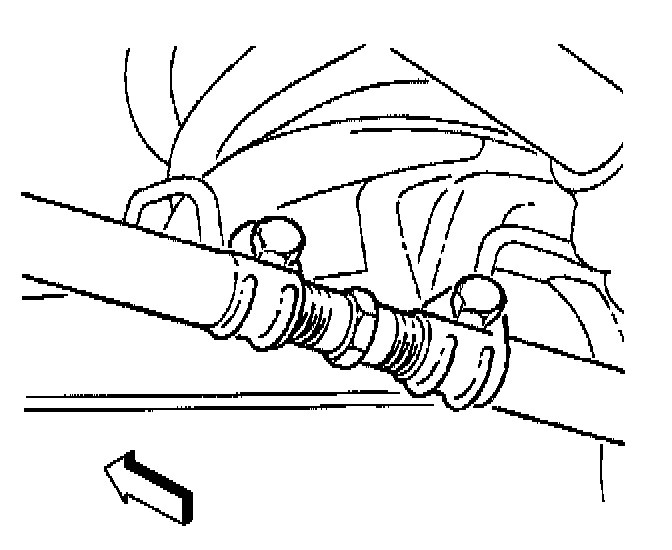

1. Loosen both tie rod adjuster clamps.





2. Turn the threaded sleeve until you achieve the desired toe specification.
- Tighten the tie rod adjuster clamp bolts to 15 Nm (11 ft. lbs.).

Notice: Refer to Fastener Notice in Service Precautions.
