Battery Replacement

REMOVAL PROCEDURE




1. Remove the diagonal brace.
2. Remove the right headlamp cover.

CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.

3. Disconnect the negative battery cable. Disconnect the positive battery cable.

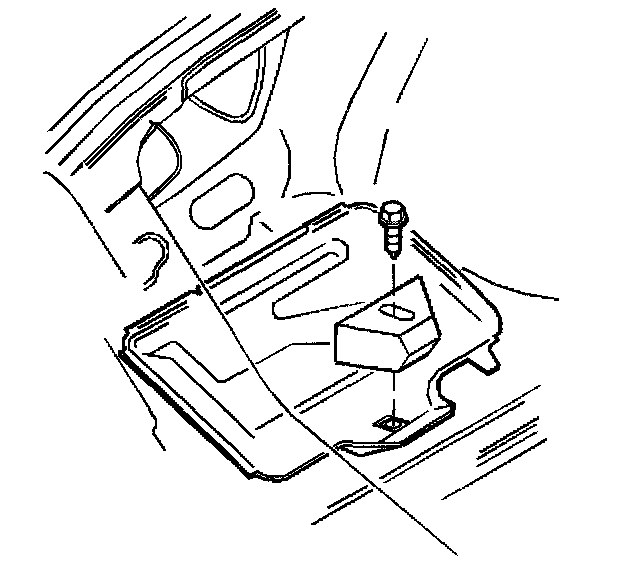

4. Remove the battery retainer. Remove the battery from the vehicle.

INSTALLATION PROCEDURE




1. Install the battery into the vehicle.

NOTE: Refer to Fastener Notice in Cautions and Notices.

2. Install the battery retainer.

Tighten
Tighten the battery retainer bolt to 18 N.m (13 lb ft).




3. Connect the positive battery cable.

Tighten
Tighten the positive battery cable to 15 N.m (11 lb ft).

4. Connect the negative battery cable.

Tighten
Tighten the negative battery cable to 15 N.m (11 lb ft).

5. Install the right headlamp cover.
6. Install the diagonal brace.
