Front Fender Replacement (Right)





Front Fender Replacement (Right)

Removal Procedure

Caution: Unless directed otherwise, the ignition and start switch must be in the OFF or LOCK position, and all electrical loads must be OFF before servicing any electrical component. Disconnect the negative battery cable to prevent an electrical spark should a tool or equipment come in contact with an exposed electrical terminal. Failure to follow these precautions may result in personal injury and/or damage to the vehicle or its components. For Vehicles equipped with OnStar (UE1) with Back Up Battery: The Back Up Battery is a redundant power supply to allow limited OnStar functionality in the event of a main vehicle battery power disruption to the VCIM (OnStar module). Do not disconnect the main vehicle battery or remove the OnStar fuse with the ignition key in any position other than OFF. Retained accessory power (RAP) should be allowed to time out or be disabled (simply opening the driver door should disable RAP) before disconnecting power. Disconnecting power to the OnStar module in any way while the ignition is On or with RAP activated may cause activation of the OnStar Back-Up Battery (BUB) system and will discharge and permanently damage the back-up battery. Once the Back-Up Battery is activated it will stay on until it has completely discharged. The BUB is not rechargeable and once activated the BUB must be replaced.

1. Disconnect the negative battery cable.






2. Remove the hood link assembly from the fender. Refer to Hood Link Replacement Service and Repair.
3. Remove the hood. Refer to Hood Replacement Service and Repair.
4. Remove the radio antenna.
5. Remove the wiring inside the fender.
6. Remove the air cleaner hose from the fender (7) in the engine compartment.
7. Remove the battery and the battery tray.
8. Remove the forward air inlet duct assembly from the fender.
9. Remove the wiring from the clips.
10. Remove the underhood lamp, if equipped.

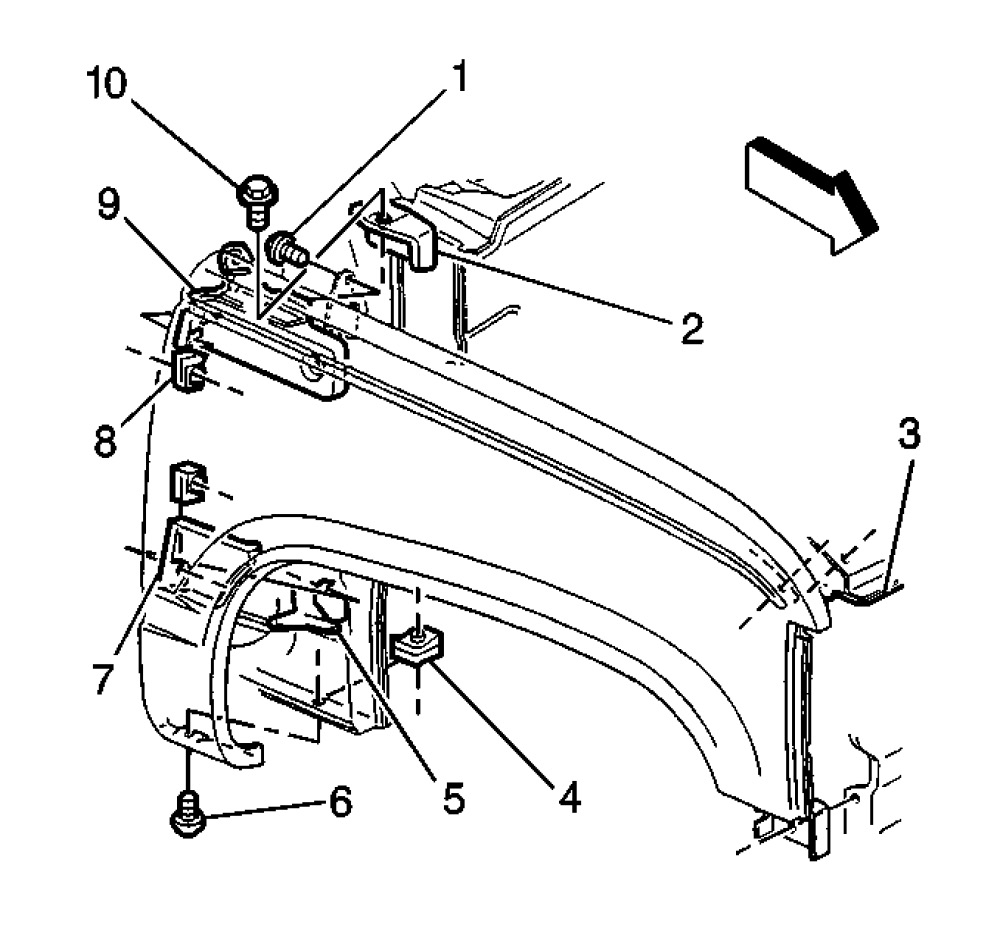

11. Remove the bolts (5) holding the fender to the wheelhouse.






12. Remove the bolt (6) holding the fender to the rocker assembly.
13. Open the door.
14. Remove the bolts holding the fender to the door hinges.
15. Remove the bolt holding the fender to the radiator support (9).
16. Remove the fender from the vehicle.

Installation Procedure

1. Install the fender to the vehicle.






Notice: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

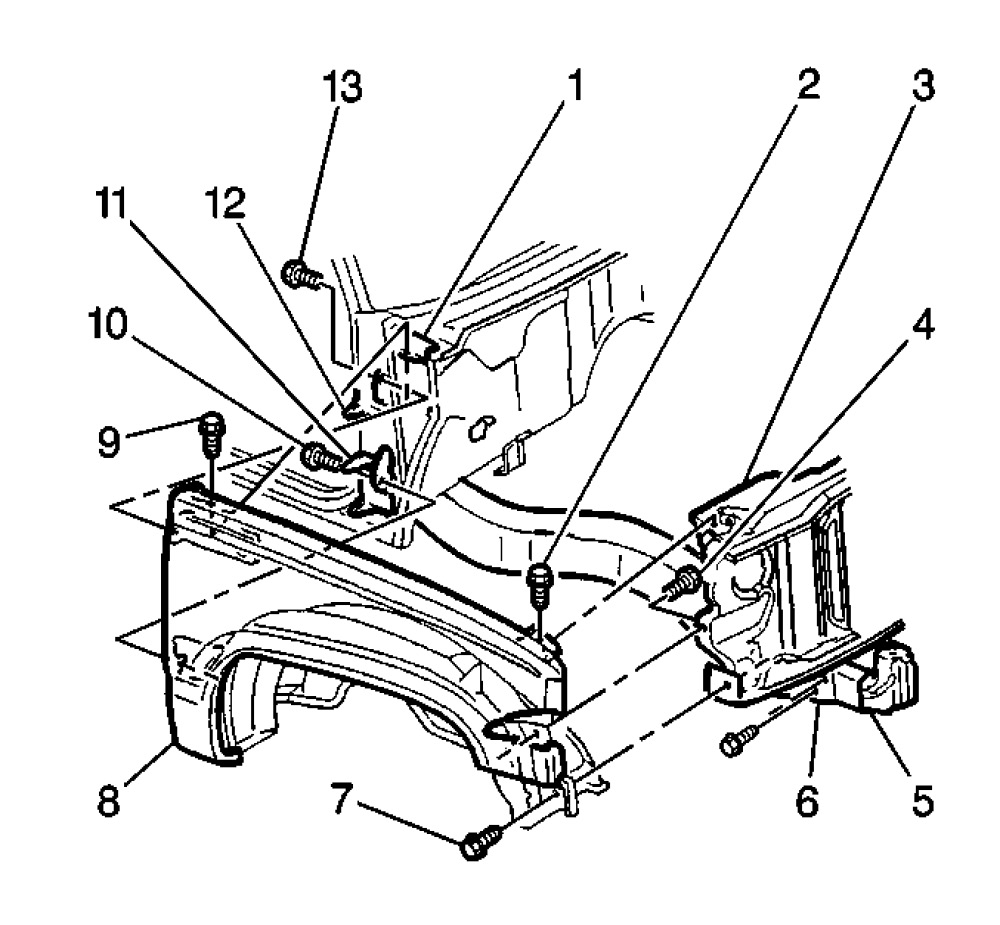

2. Install the bolts holding the fender to the radiator support (6).

Tighten
Tighten the fender bolts to 25 Nm (18 lb ft).

3. Install the bolts and nuts holding the fender to the door hinges.

Tighten
Tighten the fender to the door hinge bolts to 25 Nm (18 lb ft).






4. Install the bolt (6) and the nut from the fender to the rocker assembly.

Tighten
Tighten the fender to the rocker bolts to 25 Nm (18 lb ft).

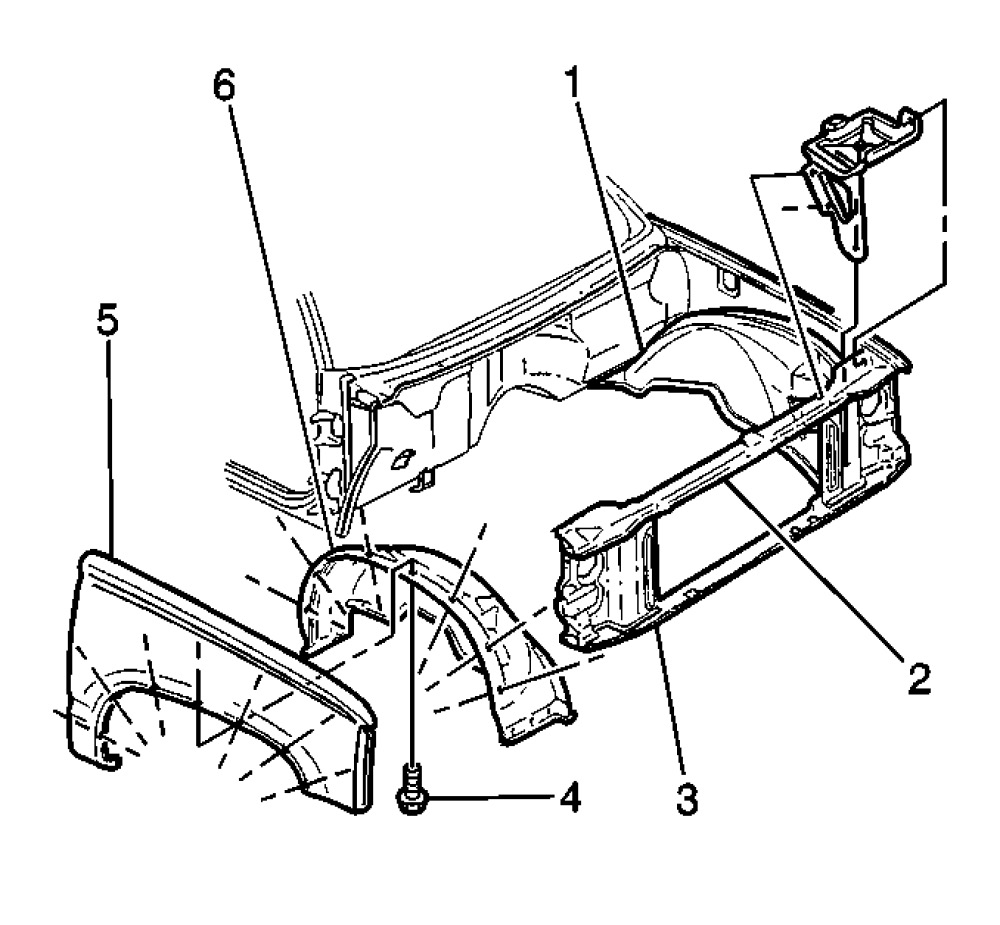

5. Install the bolts (6) through the wheelhouse (3) to the fender (4).
6. Install the forward air inlet duct assembly to the front section of the fender in the engine compartment.
7. Install the battery tray and the battery.

Tighten
Tighten the tray bolts to 25 Nm (18 lb ft).

8. Install the air cleaner hose to the fender.
9. Install the wiring inside the fender.
10. Install the radio antenna into the fender.
11. Install the wiring into the clips.
12. Install the underhood lamp, if equipped.
13. Install the hood link assembly. Refer to Hood Link Replacement Service and Repair.
14. Install the hood hinge to the hood.

Tighten
Tighten the hinge to the hood bolts to 25 Nm (18 lb ft)

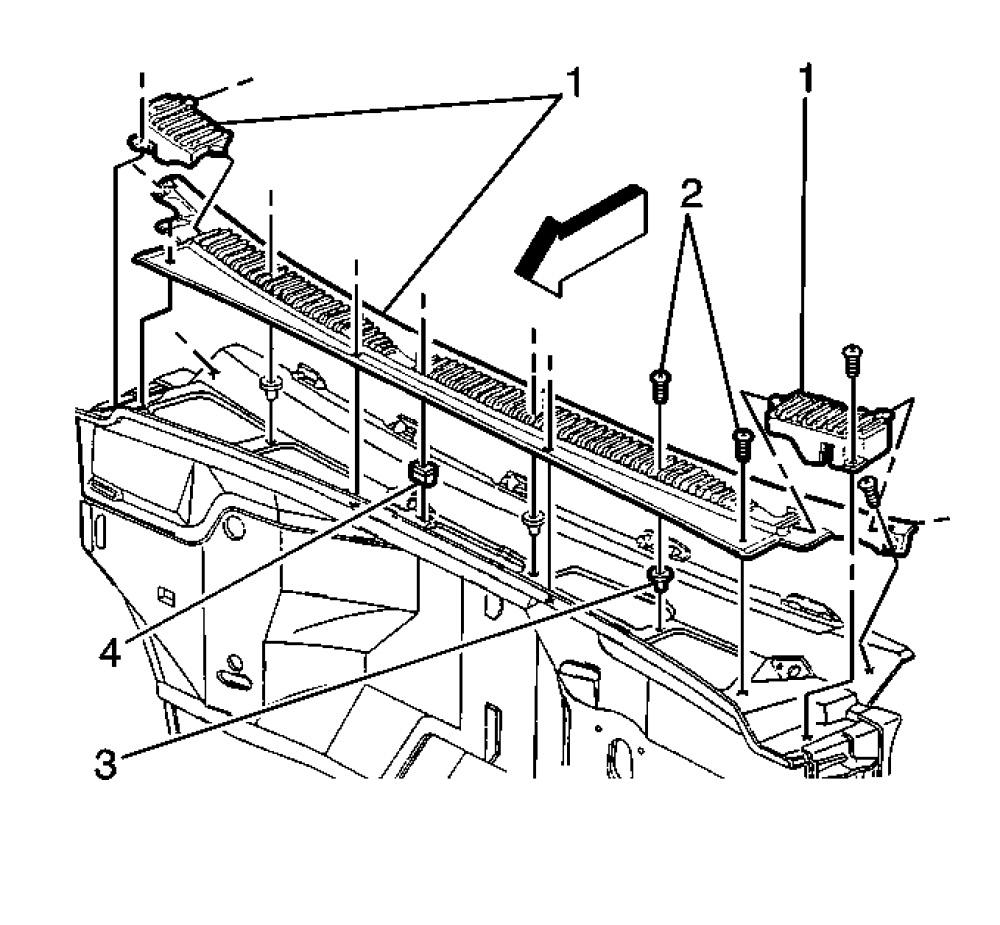

15. Install the outboard cowl grille (1) to the vehicle.
16. Install the hood to the vehicle. Refer to Hood Replacement Service and Repair.
17. Inspect the fender for proper clearance.
18. Connect the negative battery cable.
