Sunroof / Moonroof Module: Service and Repair

REMOVAL PROCEDURE



1. Lower the rear of the headliner to gain access to the sunroof express module.

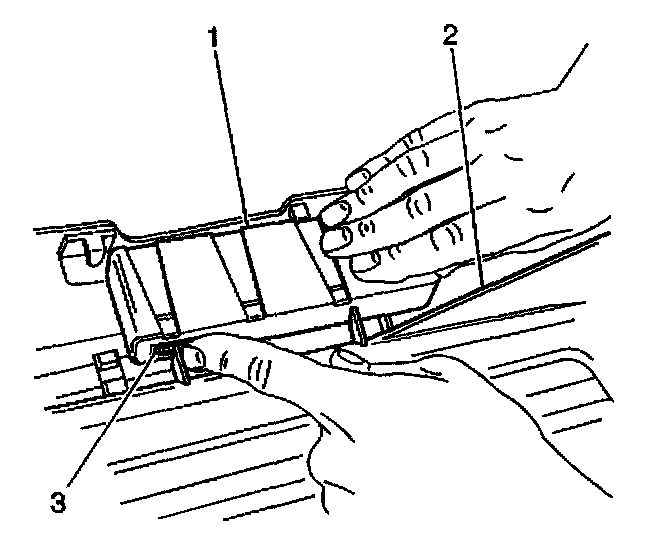

2. Depress the tab (3) on the side of the sunroof express module (1).
3. With the tab (3) on the side depressed, slide the sunroof express module towards the sunroof motor to release the express module from the sunroof module.
4. Remove the sunroof express module from the sunroof module.

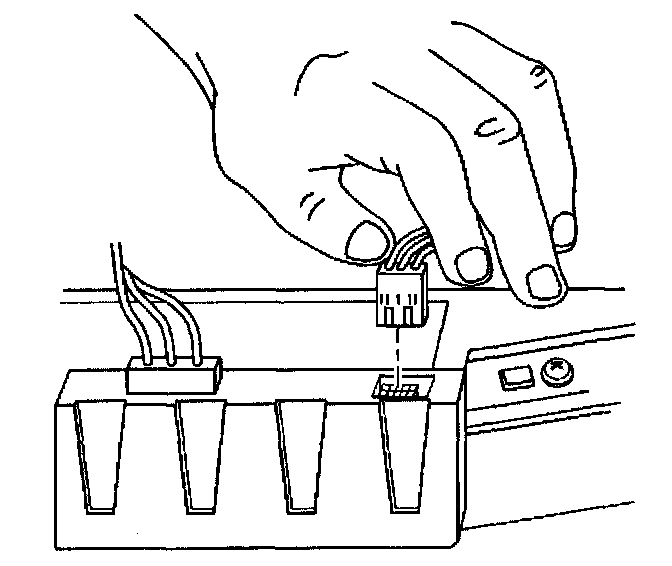

5. Disconnect the electrical connectors.

INSTALLATION PROCEDURE



1. Connect the electrical connectors to the sunroof express module.

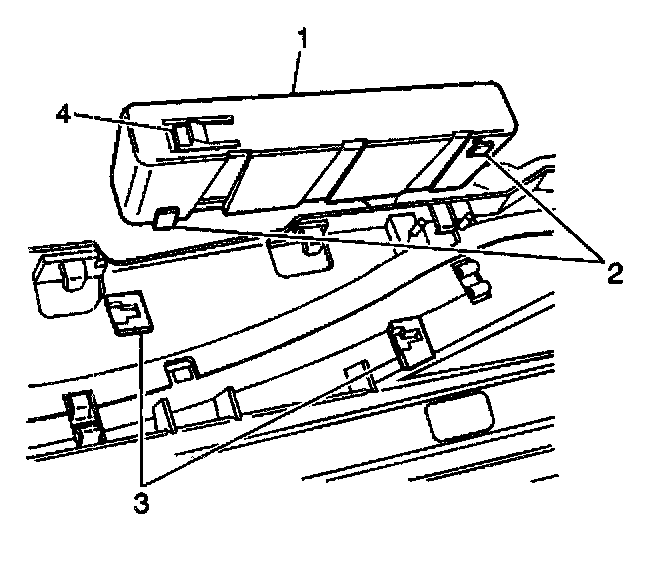

2. Insert the sunroof express module tabs (2) into the sunroof module slots (3).
3. Slide the sunroof express module away from the sunroof motor until it is fully engaged.

IMPORTANT: Test for proper operation of the sunroof before installing the headliner.

4. Install the headliner.
