Fluid Line/Hose: Service and Repair

Removal Procedure

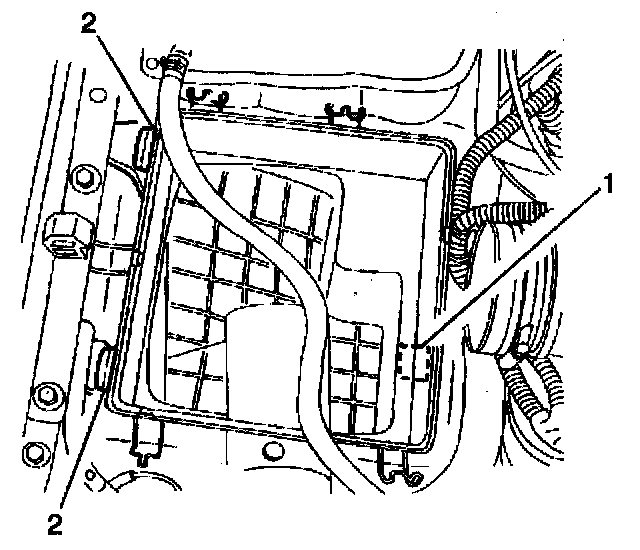

1. Remove the air filter housing.
- Remove the cover.
- Remove the element.
- Unseat from the grommets (1, 2).
2. Remove the generator cooling duct.
3. Remove the center inlet and outlet pipe hoses from oil cooler pipe.
- Squeeze the clamps.
- Slide the clamps away from the connection.
- Disconnect the hoses from pipe.
4. Remove the upper pipe fitting and seals from radiator. Discard seals.
5. Raise and suitably support the vehicle. Refer to Vehicle Lifting.
6. Remove the lower pipe fitting and seals from radiator. Discard seals.





7. Remove the front oil cooler pipe (3) from vehicle.

Installation Procedure





1. Install the front oil pipe (3) to vehicle.
2. Install the lower pipe fitting and new seals to radiator.

Notice: Refer to Fastener Notice in Service Precautions.

- Tighten the lower pipe fitting to 25 Nm (18 ft. lbs.).
3. Lower the vehicle.
4. Install the upper pipe fitting and new seals to radiator.
5. Install the upper pipe fitting bolt.
- Tighten the upper pipe fitting to 25 Nm (18 ft. lbs.).
6. Install the center oil cooler pipe hoses to pipe.
- Install the hoses to pipes.
- Squeeze the clamps.
- Slide the clamps into position.
7. Install the generator cooling duct.

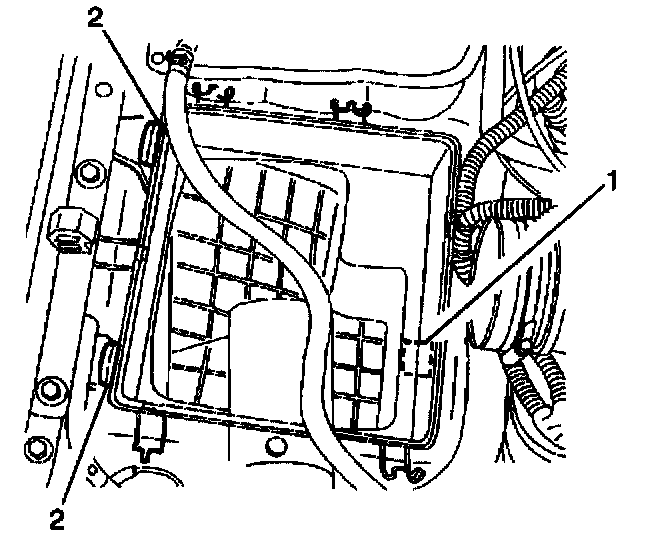

8. Install the air filter housing.
- Seat the housing to the grommets (1, 2).
- Install the element.
- Install the cover.
9. Inspect the transmission fluid level. Refer to Transmission Fluid Checking Procedure.
