Window Glass: Adjustments

1. Open the front side door.

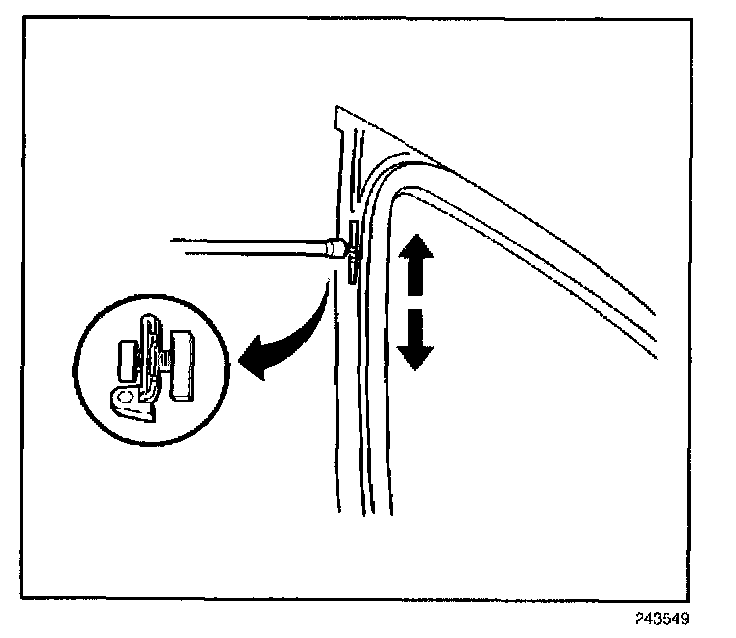

2. Grasp the door upper sealing strip at the upper outer corner and pull downward to expose the window stop bumper.
3. Loosen the stop bumper screw.
4. Roll the window all the way up.
5. Inspect that the window is fully seated in the weatherstrip.

NOTE: Refer to Fastener Notice in Service Precautions.

6. Tighten the stop bumper screw.

Tighten
Tighten the window stop bumper screw to 4 N.m (35 lb in).

7. Reposition upper sealing strip to its original position.
8. Close the front door.
