Map Light: Service and Repair
REMOVAL PROCEDURE 1.

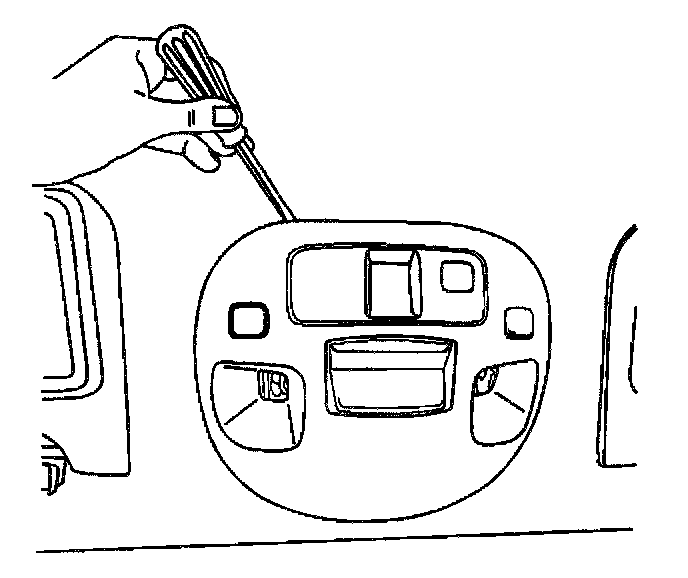

Remove the overhead console.
2.
Remove the four screws (1) from the lamp retainer.
3.
Remove the lamp retainer.
4.
Remove the bulb heat shield by pulling outward from the lamp.
5.
Replace the necessary bulb.
INSTALLATION PROCEDURE 1.
Install the bulb heat shield.
2.
Install the lamp retainer.
3.
Install and tighten the four screws (1).
4.
Install the overhead console.
