Assist Step Replacement

Assist Step Replacement

Removal Procedure

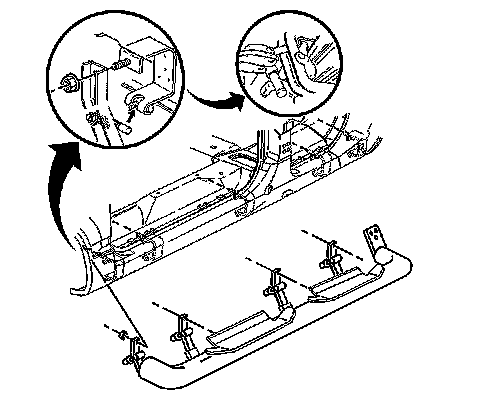

1. Remove the nuts that secure the assist side step to the T-bolts and the brackets.

2. Remove the assist side step from the vehicle.

Installation Procedure

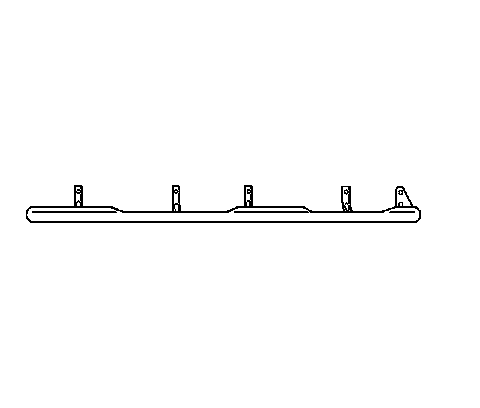

1. Install the assist side step assembly to the vehicle.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the nuts that secure the assist side step assembly.

Tighten the nuts to 23 N.m (17 lb ft).
