Blower Motor Relay: Service and Repair

BLOWER MOTOR RELAY REPLACEMENT

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.




1. Disconnect the negative battery cable.
2. Remove the instrument panel compartment.
3. Disconnect the electrical connectors as necessary.

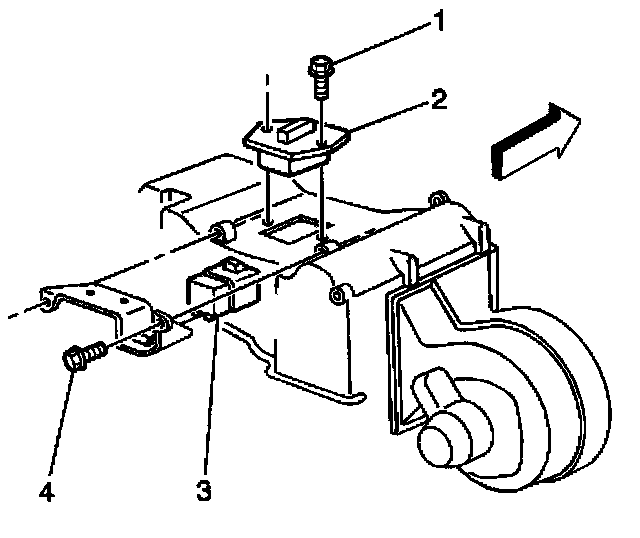

4. Remove the relay (3) from the relay bracket.

INSTALLATION PROCEDURE




1. Install the relay (3) to the relay bracket.
2. Connect the electrical connectors as necessary.
3. Install the instrument panel compartment
4. Connect the negative battery cable.
5. Test the circuit operation.
