Fuel Pump Auxiliary (Balance Pump)



FUEL PUMP AUXILIARY (BALANCE)

Auxliary Fuel Tank (Dual Tank):

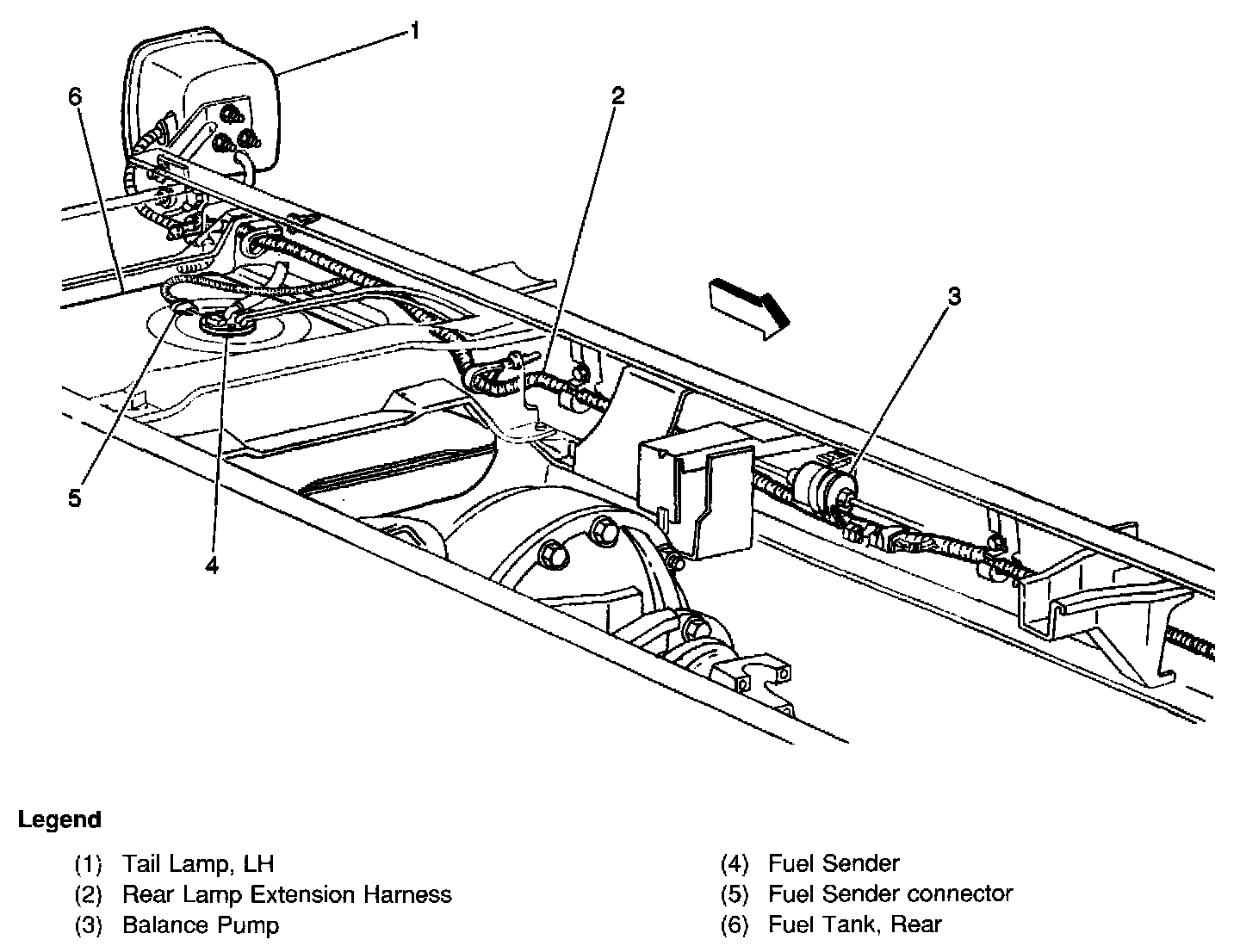

On vehicles equipped with dual fuel tanks, a fuel balance pump is located inside the left frame rail, ahead of rear axle.
