Console Trim Panel Replacement - Left
REMOVAL PROCEDURE 1.

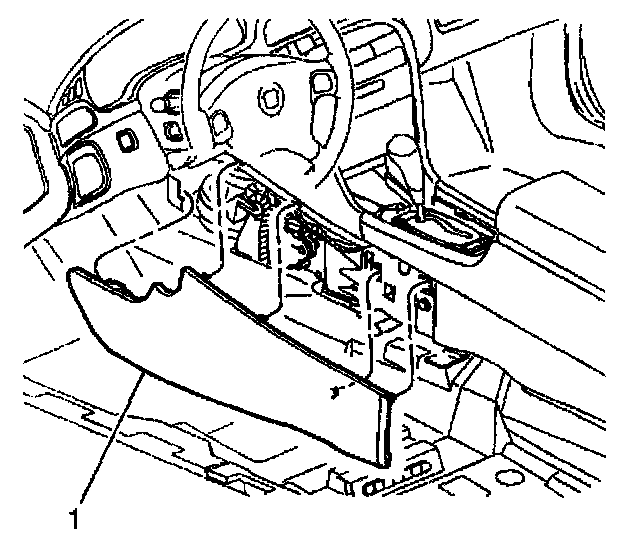

Grasp the front edge and the lower rear edge of the
console trim panel (1).
2.
Pull the
trim panel outward in order to disengage the retainers.
INSTALLATION PROCEDURE 1.
Align the
trim panel retainers with the
console side.
2.
Push firmly on the
console trim panel (1) in order to engage the retainers.
