Keyless Entry Receiver: Service and Repair




REMOVAL PROCEDURE
1. Remove rear shelf trim from inside of rear storage compartment.
2. Push on retainer at rear edge of bracket and slide towards the driver's side.
3. Disconnect the electrical connectors from the modules on the bracket.

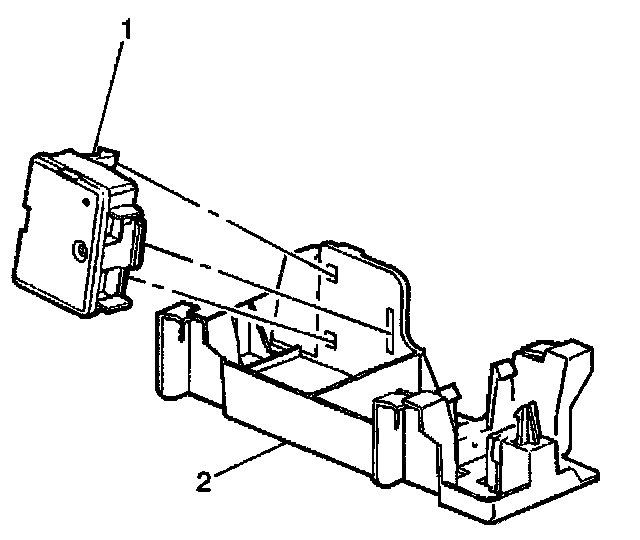

4. Remove RFA module (1) from the bracket (2).

INSTALLATION PROCEDURE
1. Slide RFA module (1) into bracket (2).
2. Reconnect all electrical connectors.
3. Install bracket to rear shelf.
4. Install rear storage compartment trim.
5. Program RFA module. Programming and Relearning
