Procedures

REMOVAL PROCEDURE
1. Remove the door trim panel.
2. Remove the inside door handle.

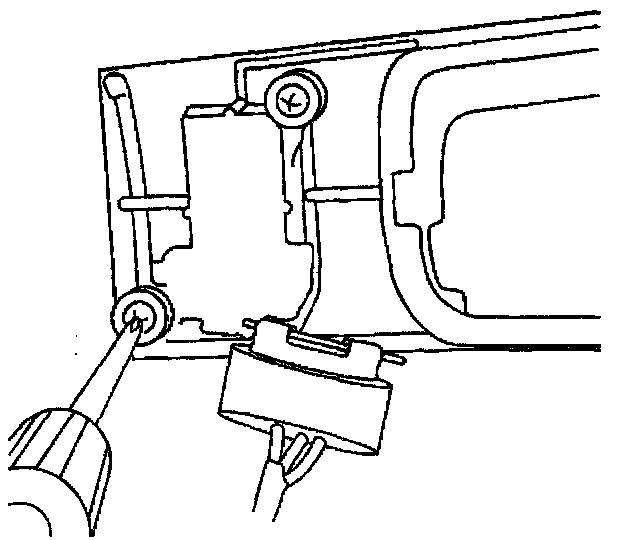

3. Remove the two screws from the switch.
4. Remove the door lock switch from the inside of the door panel.

INSTALLATION PROCEDURE
1. Align the door lock switch.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the two screws.

Tighten
Tighten the two screws to 2 N.m (18 lb in).

3. Install the inside door handle.
4. Install the door trim panel.
