Traction Control Switch: Service and Repair

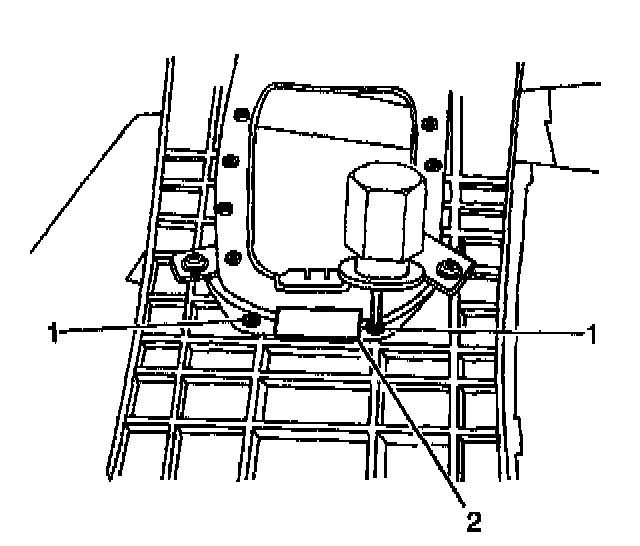

Removal Procedure 1.
Turn OFF the ignition.
2.
Remove the console trim plate.
3.
Remove the fasteners (1) retaining the
traction control switch to the console trim plate.
4.
Remove the switch (2) from the trim plate.

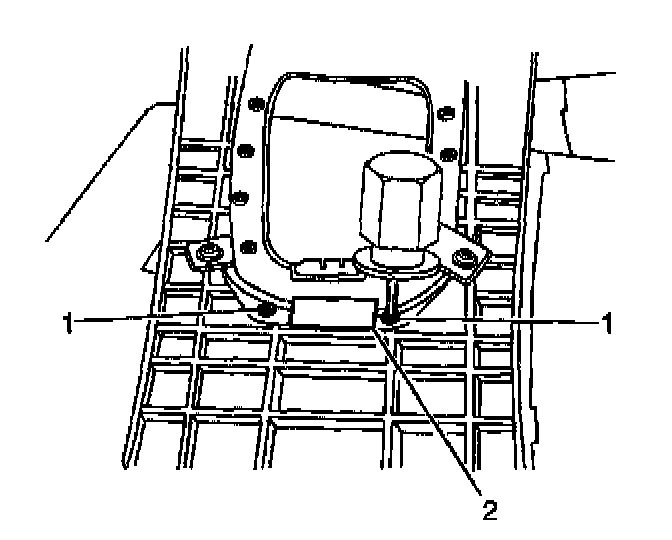

Installation Procedure 1.
Align the
traction control switch (2) to the console trim plate.
2.
Install the switch fasteners (1).
3.
Install the console trim plate.
