Shift Lock Control Inoperative













Test Description

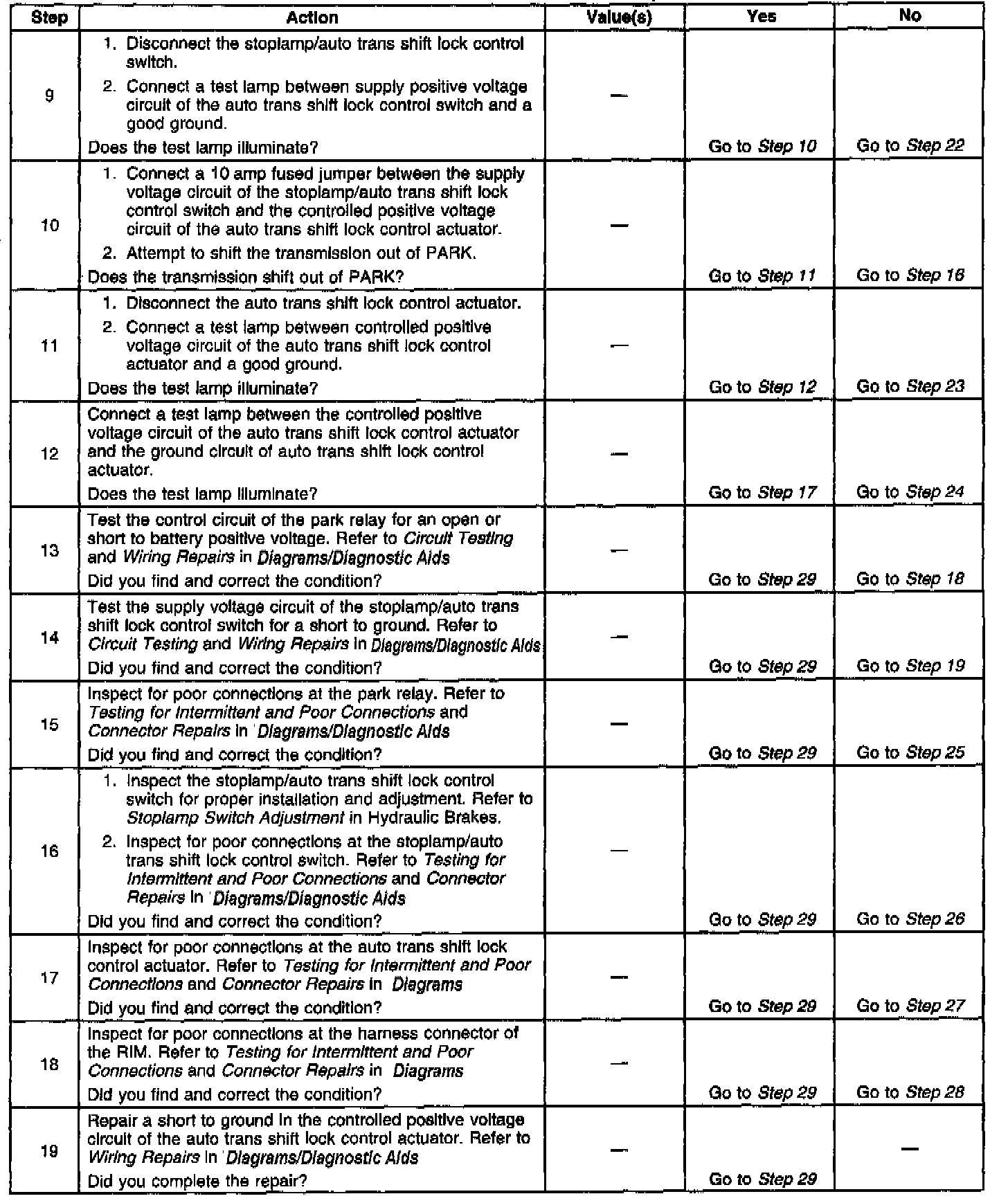

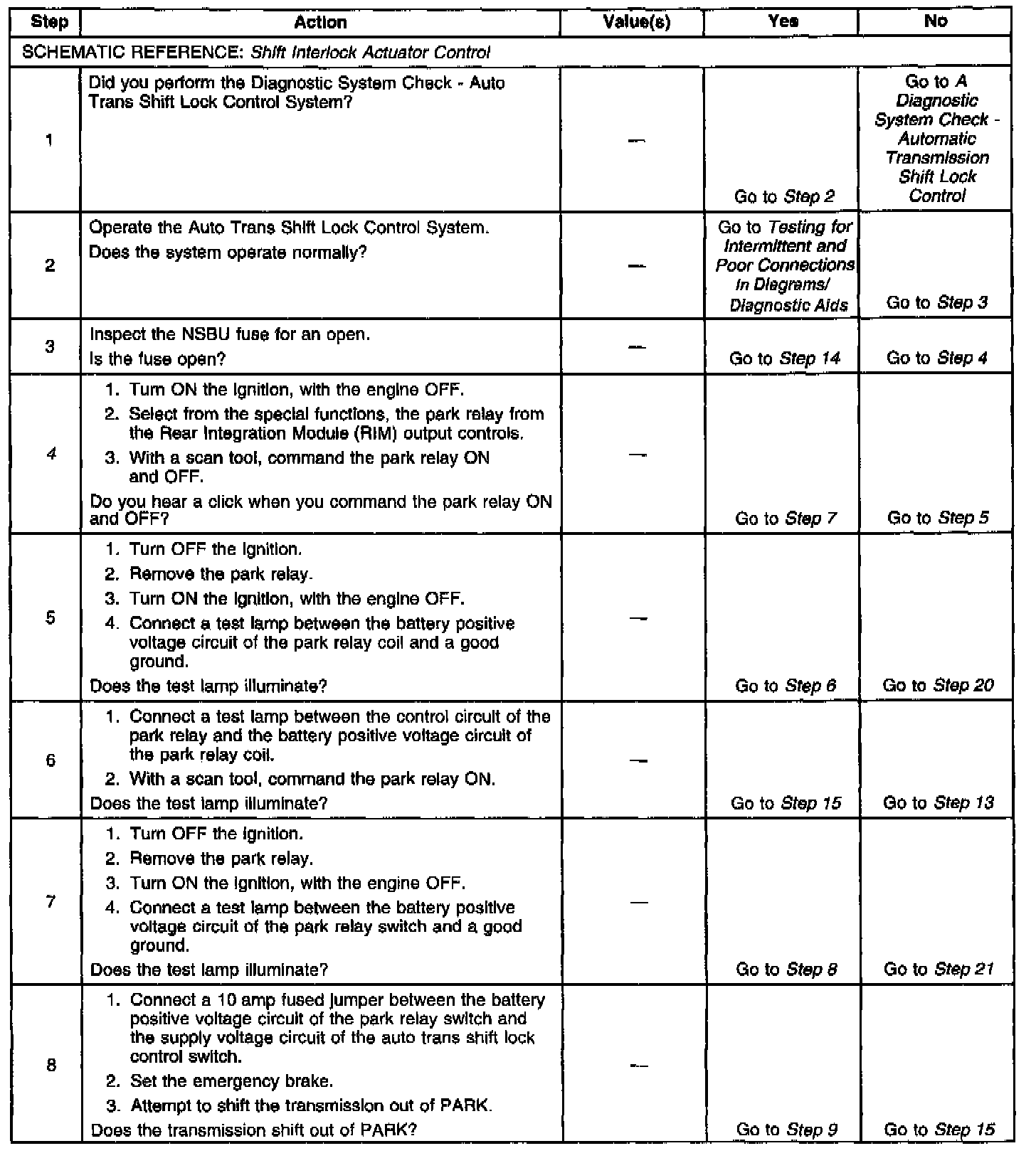

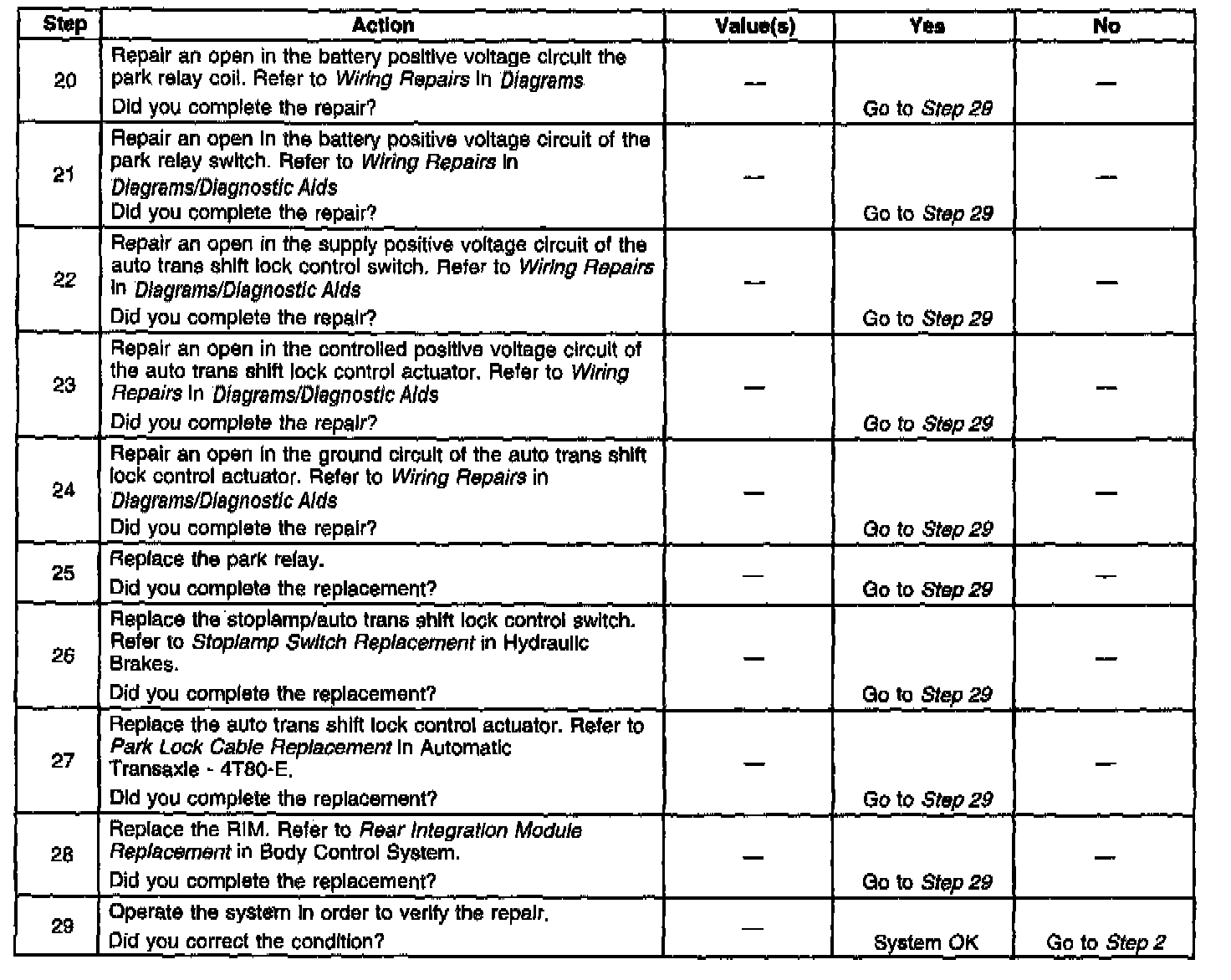

The number(s) below refer to the step number(s) on the diagnostic table.
4. Command both the ON and OFF states. Repeat the commands as necessary.
