Brake Fluid Level Sensor/Switch: Service and Repair

Master Cylinder Fluid Level Sensor Replacement

Removal Procedure
The Brake fluid level sensor and Reservoir cap come as an assembly.

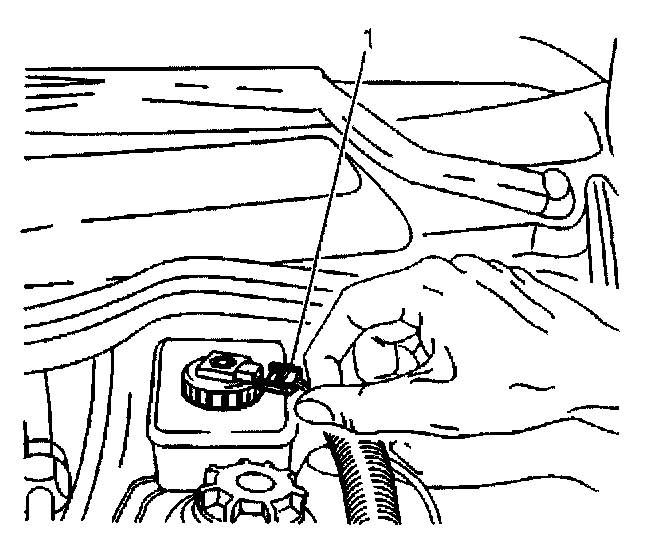

1. Disconnect the electrical connector from the fluid level sensor (1).

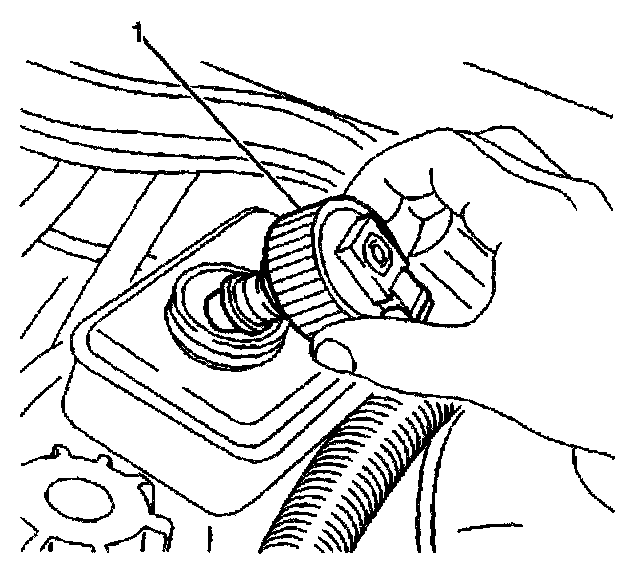

2. Remove the fluid level sensor (1) by unscrewing the cap.

Installation Procedure

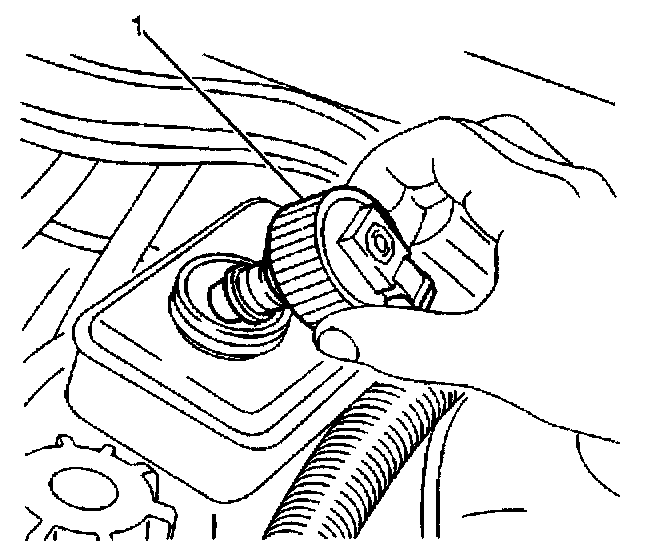

1. The cap and level sensor come as an assembly (1).
2. Install the cap and level assembly.

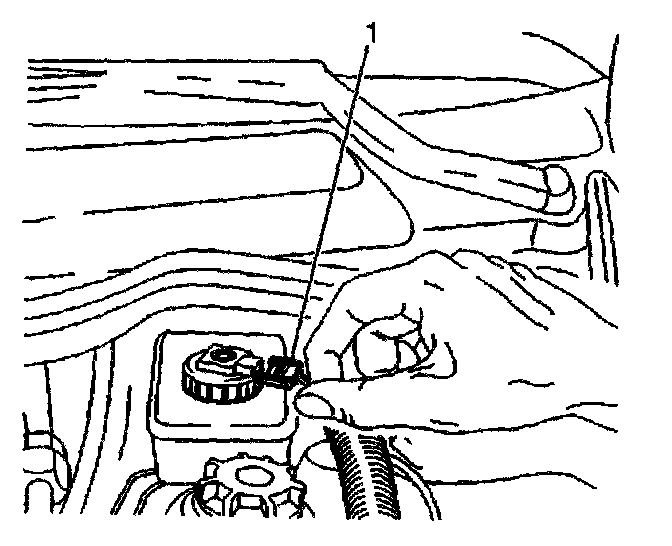

3. Connect the electrical connector to the fluid level sensor (1).
