Oil Level Sensor: Service and Repair

ENGINE OIL LEVEL SENSOR REPLACEMENT

REMOVAL PROCEDURE




1. Remove the lower oil pan.
2. Disconnect the oil level sensor connector.

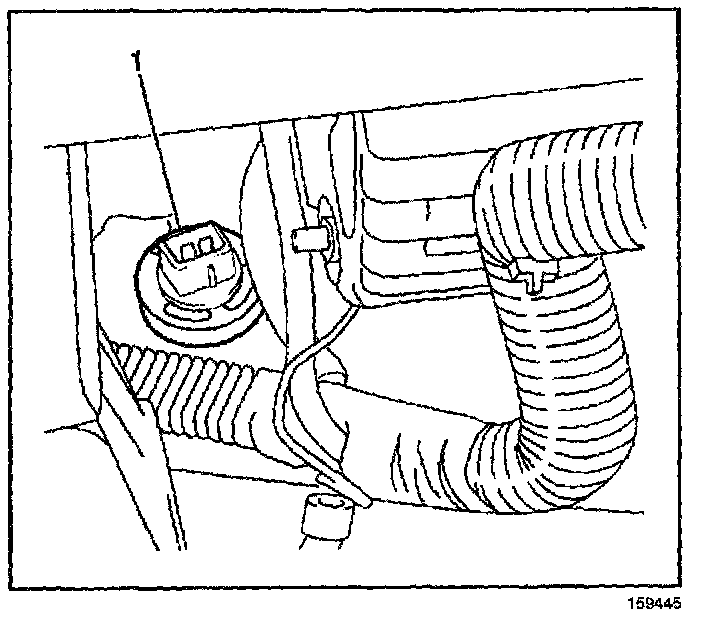

3. Remove the C-clip (1) which connects the oil level sensor wire from the upper oil pan.
4. Remove the lower oil pan sensor from the upper oil pan.

INSTALLATION PROCEDURE




1. Install the oil level sensor to the upper oil pan.
2. Connect the oil level sensor connector.
3. Install the C-clip (1) which connects the oil level sensor wire to the upper oil pan.
4. Install the lower oil pan.
