Air Temperature Sensor Replacement - Left

REMOVAL PROCEDURE

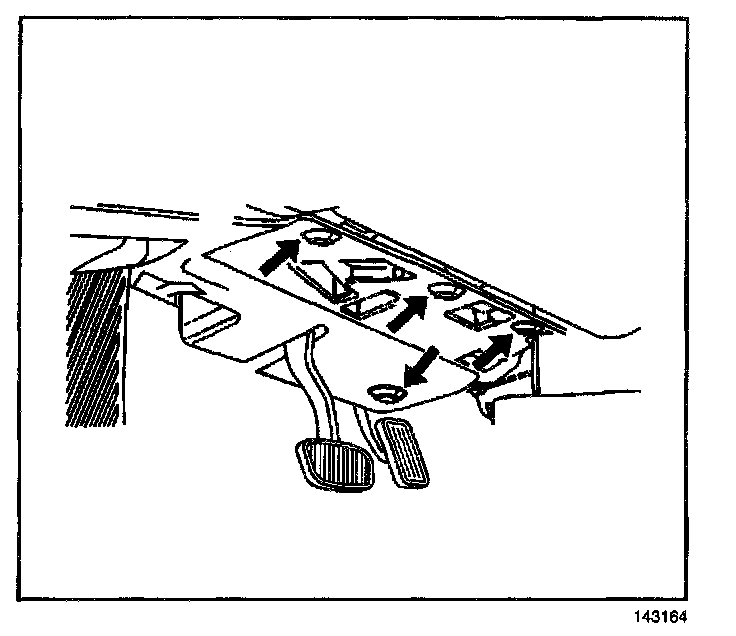

1. Remove the L/H sound insulator. Refer to Closeout/Insulator Panel Replacement - Left in Instrument Panel, Guages and Warning Indicators.

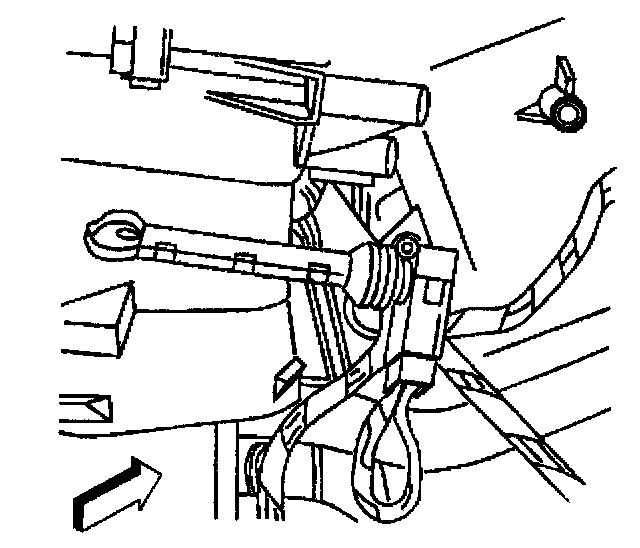

2. Remove the front floor air outlet from the HVAC module.
The LH air temperature sensor is located in the HVAC module just above where the floor air outlets connect to the module.

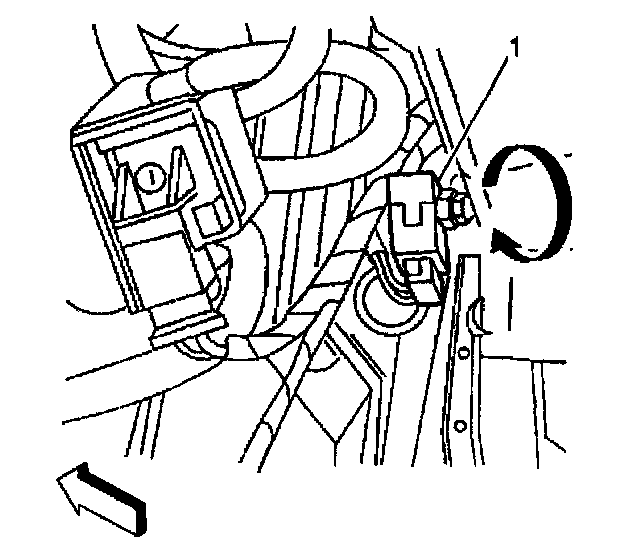

3. Using a flat bladed tool, disconnect the electrical connector (1) from the air temperature sensor.




4. Turn the air temperature sensor 180 degrees. Carefully remove the air temperature sensor from the HVAC module.

INSTALLATION PROCEDURE




1. Carefully insert the air temperature sensor into the HVAC module.




2. Turn the air temperature sensor 180 degrees.
3. Connect the electrical connector (1) to the air temperature sensor.
4. Install the front floor air outlet.




5. Install the L/H sound insulator Refer to Closeout/Insulator Panel Replacement - Left in Instrument Panel, Guages and Warning Indicators.
