Ambient Air Temperature Sensor Replacement

AMBIENT AIR TEMPERATURE SENSOR REPLACEMENT

REMOVAL PROCEDURE




1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle.

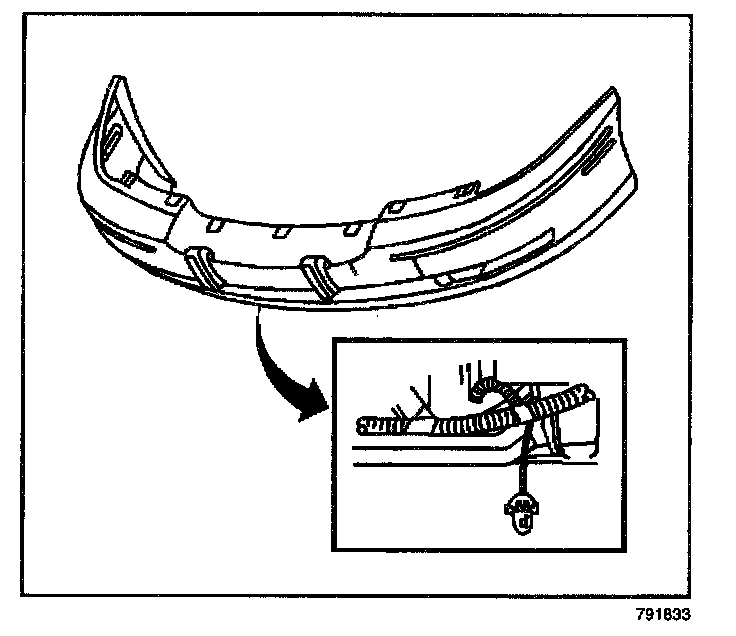

2. Remove the lower fascia screws.
3. Disconnect the ambient air temperature sensor electrical connector.
4. Release the mounting tabs and remove the ambient air temperature sensor.

INSTALLATION PROCEDURE




1 Install the ambient air temperature sensor. Ensure the mounting tabs are seated.
2. Connect the ambient air temperature sensor electrical connector.

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the lower fascia screws.

Tighten
Tighten the screws to 3 N.m (27 lb in).

4. Lower the vehicle.
