Computers and Control Systems: Tools and Equipment

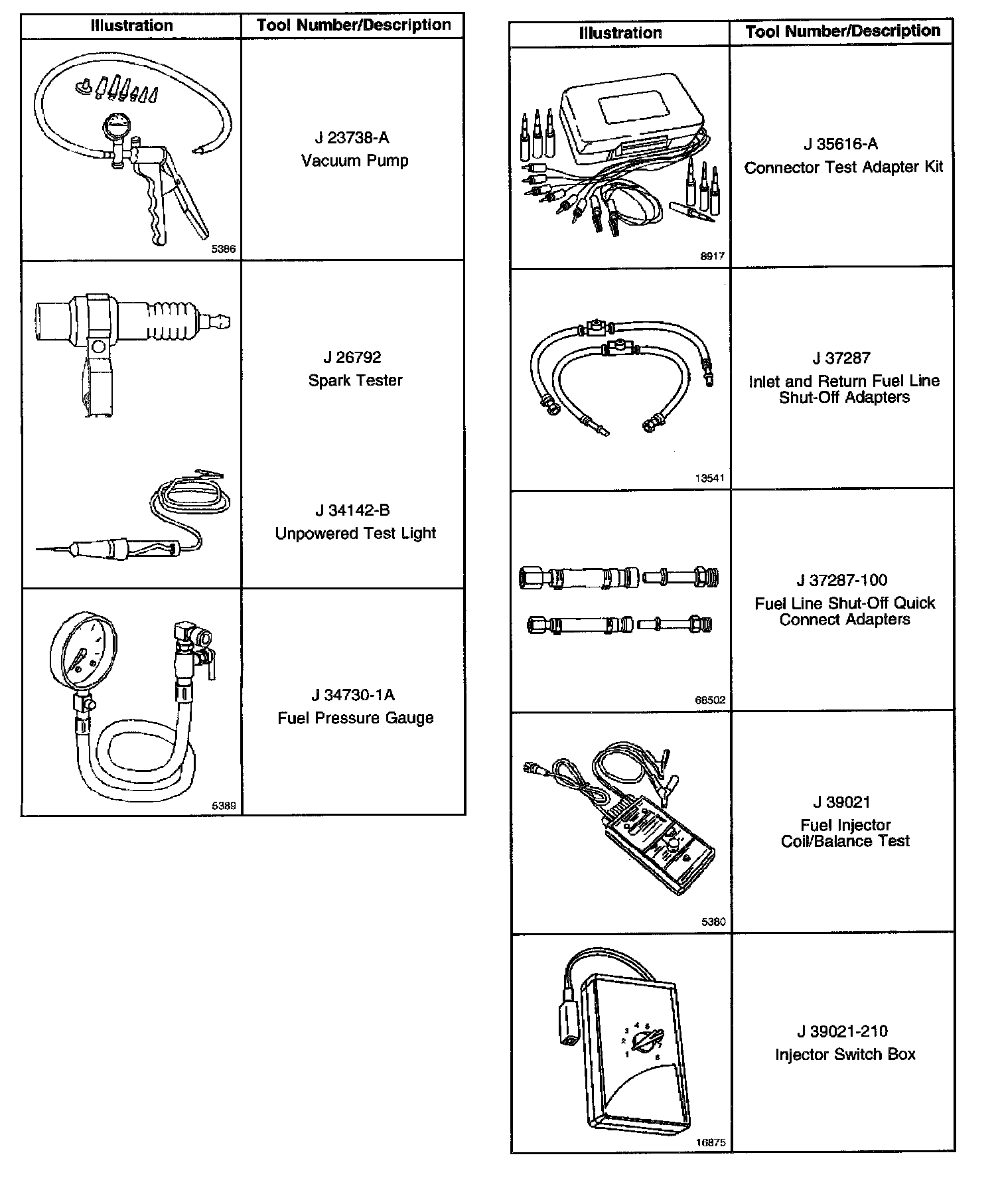

Special Tools And Equipment (Part 1 Of 3):

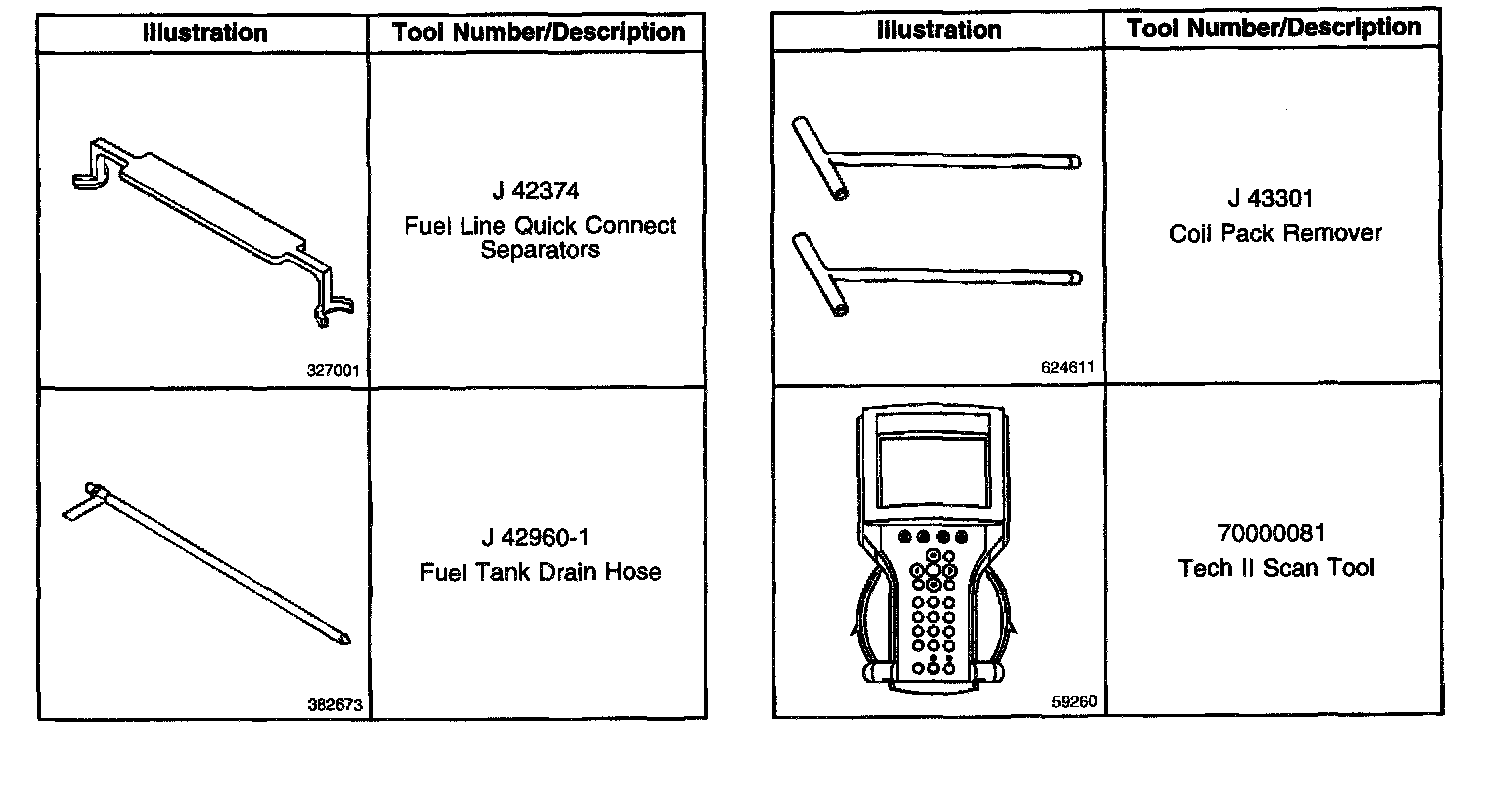

Special Tools And Equipment (Part 2 Of 3):

Special Tools And Equipment (Part 3 Of 3):

Not all of the tools listed are required for this specific application. If a special tool is required, the J number will be called out in the diagnostic procedure. The abilities and limitations of a tool must be known before the tool is used. This knowledge should include the scan tool operation, the proper use of test lamps, the jumper wires, and the DMM.

For information regarding the use of a particular scan tool, refer to the documentation provided with the tool by the manufacturer.
