Catalyst Shield: Service and Repair

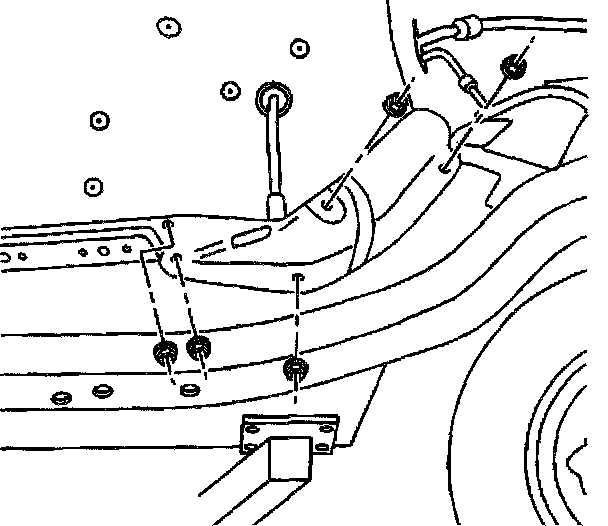

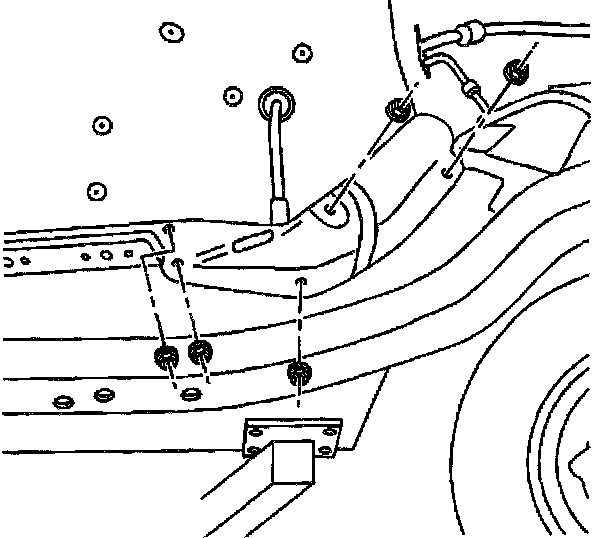

Catalytic Converter Heat Shield
Replacement

Removal Procedure





1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Remove the catalytic converter.
3. Remove the heat shield nuts.
4. Remove the heat shield.

Installation Procedure





1. Install the heat shield.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the heat shield nuts to the heat shield.
Tighten the heat shield nuts to 2 Nm (18 inch lbs.).
3. Install the catalytic converter.
4. Lower the vehicle.
