Window Shade: Service and Repair




Rear Sunshade Replacement

Removal Procedure




1. Remove the rear seat to back window panel. Refer to Rear Window Trim Finish Panel Replacement (Rear Window Trim Finish Panel Replacement).

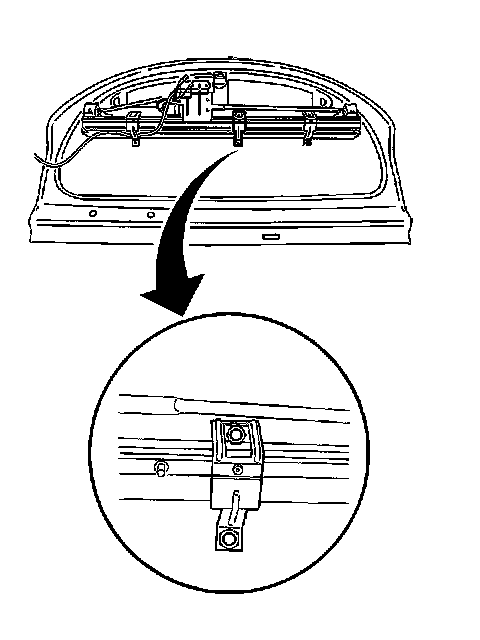

2. Remove 6 nuts retaining sunshade to the rear seat to back window panel.
3. Remove sunshade from the rear seat to back window panel.

Installation Procedure




1. Install the sunshade to rear seat to back window panel.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the 6 nuts to secure the sunshade to the rear seat to back window panel.

Tighten the nuts to 1 Nm (9 lb in).

3. Install the rear seat to back window panel. Refer to Rear Window Trim Finish Panel Replacement (Rear Window Trim Finish Panel Replacement).
