Front Camber Adjustment
Front Camber Adjustment 1.

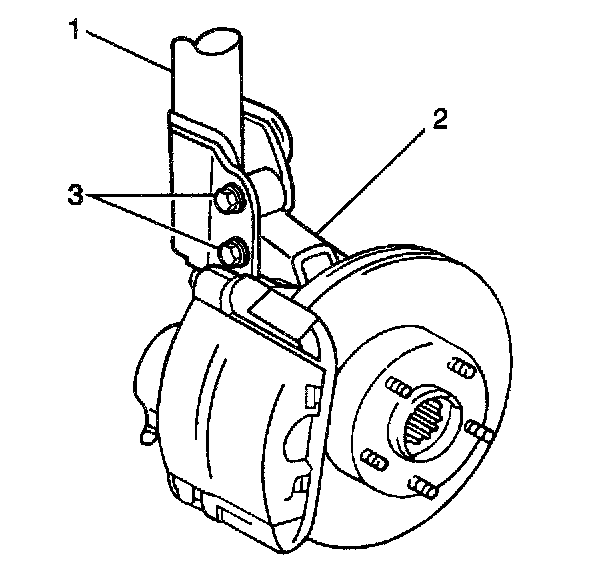

Loosen both strut to knuckle nuts (3) and drive the bolt partially out of the knuckle.
Notice Refer to Fastener Notice in Service Precautions.
2.
Set camber to specification using camber adjustment bolt.
-
Tighten both strut to knuckle nuts to
190 Nm (140 ft. lbs.).
-
Tighten camber adjustment bolt to
10 Nm (7 ft. lbs.).
