Transmission Control Systems

AUTOMATIC TRANSMISSION INLINE HARNESS CONNECTOR END VIEW

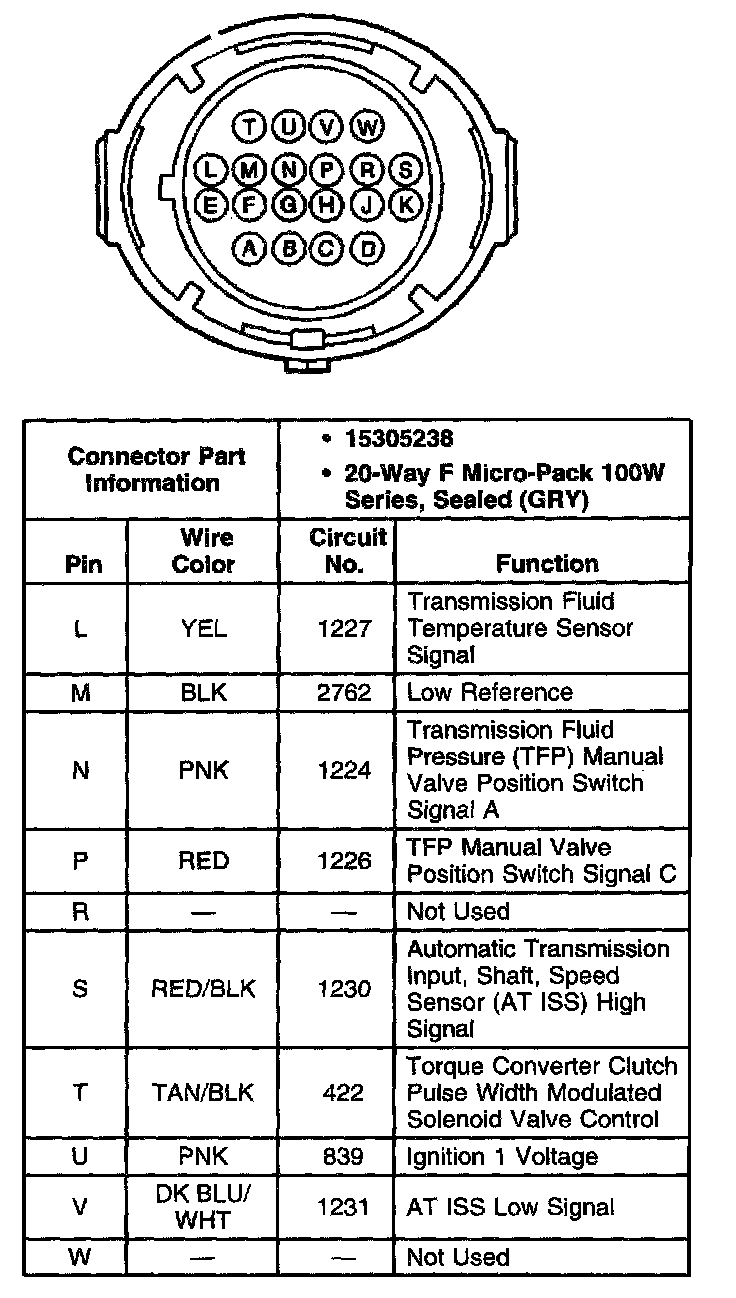

Engine Side

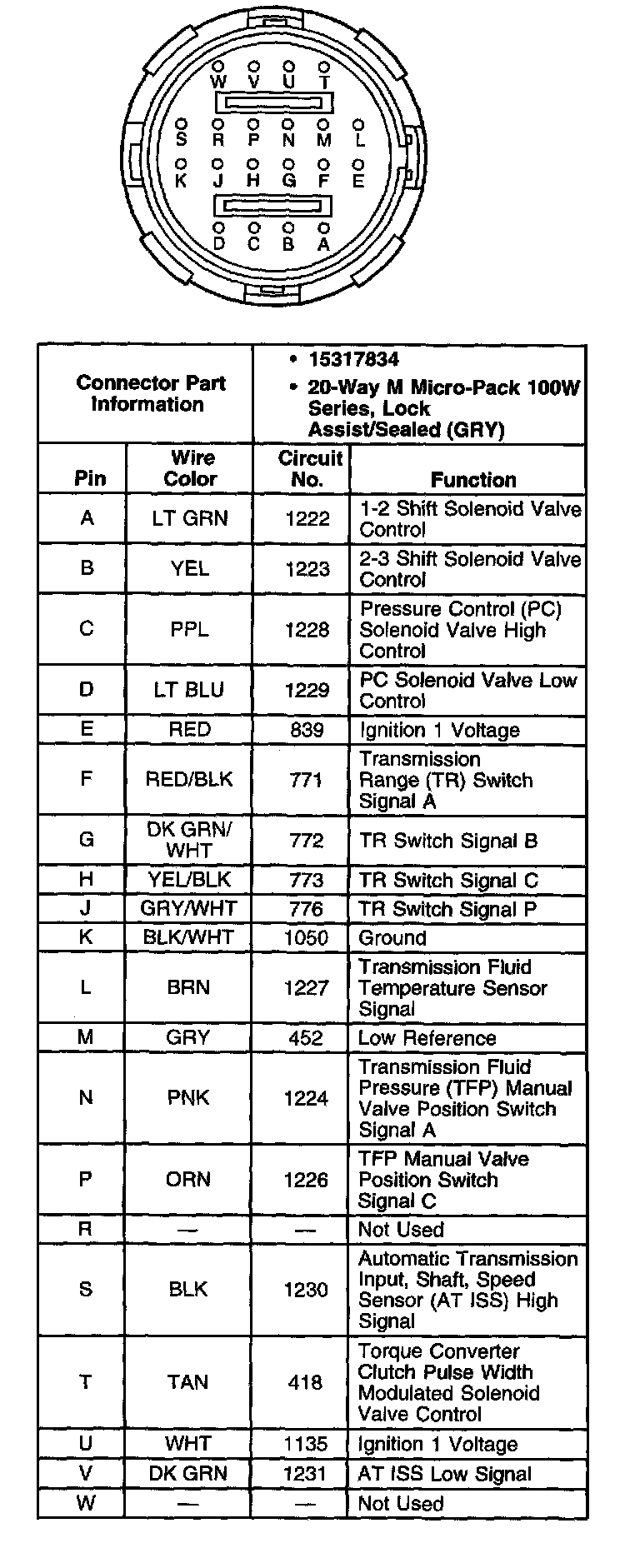

Transmission Side

AUTOMATIC TRANSMISSION INTERNAL CONNECTOR END VIEWS

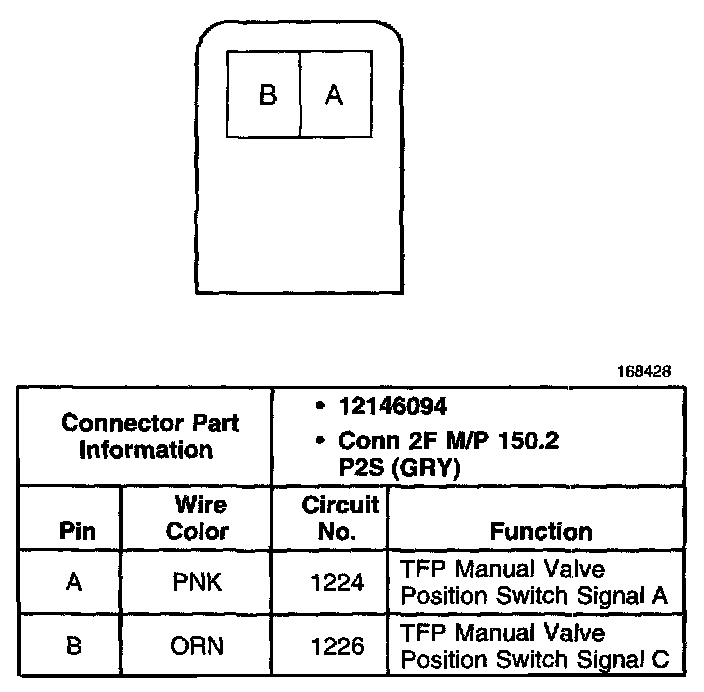

Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch Connector, Wiring Harness Side

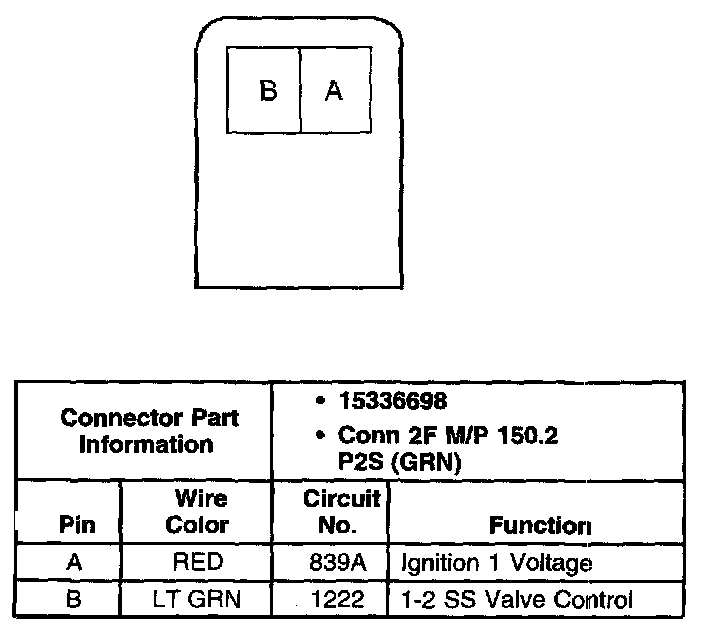

1-2 Shift Solenoid (SS) Valve Connector, Wiring Harness Side

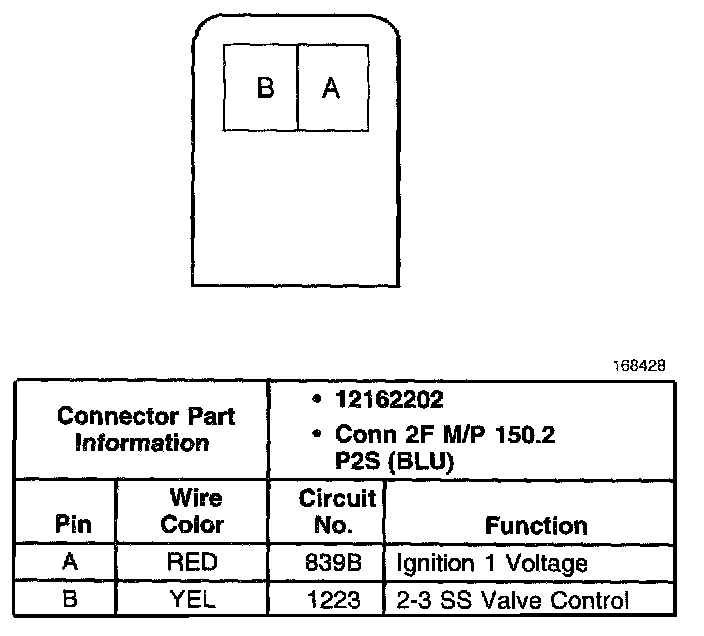

2-3 Shift Solenoid (SS) Valve Connector, Wiring Harness Side

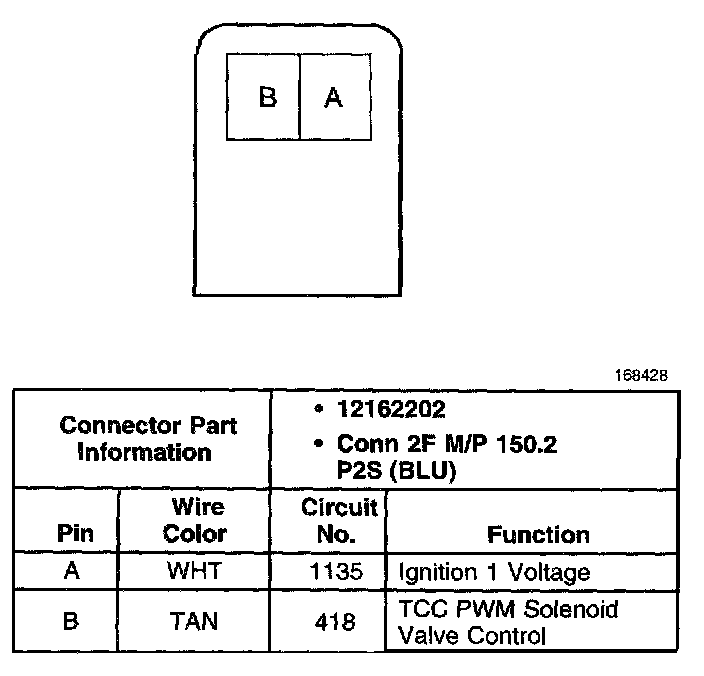

Torque Converter Clutch Pulse Width Modulated (TCC PWM) Solenoid Valve Connector, Wiring Harness Side

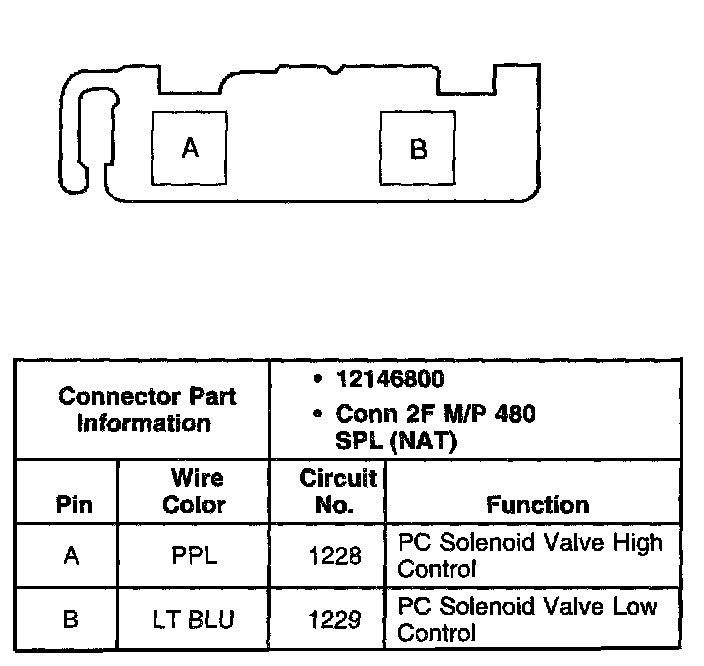

Pressure Control (PC) Solenoid Valve Connector, Wiring Harness Side

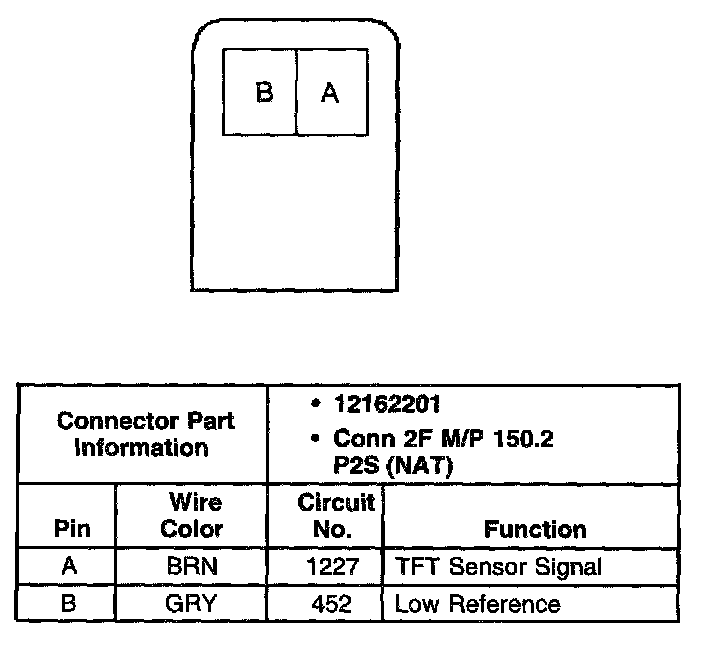

Transmission Fluid Temperature (TFT) Sensor Connector, Wiring Harness Side

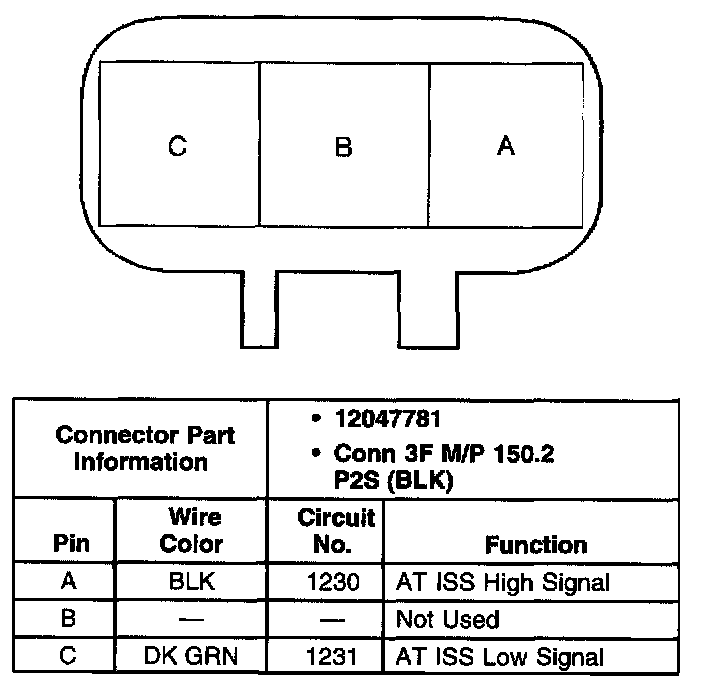

Automatic Transmission Input (Shaft) Speed Sensor (AT ISS) Connector, Wiring Harness Side





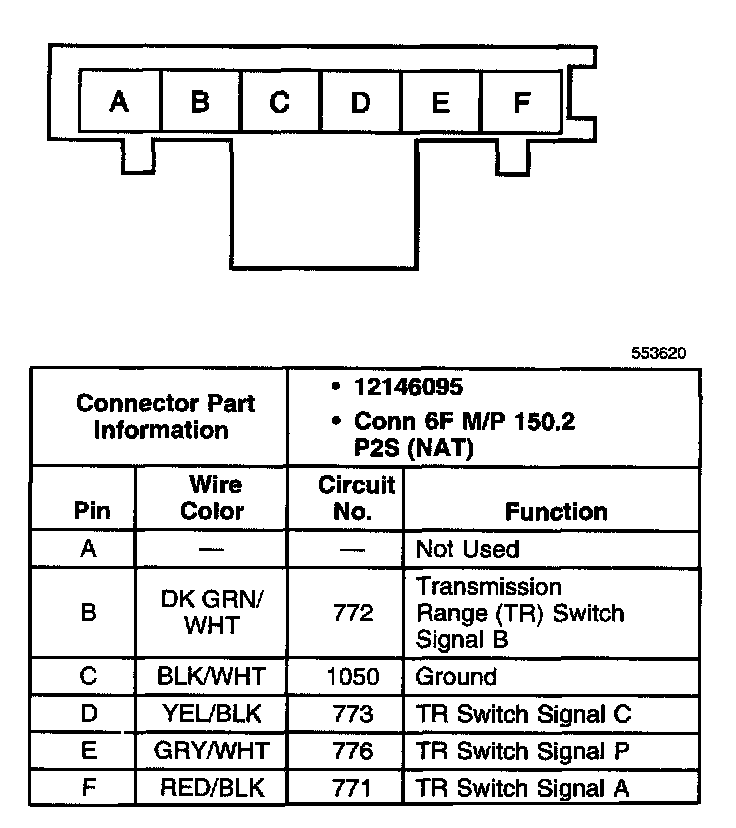

Internal Mode Switch (IMS) Connector, Wiring Harness Side

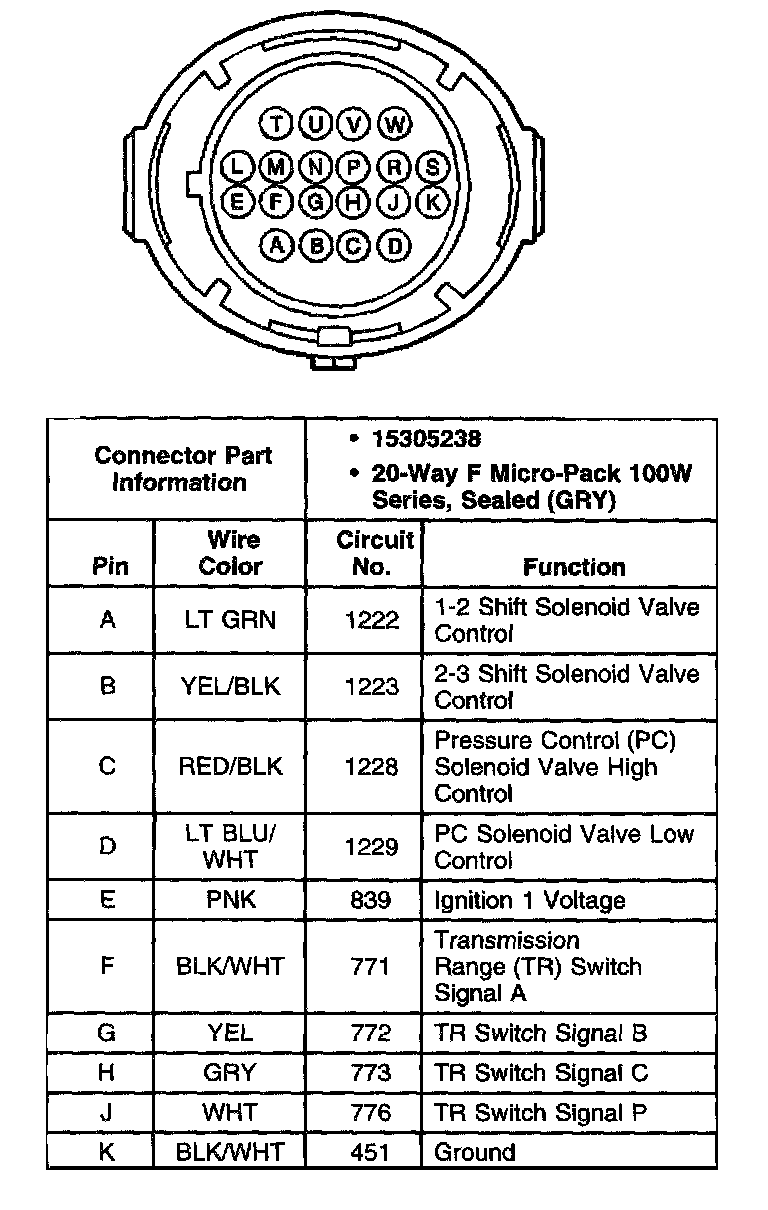

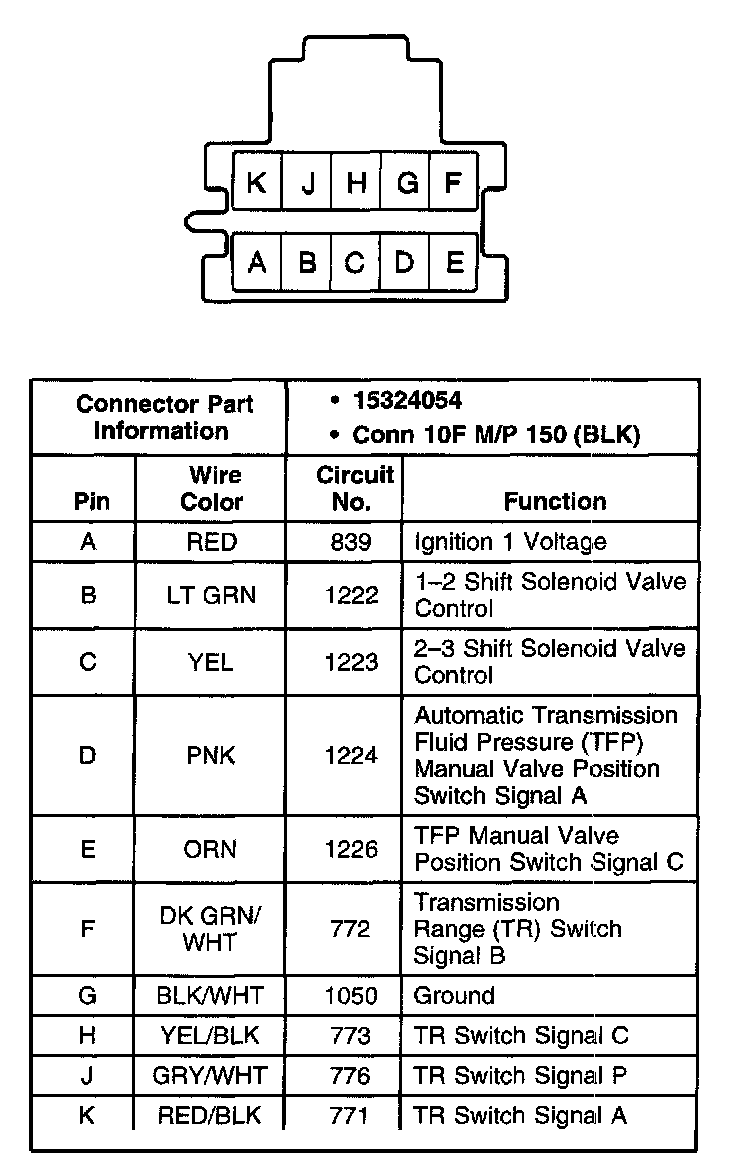

Inline Connector, Automatic Transmission Wiring Harness Assembly Side

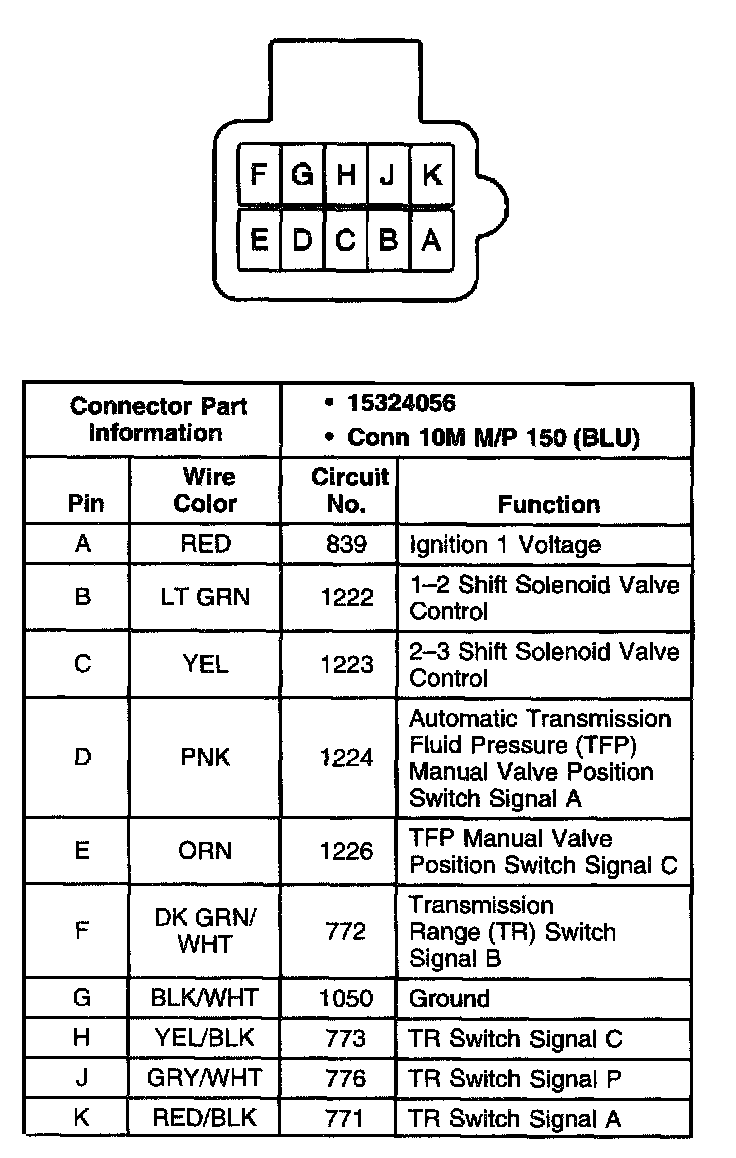

Inline Connector, Automatic Transmission Wiring Extension Harness Assembly Side
