Refrigerant High Temperature Sensor Replacement
REMOVAL PROCEDURE 1.
Disconnect the sensor electrical connector.
2.

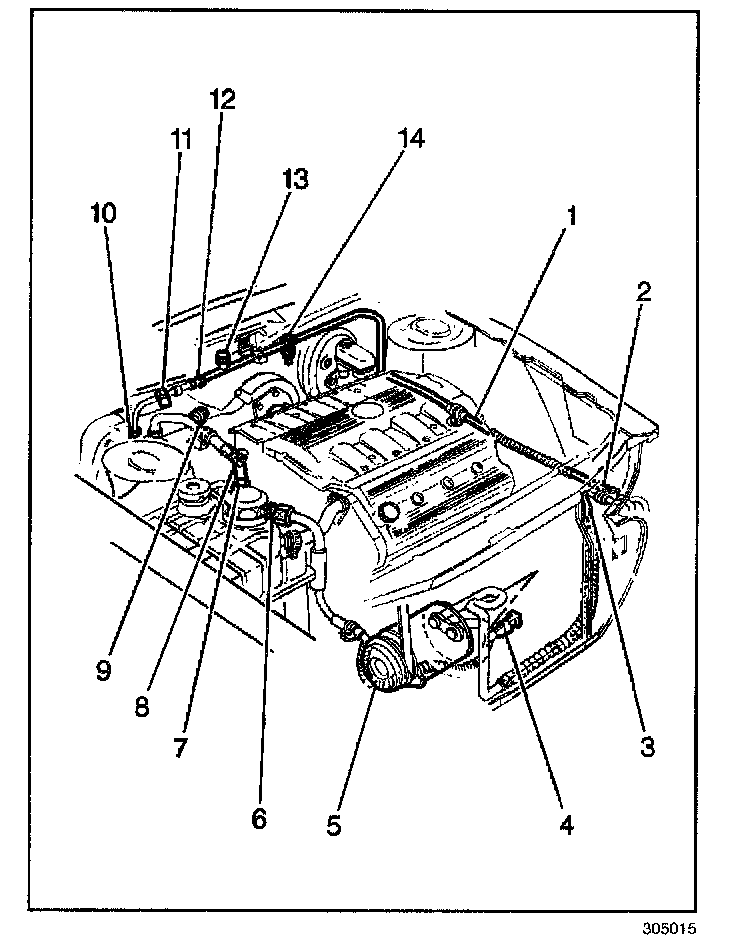

Remove the sensor (14) from the line.
INSTALLATION PROCEDURE 1.
Install the low-pressure sensor (14) to the line.
2.
Connect the electrical connector to the sensor (14).
