Sunload and Twilight Sentinel Sensor Replacement

SUNLOAD AND TWILIGHT SENTINEL SENSOR REPLACEMENT

REMOVAL PROCEDURE




1. Remove the defroster grille.

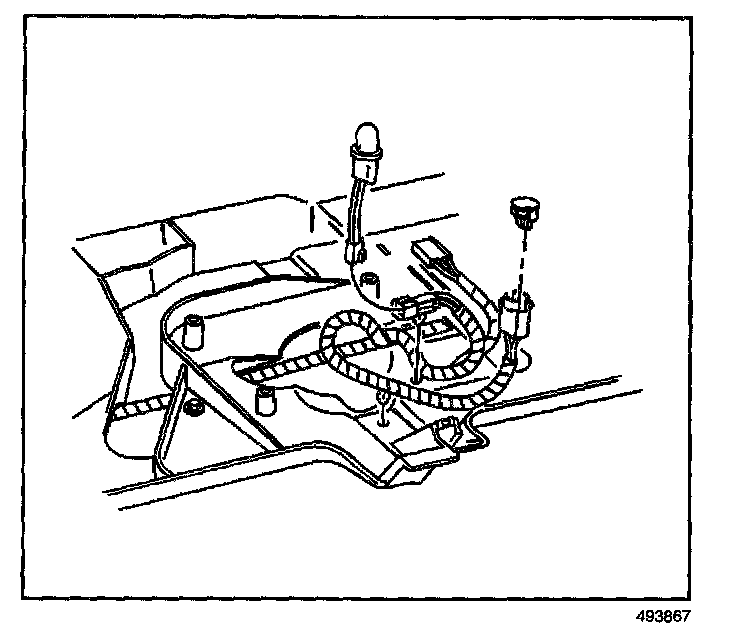

2. Disconnect the sunload (2) and the twilight (3) sensors from the defroster grille (1) by turning a quarter turn.




3. Remove the twilight sensor from the instrument panel harness socket.
4. Remove the instrument panel upper trim panel.
5. Disconnect the sunload sensor electrical connector.

INSTALLATION PROCEDURE




1. Connect the sun load sensor electrical connector.
2. Install the instrument panel upper trim panel.
3. Install the twilight sensor to the instrument panel harness socket.




4. Install the sensors (2, 3) to the defroster grille (1) by turning a quarter turn.
5. Install the defroster grille.
