Vacuum Controller: Service and Repair

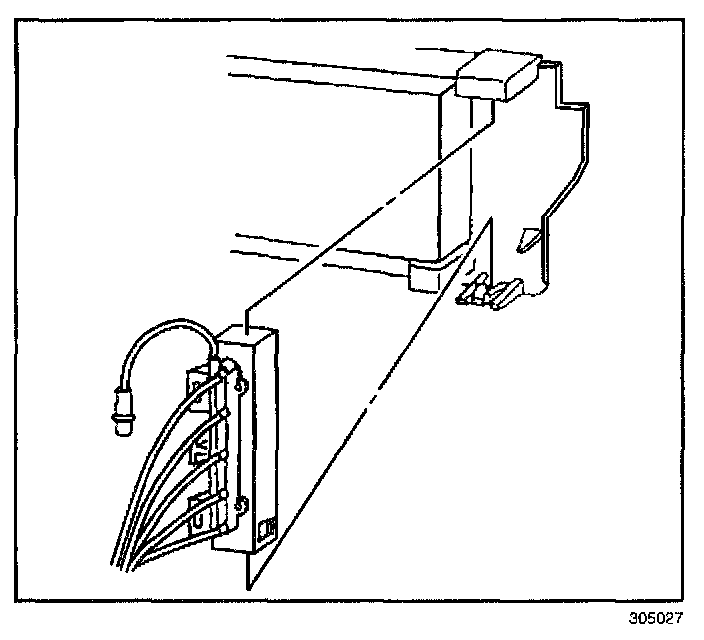

VACUUM CONTROL ASSEMBLY REPLACEMENTREMOVAL PROCEDURE 1.
Remove the right insulator panel.
2.
Remove the storage compartment.
3.
Disconnect the vacuum connector.
4.
Remove the vacuum and electric solenoid.

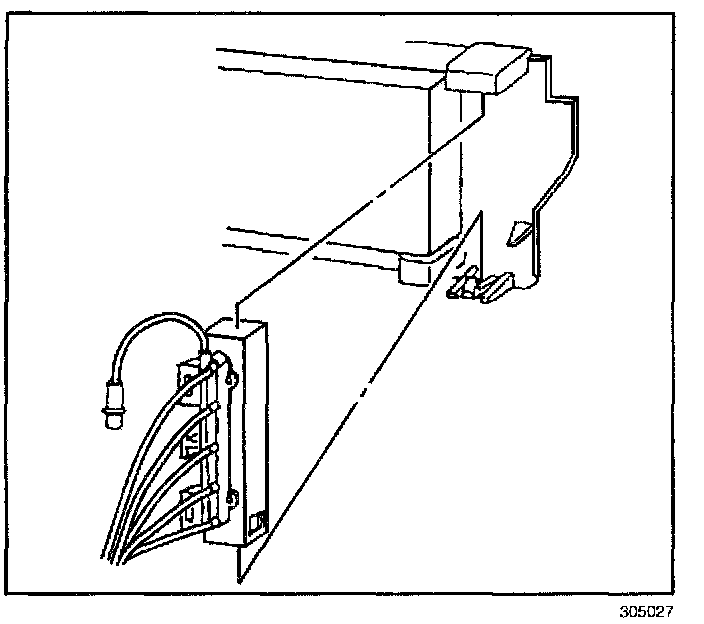

INSTALLATION PROCEDURE 1.
Install the vacuum and electric solenoid.
2.
Connect the vacuum connector.
3.
Install the storage compartment.
4.
Install the right insulator panel.
