Front Camber Adjustment
Front Camber Adjustment 1.

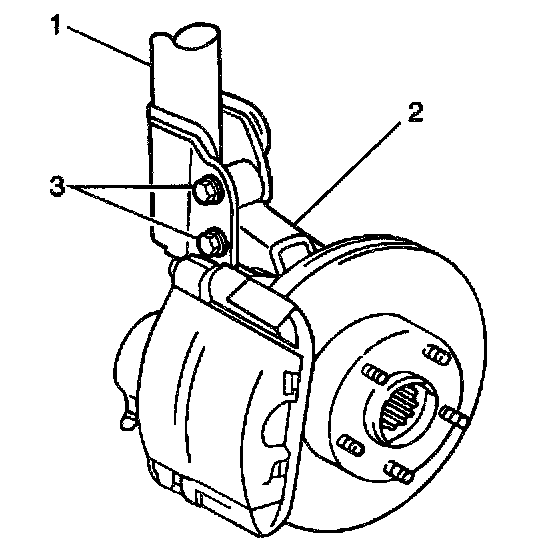

Loosen both strut to knuckle nuts (3) and drive the bolt partially out of the knuckle.
Notice: Refer to fastener Notice in Service Precautions.
2.
Set camber to specification using camber adjustment bolt.
-
Tighten both strut to knuckle nuts to
190 Nm (140 ft. lbs.). -
Tighten camber adjustment bolt to
10 Nm (7 ft. lbs.).
