Rear Toe Adjustment
Rear Toe Adjustment 1.
Loosen the inner toe link bolts.
Notice: Refer to fastener Notice in Service Precautions.
2.

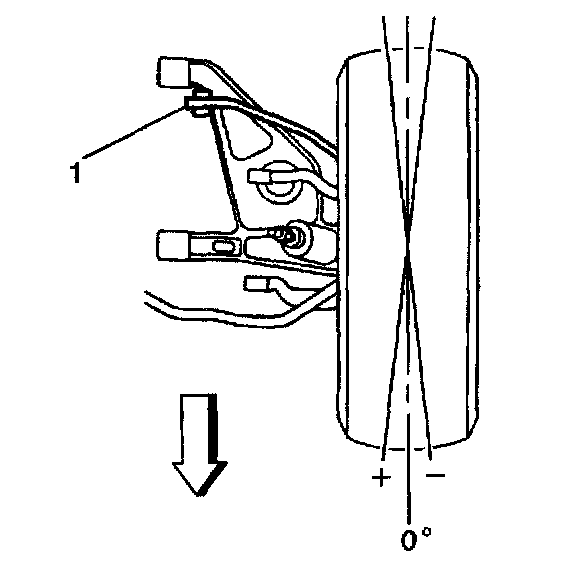

Insert a screwdriver or pry bar between the inside rear toe link mounting bolt and the rear support assembly. Move the toe link (1) to change toe. Set to the specification.
Tighten the toe link mounting bolt to
90 Nm (66 ft. lbs.).
