Evaporator Core: Service and Repair



REMOVAL PROCEDURE






1. Remove the heater/vent module. Service and Repair
2. Remove the heater/vent module screws.
3. Separate the heater/vent module.

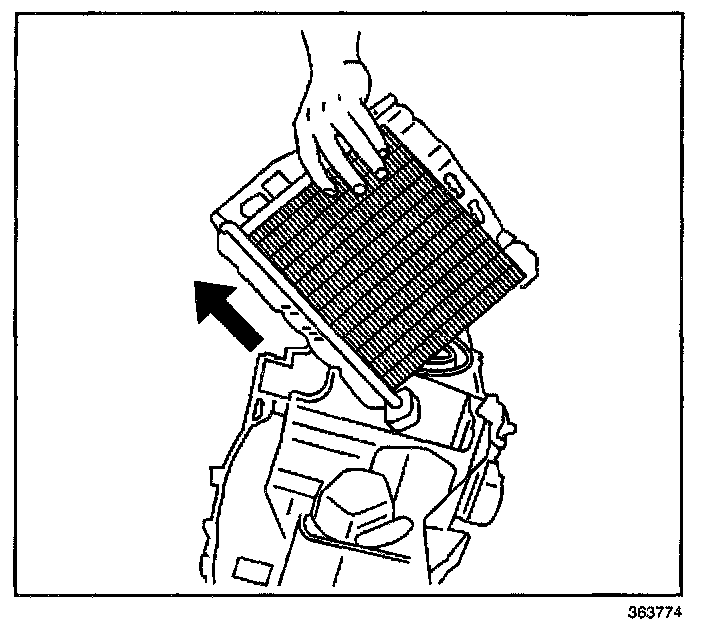

4. Remove the evaporator core from the heater/vent module.

INSTALLATION PROCEDURE

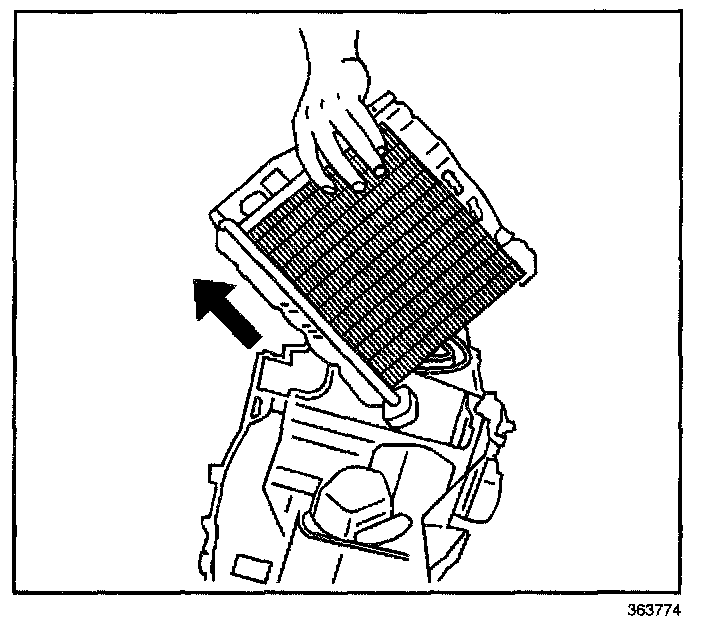

1. Install the evaporator core to the heater/vent module.
2. Install the heater/vent module halves.

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the heater/vent module screws.

Tighten
Tighten the screws to 1.6 Nm (14 lb in).

4. Install the heater/vent module.
5. Evacuate and recharge the A/C system. Refer to Refrigerant Recovery and Recharging.
6. Leak test the fittings of the component using the J 39400-A.
