Antenna Control Module: Service and Repair

RADIO ANTENNA MODULE REPLACEMENT

REMOVAL PROCEDURE




The Radio control module and the Radio Antenna module cannot be replaced individually.
1. Lower the rear of the headliner. Refer to Headliner Replacement in Interior Trim.

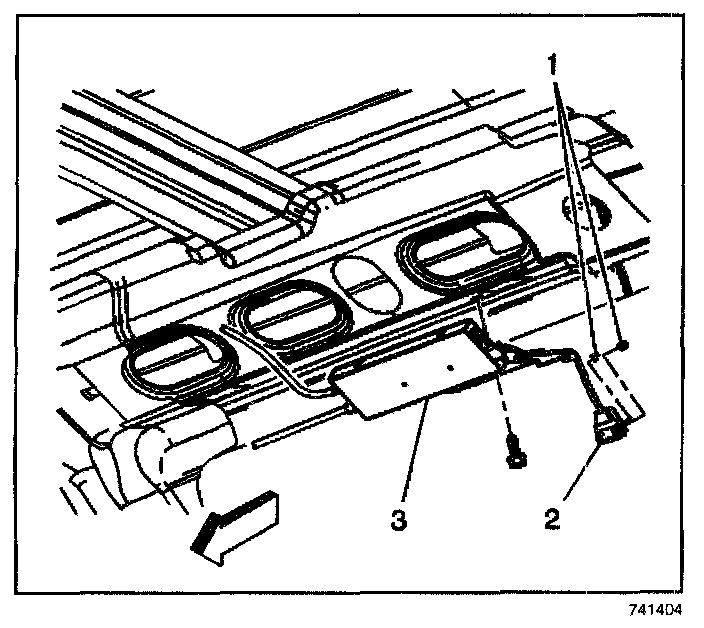

2. Disconnect the wire harness (2) attached to the rear quarter glass panel.
3. Remove the module (3) retaining bolt.
4. Disconnect the antenna cable from the module.
5. Remove the antenna module from the roof.
6. Remove the radio control module.

INSTALLATION PROCEDURE




1. Install the radio control module.
2. Install the antenna module to the roof.

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the module retaining bolt.

Tighten
Tighten the retaining bolt to 9 N.m (80 lb in).

4. Connect the antenna cable to the module (3).

5. Connect the wire harness (2) to the rear quarter glass panel.
6. Install the rear of the headliner.
