Speaker

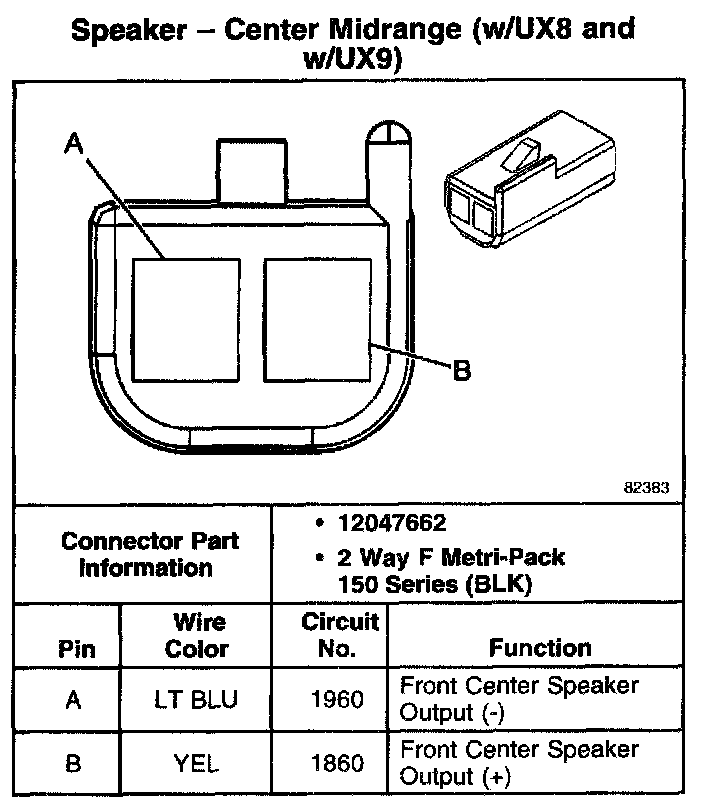

Speaker - Center Midrange (W/UX8 And W/UX9):

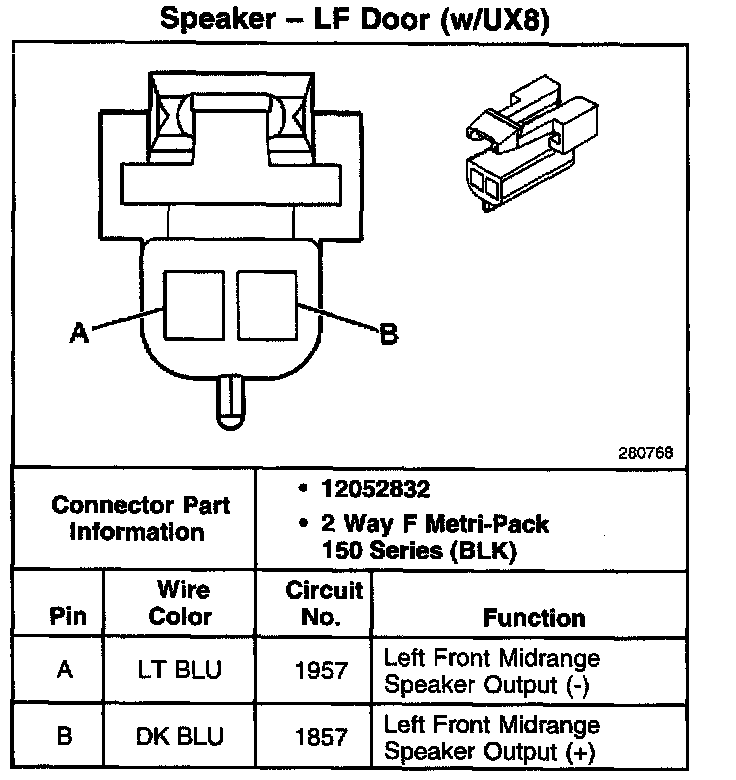

Speaker - LF Door (W/UX8):

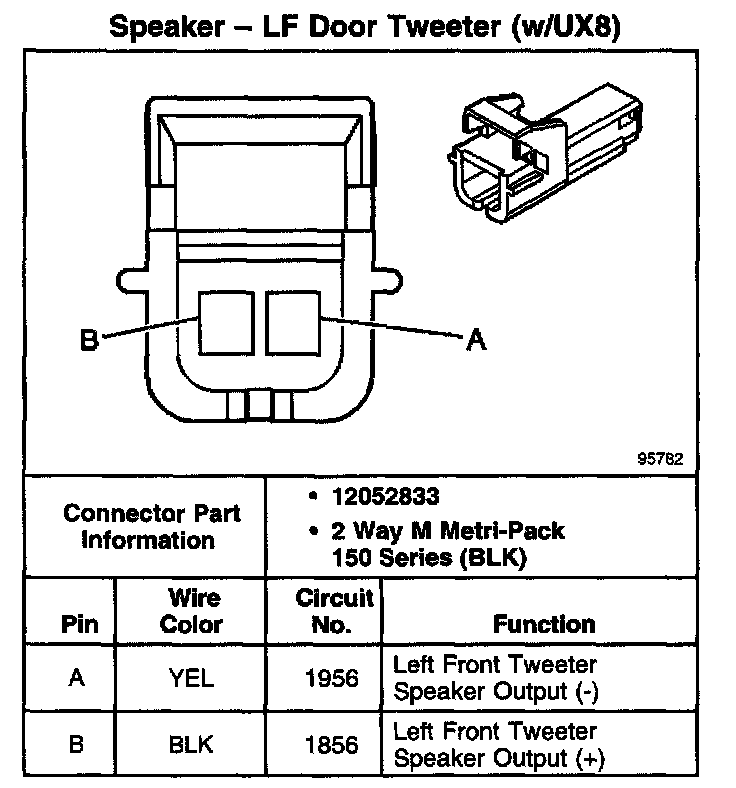

Speaker - LF Door Tweeter (W/UX8):

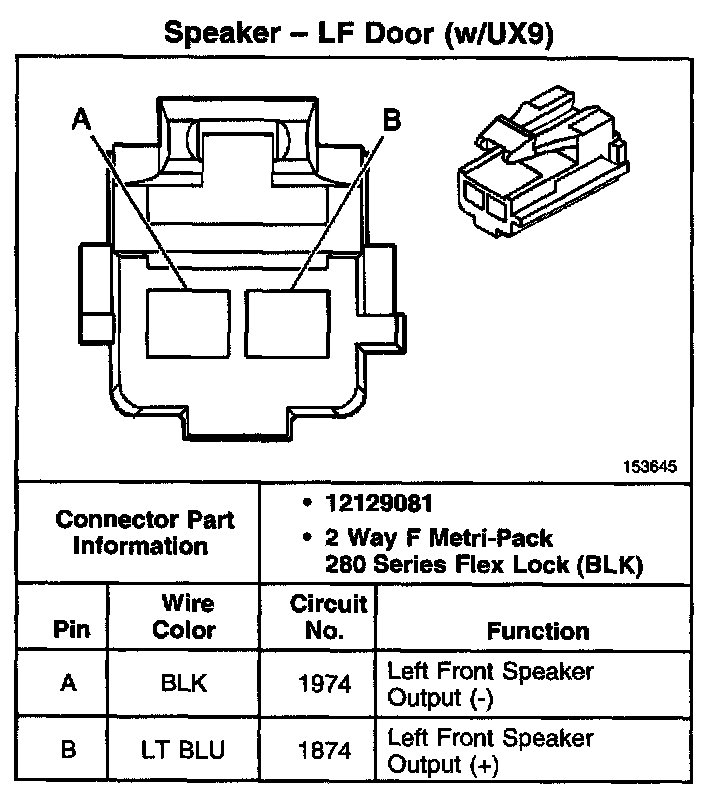

Speaker - LF Door (W/UX9):

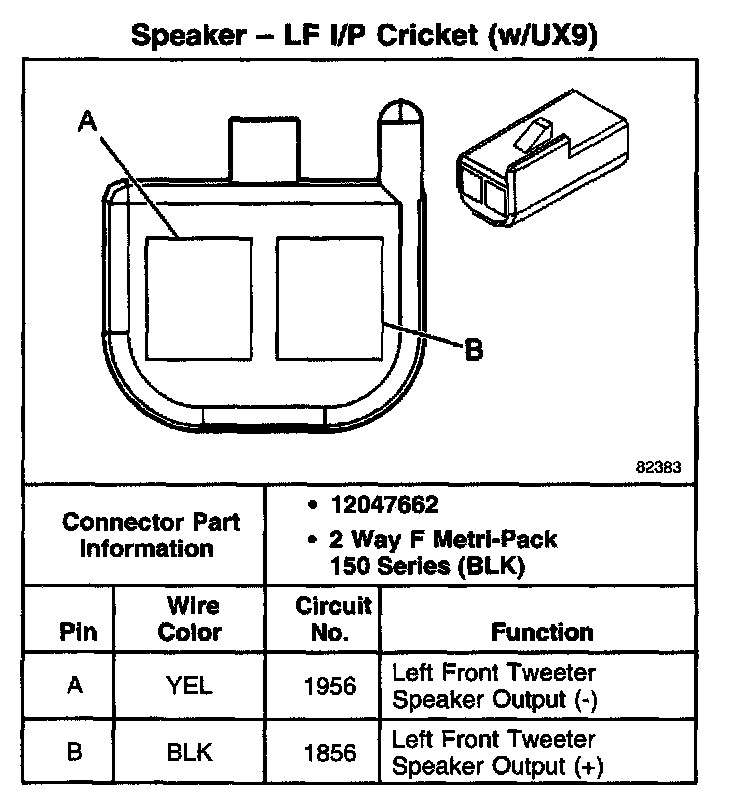

Speaker - LF I/P Cricket (W/UX9):




Speaker - LR Door Twiddler (W/UX8 And W/UX9):

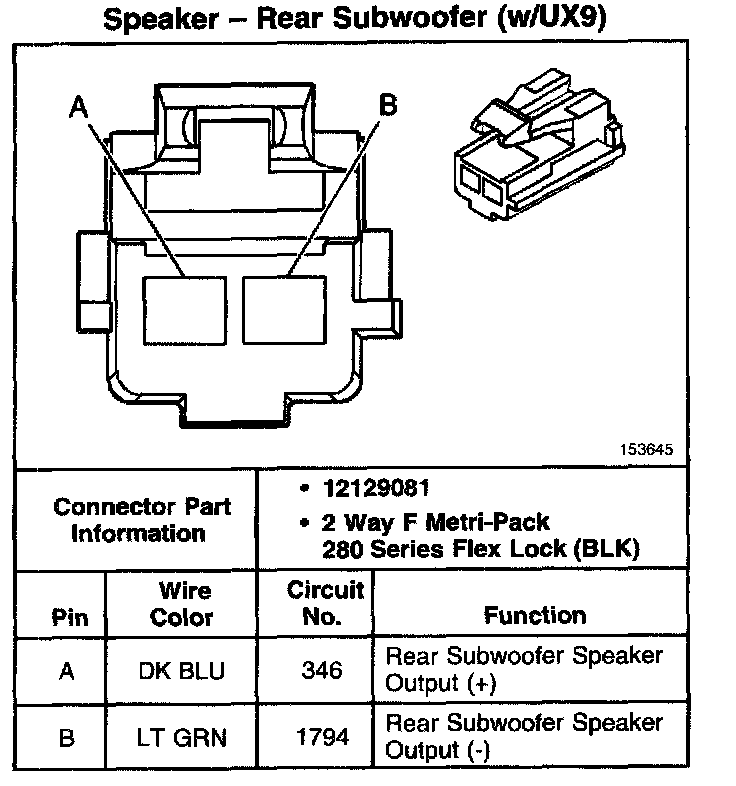

Speaker - Rear Subwoofer (W/UX9):

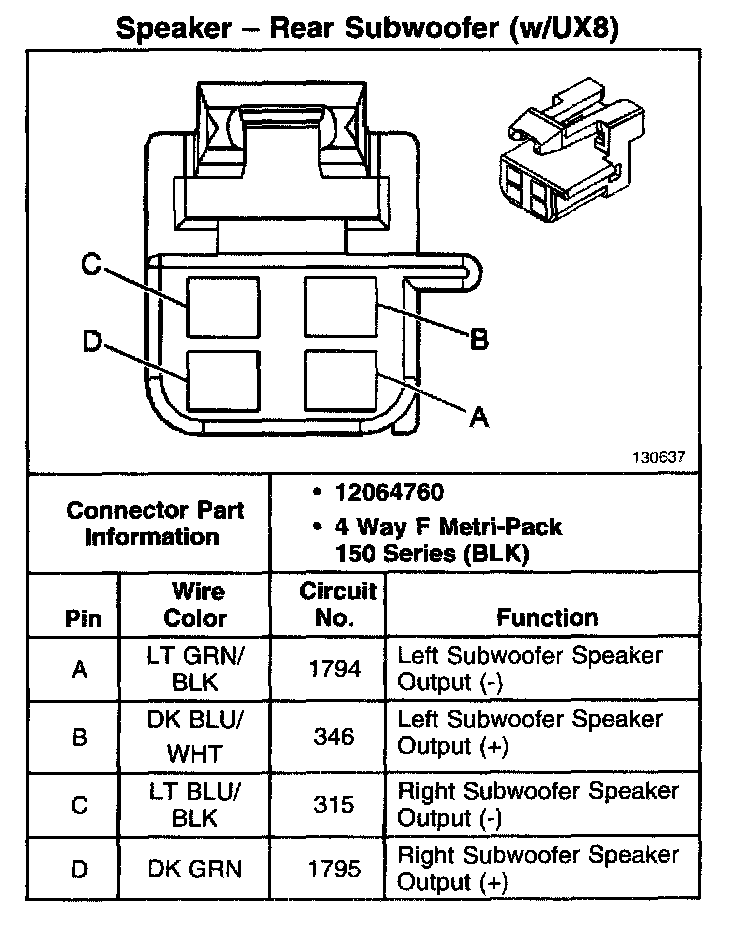

Speaker - Rear Subwoofer (W/UX8):

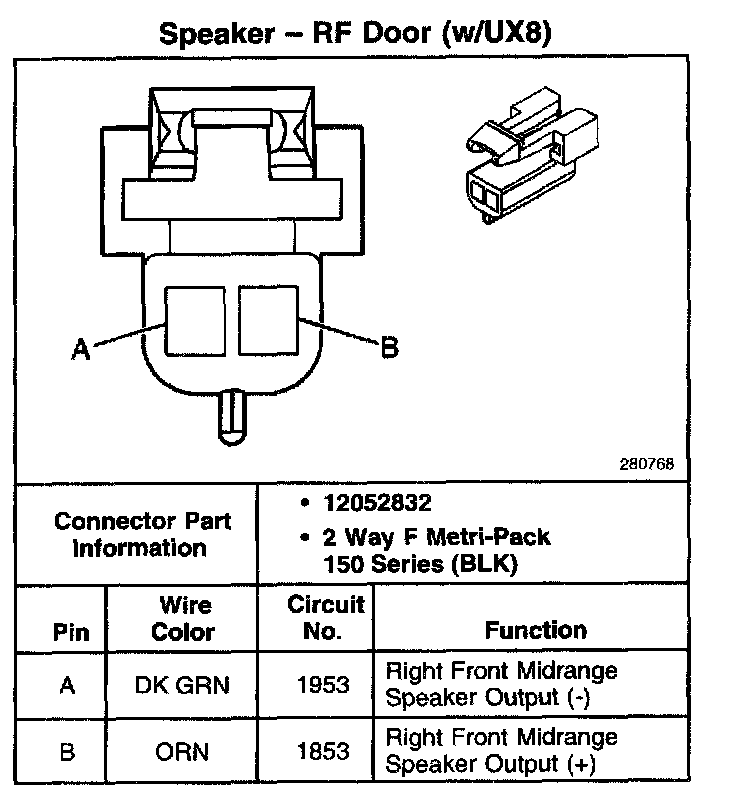

Speaker - RF Door (W/UX8):

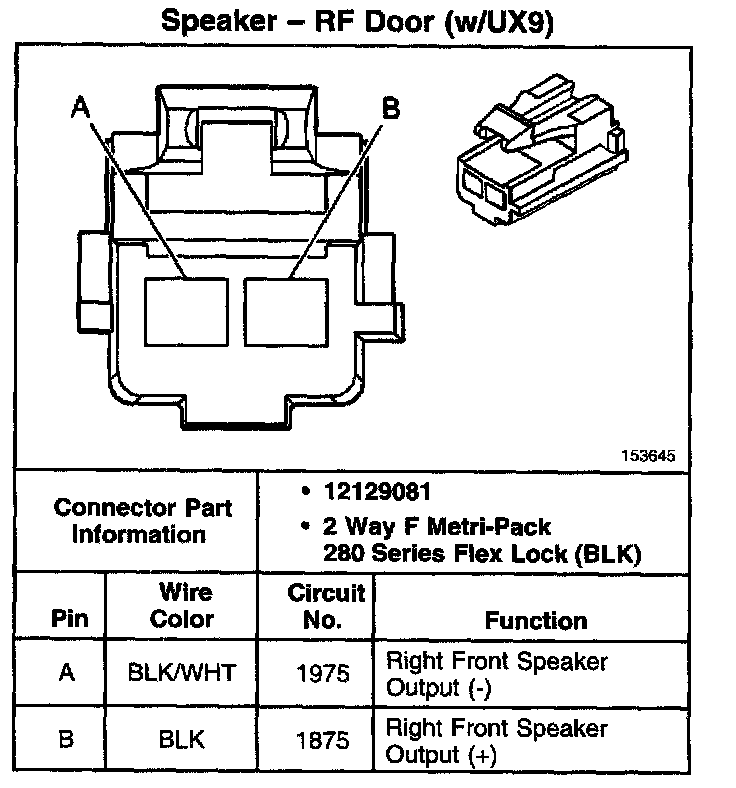

Speaker - RF Door (W/UX9):

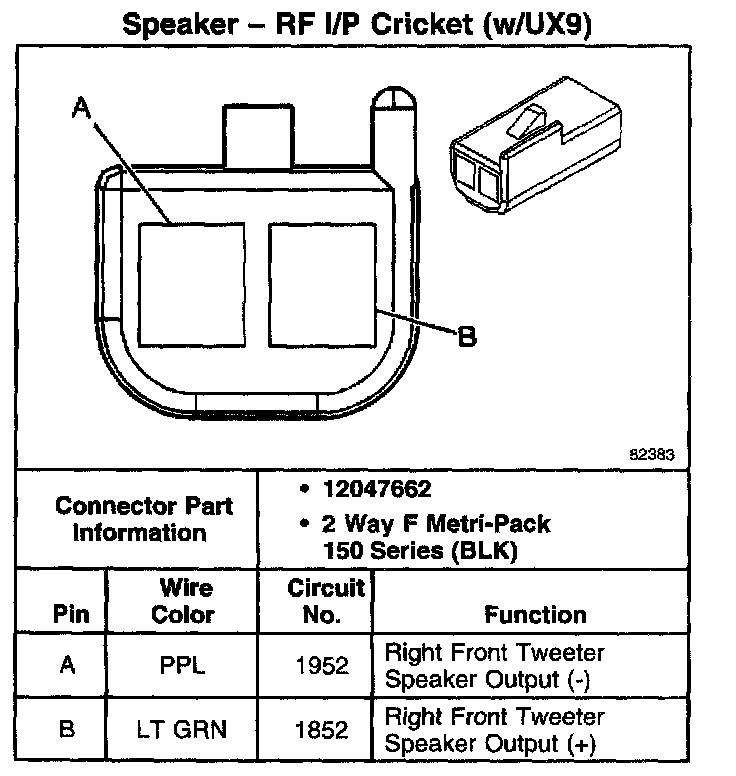

Speaker - RF I/P Cricket (W/UX9):

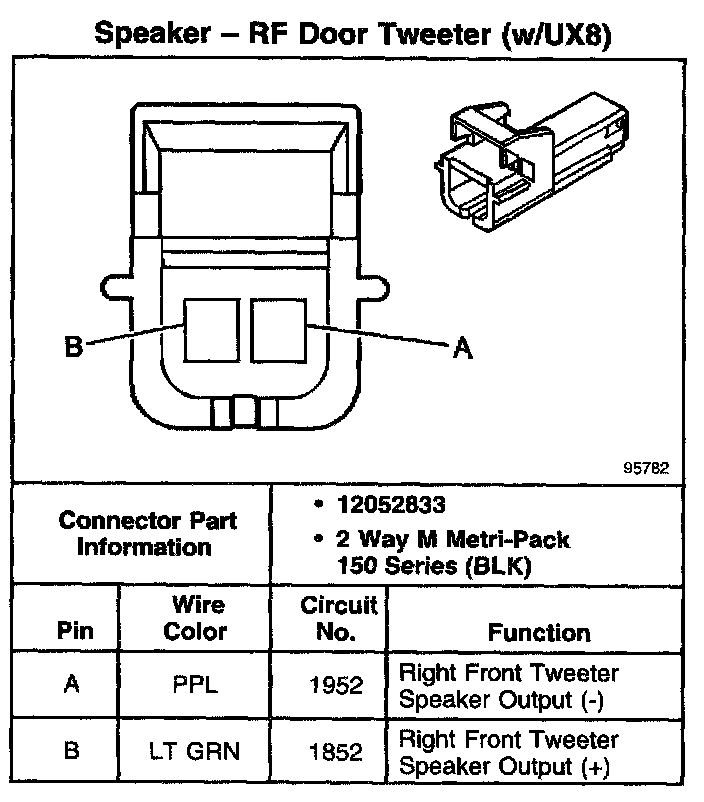

Speaker - RF Door Tweeter (W/UX8):

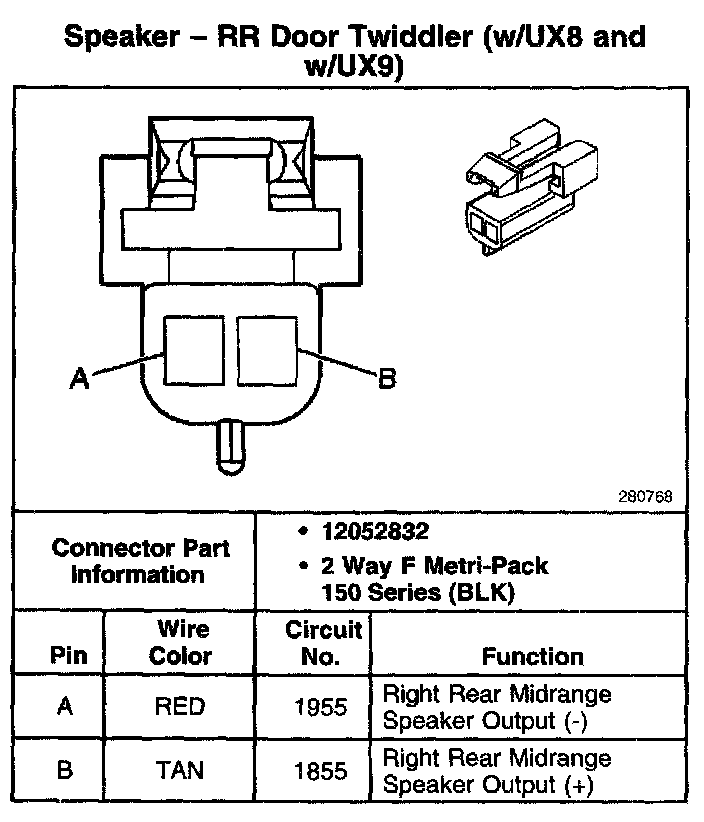

Speaker - RR Door Twiddler (W/UX8 And W/UX9):





For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application ID". RPO Codes
