Master Connector List

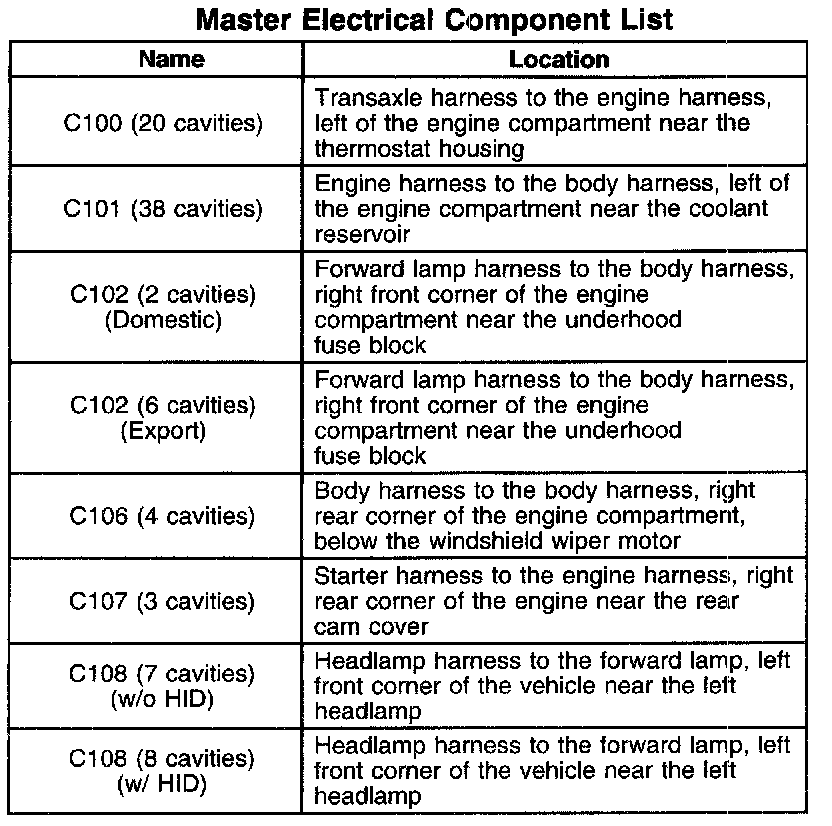

C100 (20 Cavities) - C108 (8 Cavities) (W/HID):

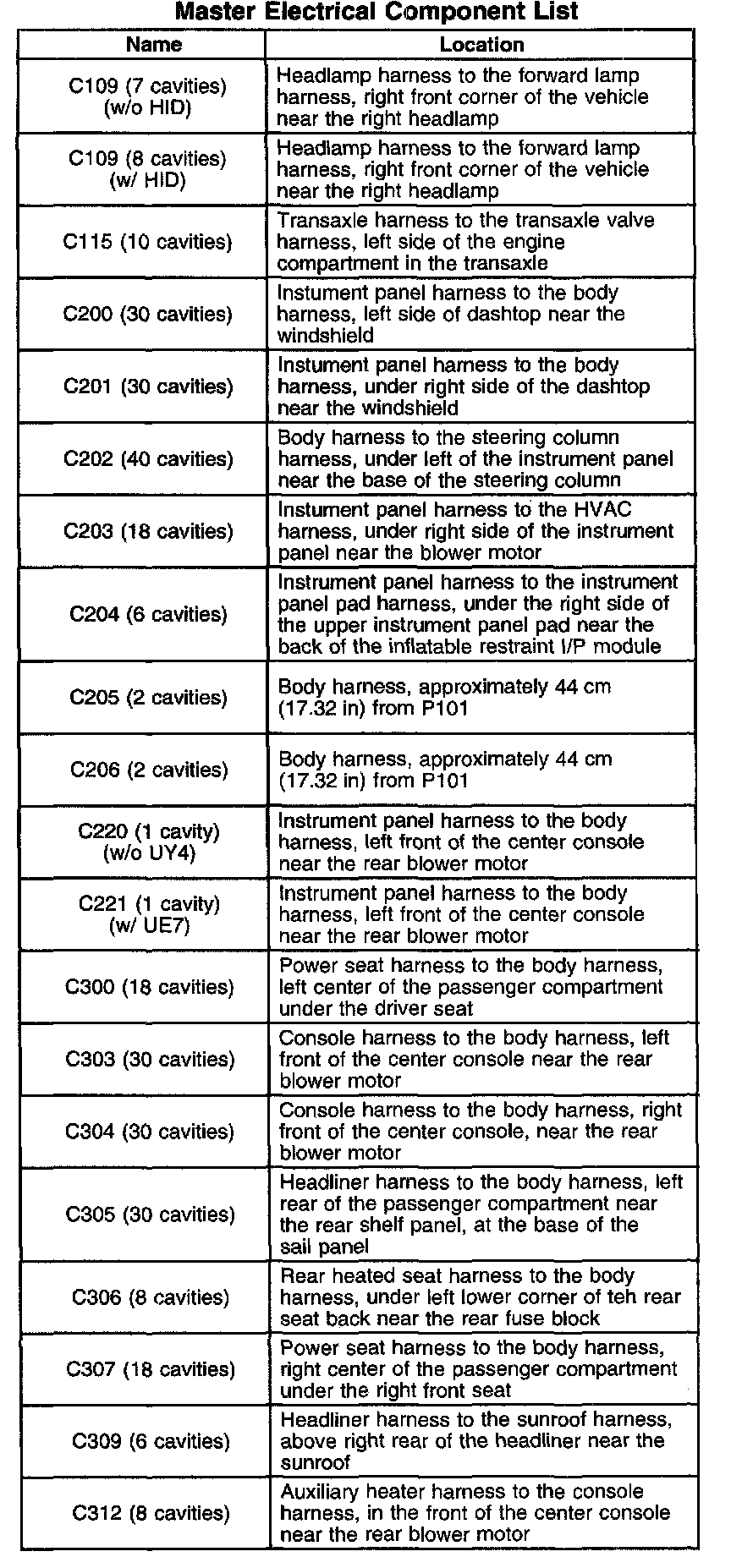

C109 (7 Cavities) (W/O HID) - C312 (8 Cavities):

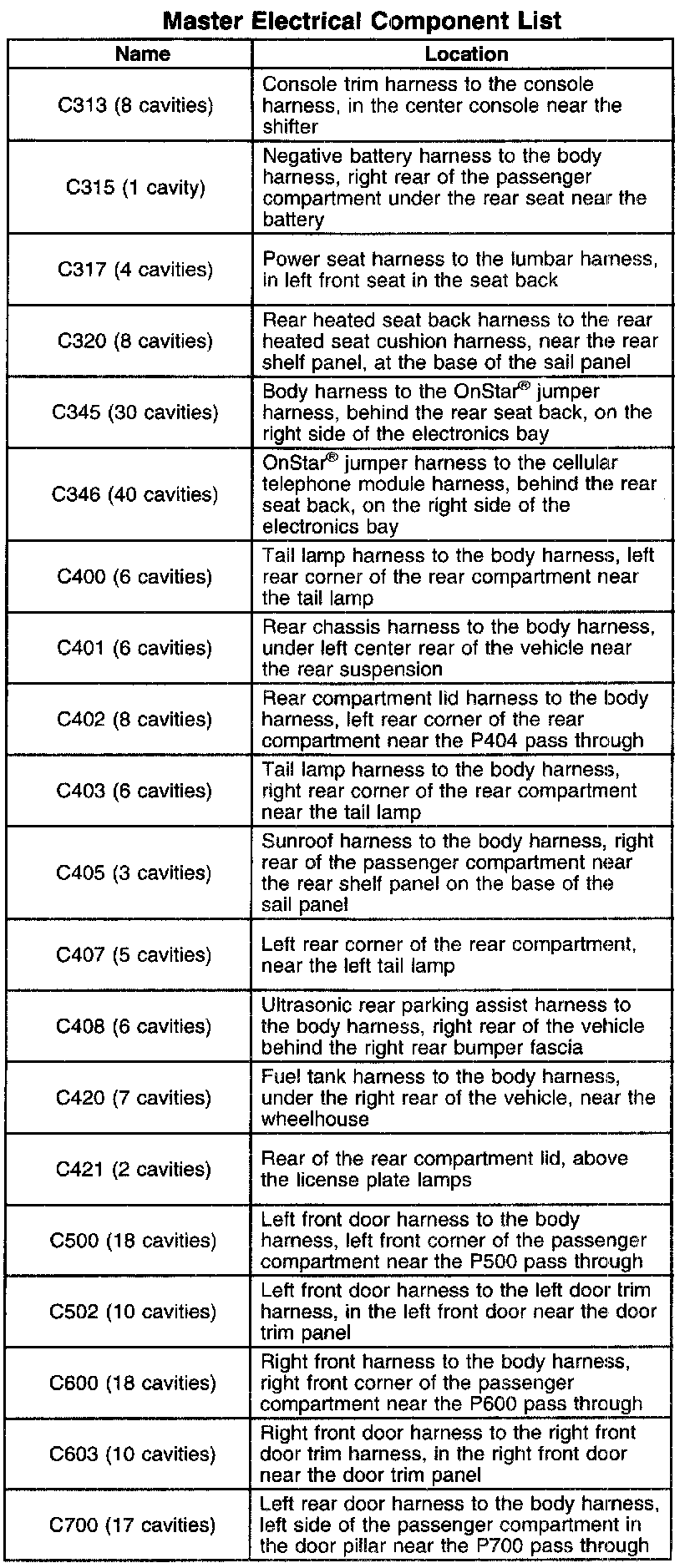

C313 (8 Cavities) - C700 (17 Cavities):
C702 (18 Cavities) - C802 (18 Cavities):
For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application
RPO Codes
