Master Splice/Splice Pack List

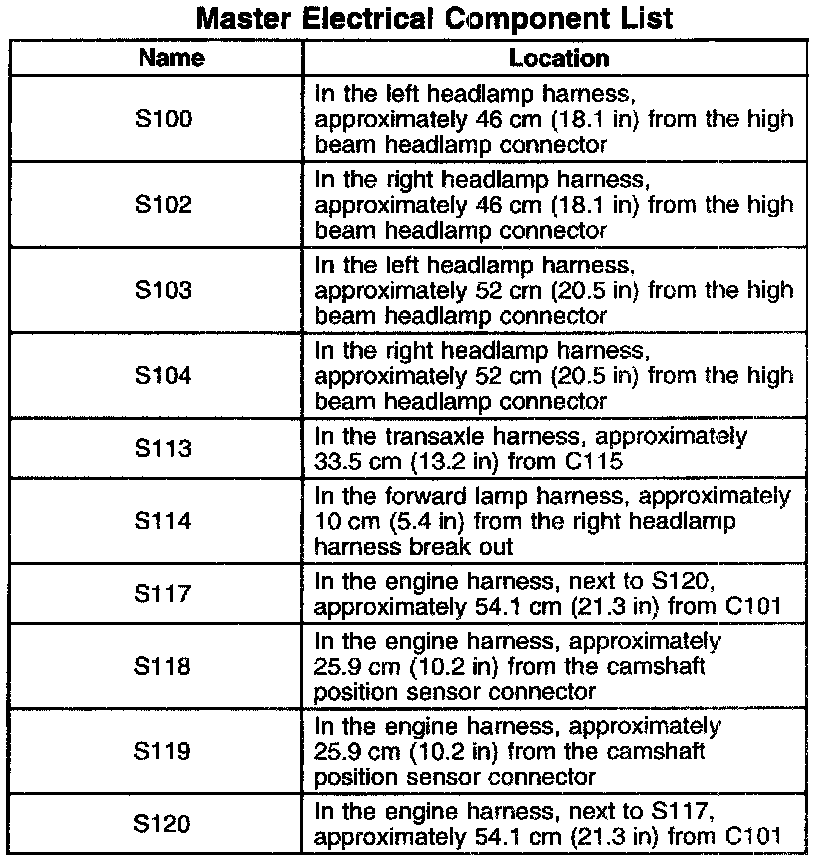

S100 - S120:

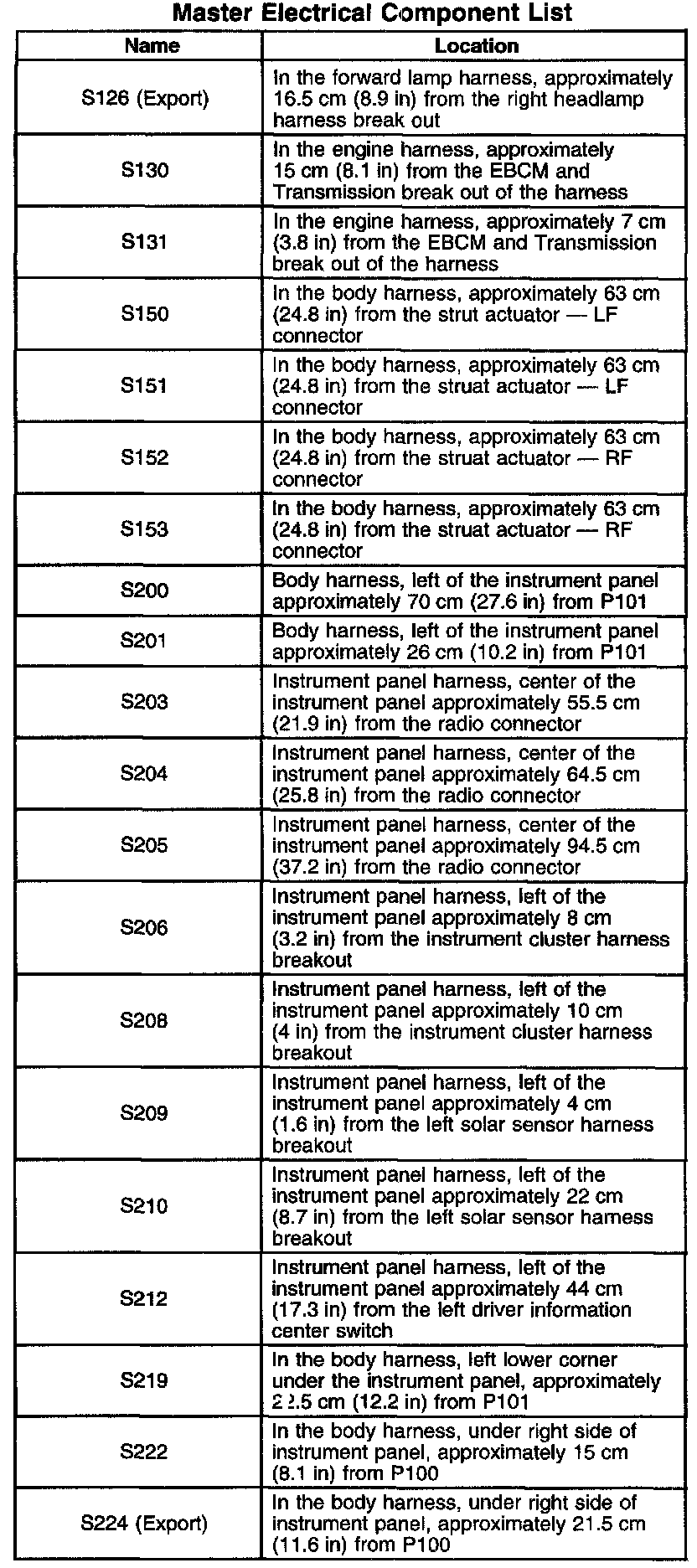

S126 (Export) - S224 (Export):

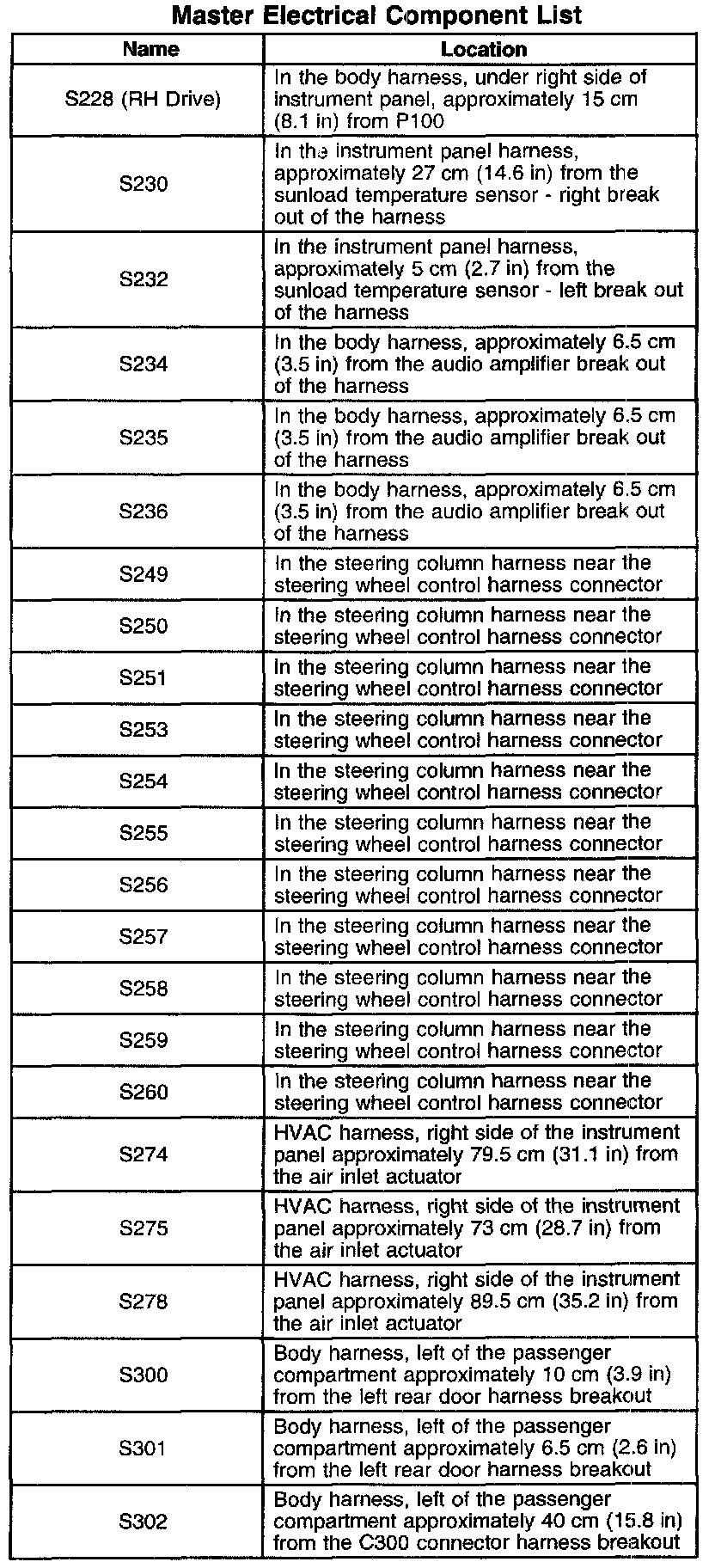

S228 (RH Drive) - S302:

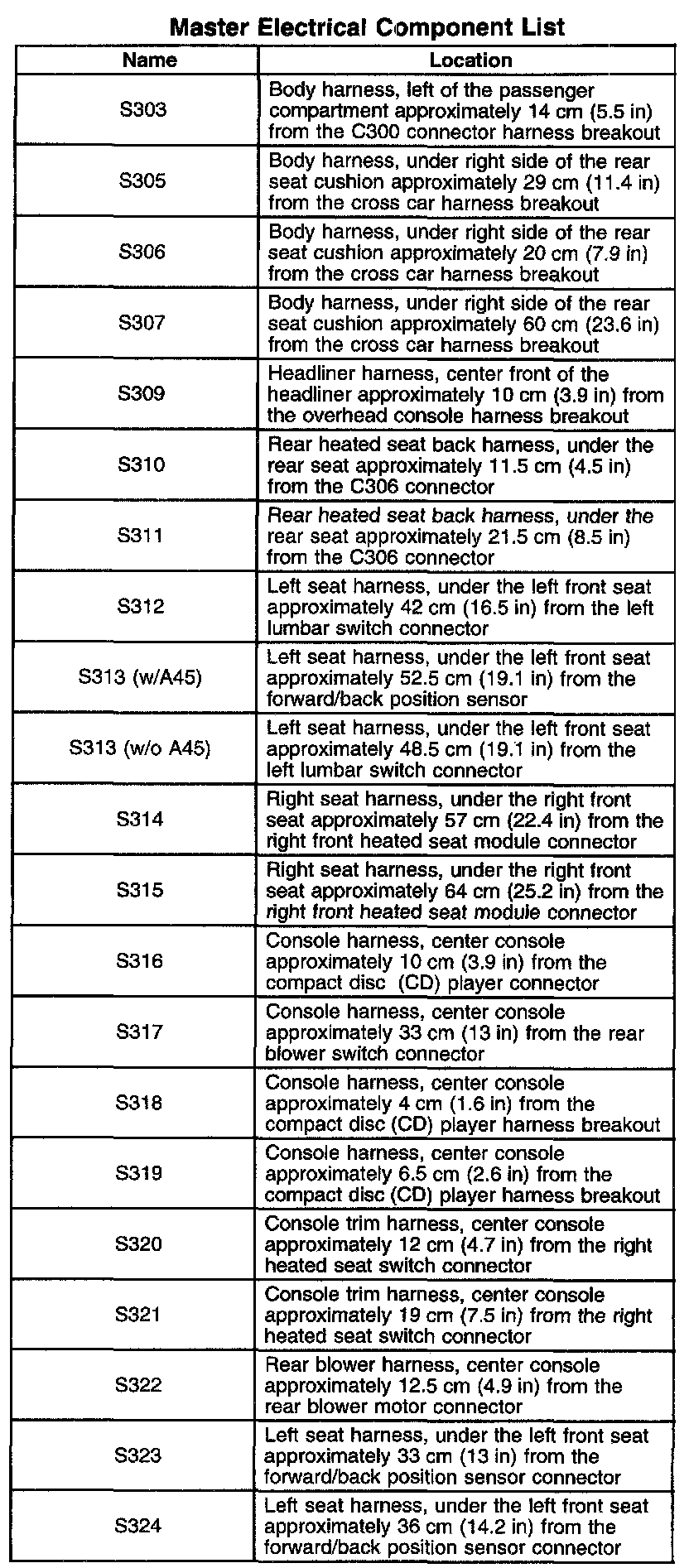

S303 - S324:

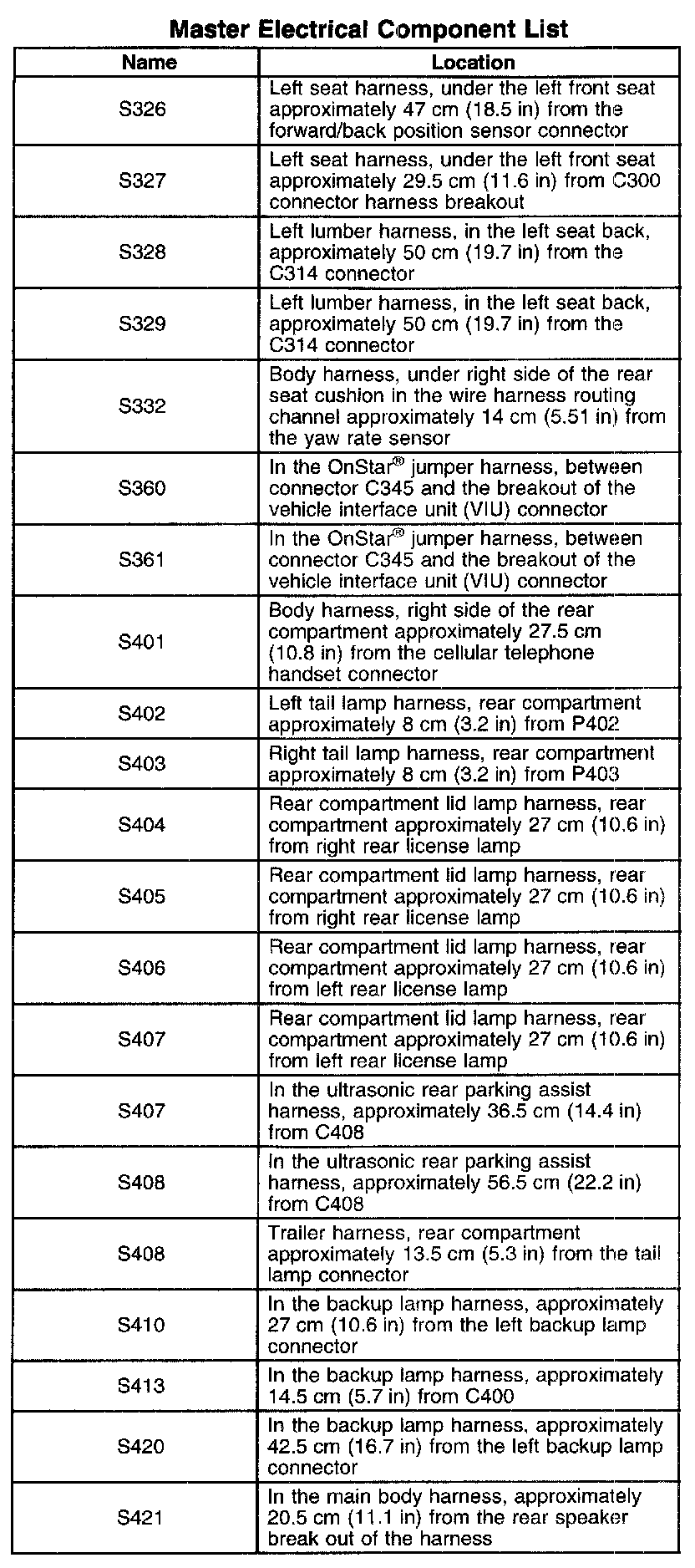

S326 - S421:

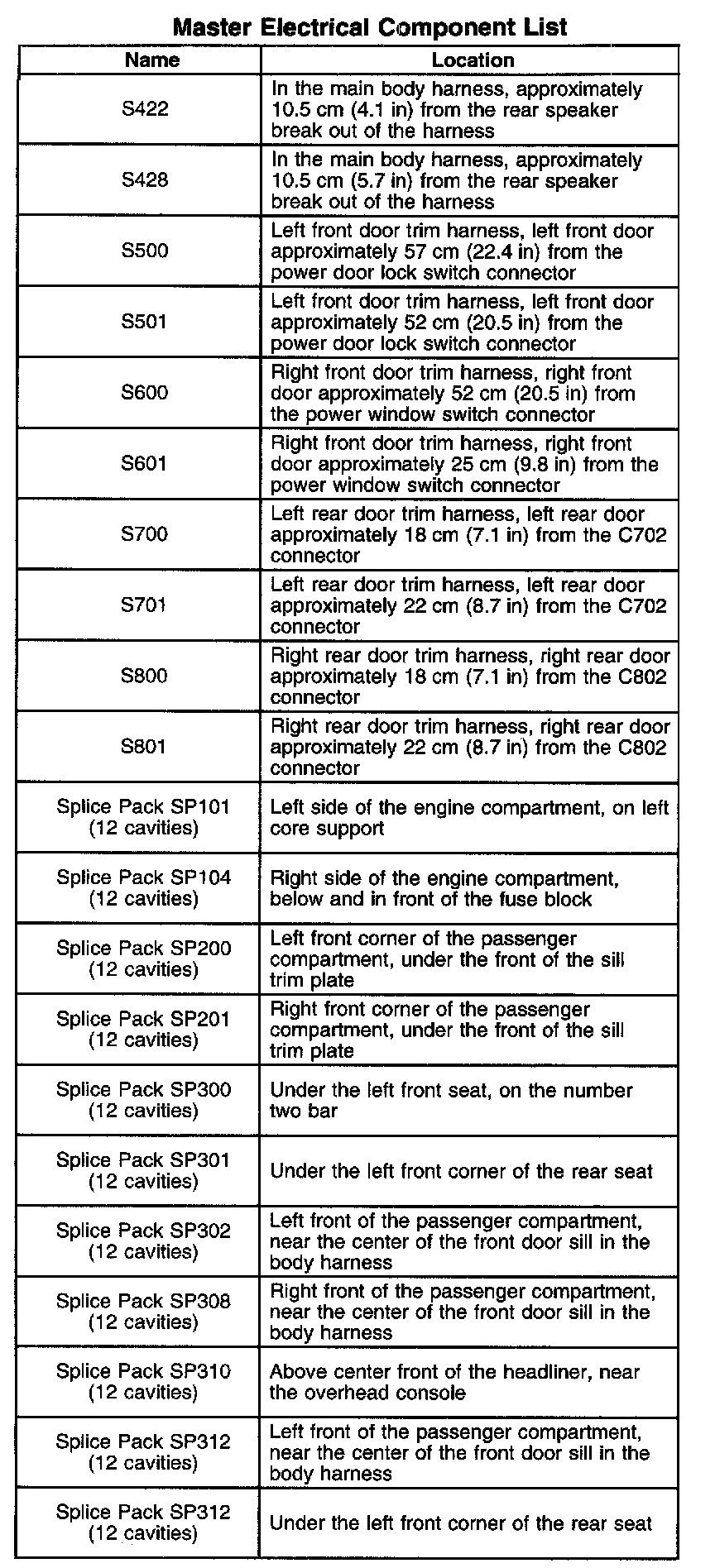

S422 - Splice Pack SP312 (12 Cavities):
Splice Pack SP401 (12 Cavities) - Splice Pack SP402 (12 Cavities):
For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application
RPO Codes
