Door Module: Service and Repair

REMOVAL PROCEDURE

IMPORTANT: This vehicle is equipped with express up, torque sensitive window on the front door windows.

When the battery or the power has been removed from the front door module, the front door module will need to be reprogrammed after power is restored and all repairs are completed.




1. Remove the door trim panel.
2. Disconnect the electrical connectors.

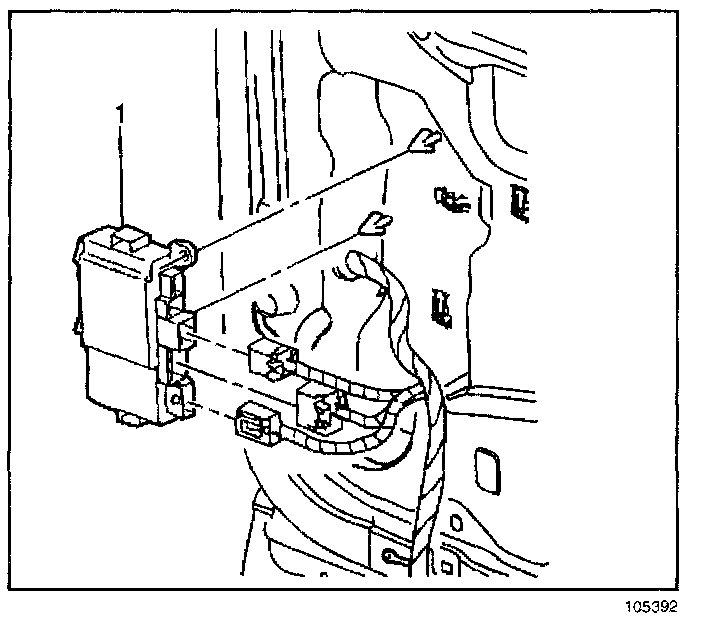

3. Remove the door module (1) by releasing the tabs on the top and the bottom.

INSTALLATION PROCEDURE

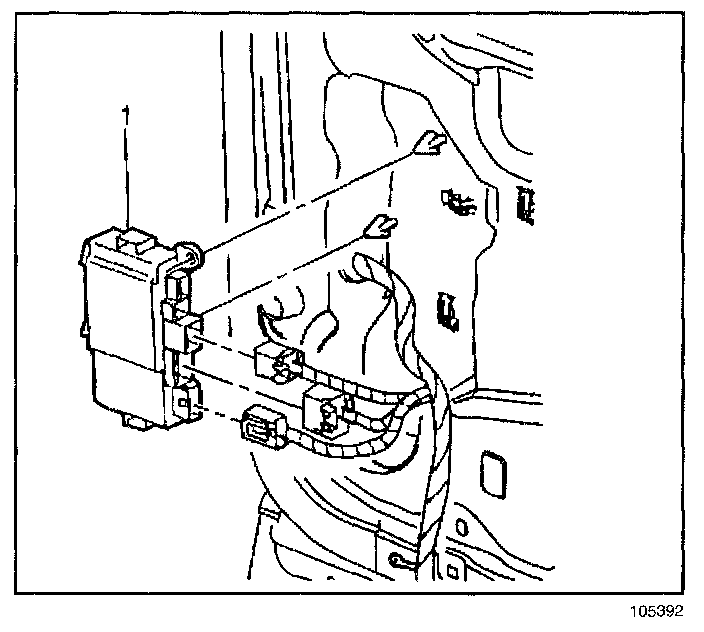

1. Snap the door module (1) to the tabs on the water deflector.
2. Connect the electrical connectors.
3. Install the door trim panel.
4. Reprogram the front door module. Refer to Window Motor Programming - Express Function.
