Inlet Hose

Radiator Hose Replacement - Inlet

Tools Required
- J 38185 Hose Clamp Pliers

Removal Procedure
1. Partially drain the cooling system.

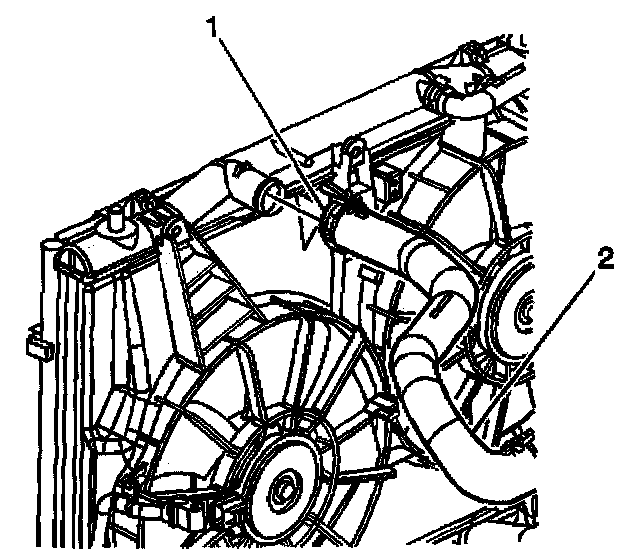

2. Position the J 38185 to the clamp in order to remove the inlet radiator hose (1) from the radiator.
3. Position the J 38185 to the clamp in order to remove the inlet radiator hose (2) from the engine.
4. Remove the inlet radiator hose.



Installation Procedure

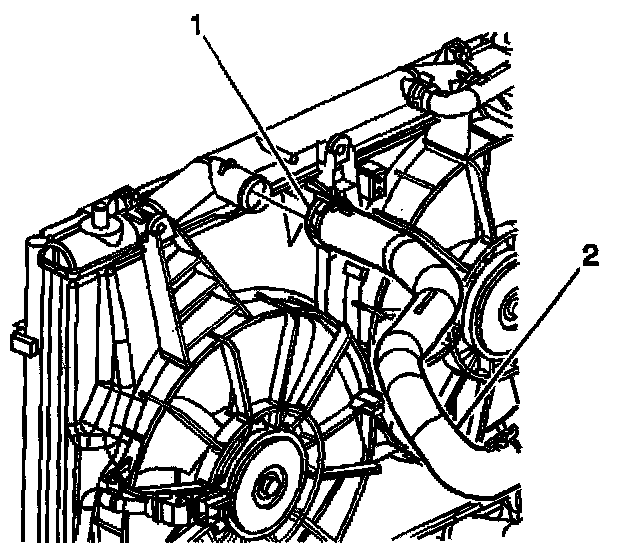

1. Install the inlet radiator hose into the vehicle with the mark in the top position.







2. Position the J 38185 to the clamp in order to connect the inlet radiator hose (2) to the engine.
3. Position the J 37097-A to the clamp in order to connect the inlet radiator hose (1) to the radiator.
4. Fill the cooling system.
