Oil Cooler, Engine

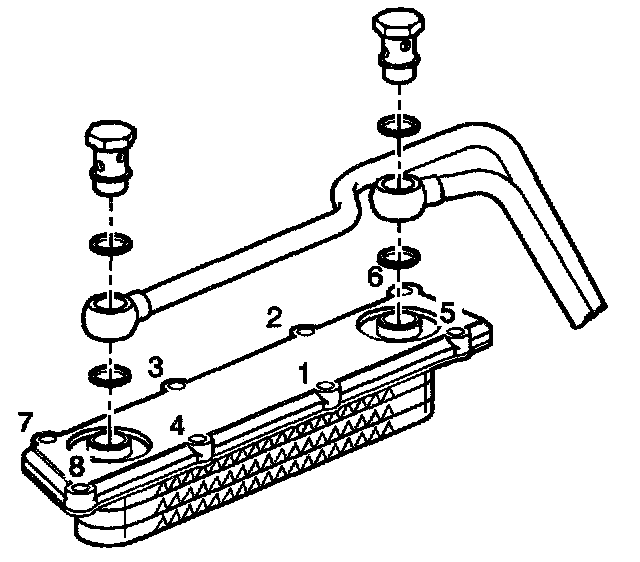

Oil Cooler Cover Bolts Tightening Sequence:
NOTE: Apply thread adhesive GM P/N 12345382 (Canadian P/N 10953489) to the engine oil cooler cover bolts.
Oil cooler cover bolts
20 Nm (15 ft. lbs.)
Oil cooler inlet and outlet nuts
30 Nm (22 ft. lbs.)
Oil cooler pipe fittings
30 Nm (22 ft. lbs.)
